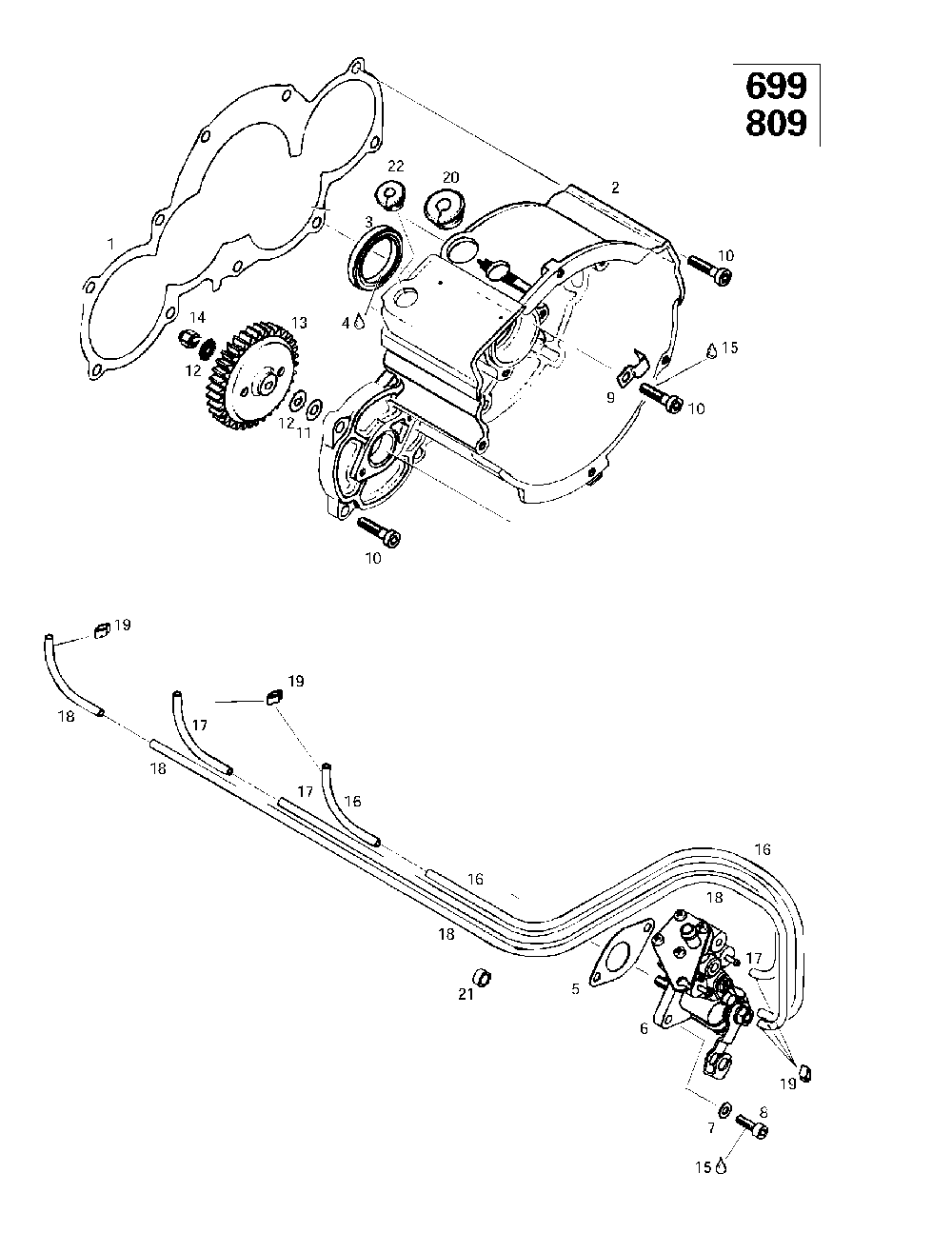

03- ignition housing oil pump (699, 809)

Ski-Doo (Bombardier) Mach Z LT
Ski-Doo (Bombardier)
#oem кодцена
1
420950282
Прокладка
2
420810238
Boitier Alluma.*housing-ignit. Mach 1.
420860967
Passe-cable *grommet-cable Mach Z. Mach Z-lt.
420960285
Passe-cable *grommet-cable Mach Z. Mach Z-lt.
3
420931290
Сальник
4
413707000
Смазка Corning 111
5
420950460
Прокладка
6
420886459
Pompe A Huile *pump-oil Assy. Mach 1.
420886456
Pompe A Huile *pump-oil Assy. Mach Z. Mach Z-lt.
7
420945750
Rondelle-frein *washer-lock#5
8
420640071
Винт M5 X 16
9
420953385
Хомут
10
420941691
Screw-socket Hd.din.6912
11
420945751
Шайба
12
420227150
Шайба
13
420834270
Engrenage Pompe*gear-oil Pump
14
232561414
Гайка с тефлоном
15
293800060
Фиксатор резьбы loctite-243
16
414413800
Шланг
19
420853840
Хомут
420960287
Passe-cable *grommet-cable Mach Z. Mach Z-lt.
21
420960700
Bague Caout. *ring-rubber
420960280
Passe-cable *grommet-cable Mach Z. Mach Z-lt.
420810238
Boitier Alluma.*housing-ignit. Mach Z. Mach Z-lt.
17
414413800
Шланг
18
414413800
Шланг
20
420860967
Passe-cable *grommet-cable Mach 1.
22
420960285
Passe-cable *grommet-cable Mach 1.
