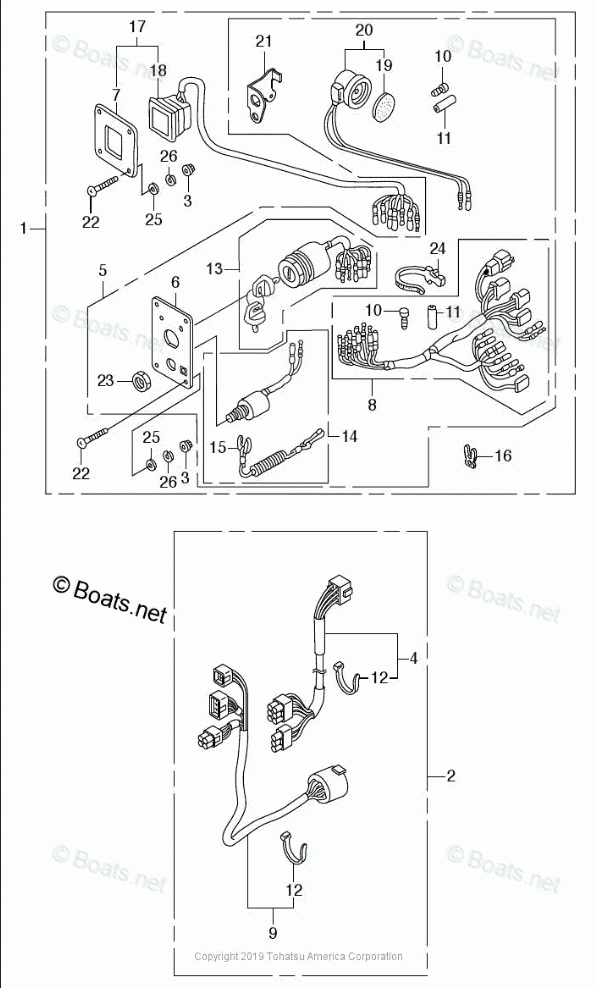

Control Panel (1)

Tohatsu BFT150A
Tohatsu
#oem кодцена
FOP-6-19
H341-38403-672
PLATE, WINKER BUZZER
FOP-6-17
HZZ3-37205-R01
PANEL ASSY, INDICATOR (4-LED)
FOP-6-2
HZZ5-06325-700
Main Engine Harness BFT60-150 (25FT)
FOP-6-13
HZZ3-35100-R12
SW ASSY,COMB
FOP-6-1
HZZ3-06323-R23
PANEL KIT, SWITCH (B) (4-LED)
FOP-6-22
HZW5-90109-000
SCREW,PAN 5X40
FOP-6-2
HZZ5-06325-600
Main Engine Harness BFT60-150 (20FT)
FOP-6-9
HZZ5-32580-800
CABLE ASSY., SWITCH PANEL (30 FT.)
FOP-6-9
HZZ5-32580-700
CABLE ASSY., SWITCH PANEL (25 FT.)
FOP-6-9
HZZ5-32580-600
CABLE ASSY., SWITCH PANEL (20 FT.)
FOP-6-8
HZZ5-32545-000
HARNESS ASSY, SWITCH PANEL
FOP-6-6
HZZ3-32346-R21
PANEL, CONTROL
FOP-6-23
H921-90302-000
NUT, HEX, 16MM
FOP-6-20
HZV5-38410-003
BUZZER, WARNING
FOP-6-14
HZV5-36180-033
SWITCH ASSY, EMERGENCY STOP
FOP-6-11
HZV5-32824-003
PLUG, OUTER CONNECTOR
FOP-6-10
HZV5-32823-003
PLUG, INNER CONNECTOR
FOP-6-16
HZV4-36187-652
LOCK CLIP, EMERGENCY-2-PRONG
FOP-6-15
HZV4-36182-651
LANYARD CORD COMP, EMERGENCY-2-PRONG
FOP-6-26
HCO-94111-05400
WASHER, SPG 5MM
FOP-6-25
HCO-94103-05400
WASHER, PLAIN 5MM
FOP-6-12
H952-32901-770
TIE, CABLE
FOP-6-2
HZZ5-06325-800
Main Engine Harness BFT60-150 (30FT)
