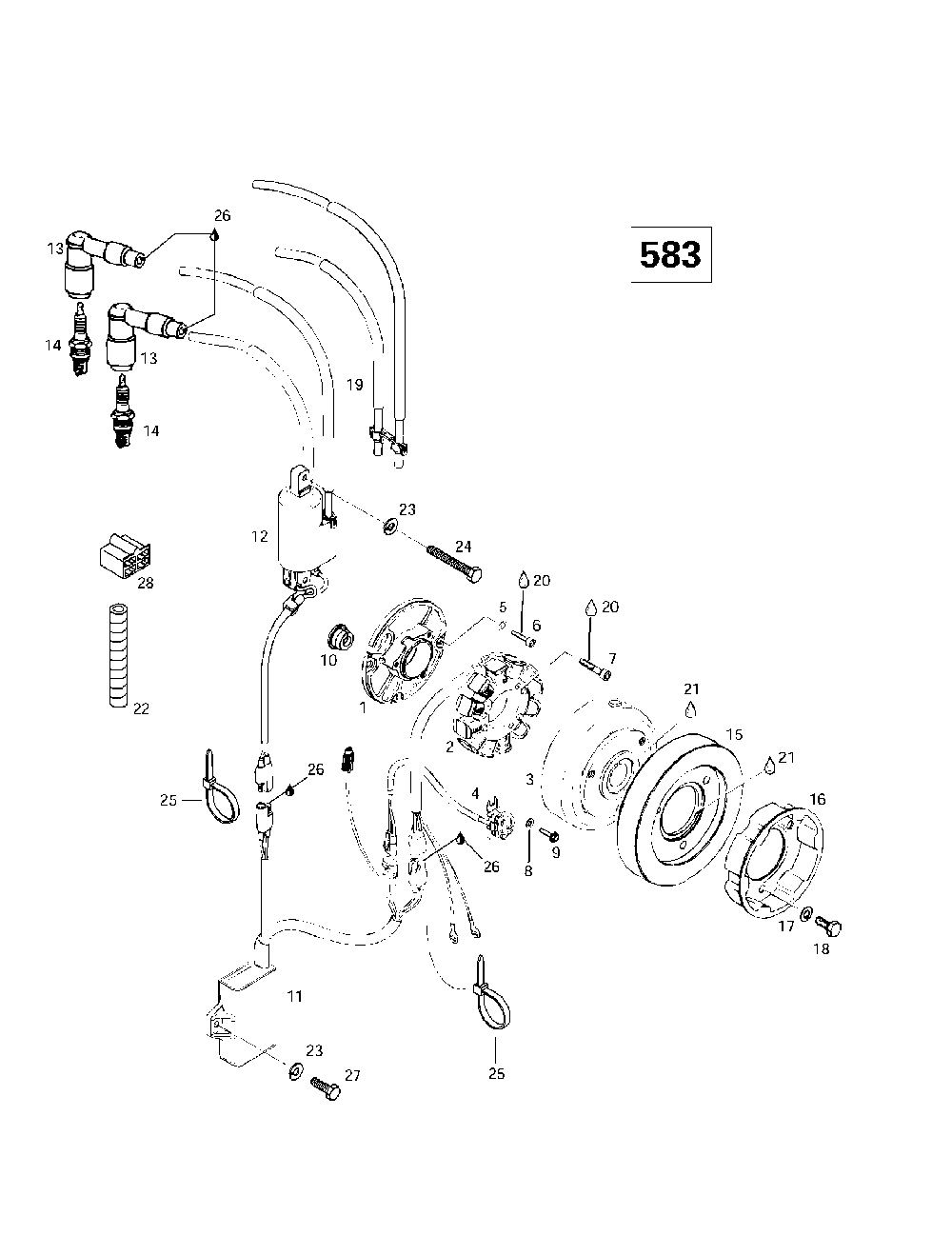

Магнето 12v 220w (583)

Ski-Doo (Bombardier) MX Z 440 F/Z 583/Z 670 1997

oem код

название

цена

420810262

Plateau Armat. *plate-armat. Mx Z 583.

410918600

Magneto Gen. *magneto-gen. Includes 2 - 4. Mx Z 583.

410919000

Plaque Reacteur*plate-stator A Mx Z 583.

410919100

Volant Moteur *flywheel Mx Z 583.

410916700

Capteur Ass. *pickup-assy. Mx Z 583.

420945750

Rondelle-frein *washer-lock#5 Mx Z 583.

420941540

Screw-allen M5x20 Din.6912 Mx Z 583.

420840886

Screw-cyl.m6x30 Din 6912 Mx Z 583.

420827800

Rondelle *washer Mx Z 583.

420941925

Screw-tapping M5 X 16 Mx Z 583.

420960288

Passe-cable *grommet-cable Mx Z 583.

278000631

Cosse Male *terminal-male Mx Z 583.

278000632

Cosse Femelle *terminal-femal Mx Z 583.

409206900

Logement Male *housing-male Mx Z 583.

409207100

Verrou Femelle *lock-female Mx Z 583.

409207200

Verrou Femelle *lock-female Mx Z 583.

409207300

.logement Femel.*housing-female Mx Z 583.

409207400

Logement Femel.*housing-female Mx Z 583.

409207500

Verrou Male *lock-male Mx Z 583.

415085300

Module Allumage*module-ignition Mx Z 583.

410920500

Bobine Allumage*coil-ignition Mx Z 583.

414569200

Prot.bougie *prot-spark Plu Mx Z 583.

414961100

Bougie Br9es *spark Plug Mx Z 583.

420866759

Contrepoids *flywheel Mx Z 583.

420852411

Poulie Demarrag*pull.-starting Mx Z 583.

420945752

Washer-lock Din.128 Mx Z 583.

207182044

Screw-hex.cap Din.933 Mx Z 583.

278002198

Fil Bougie *wire-spark Plug Mx Z 583.

293800060

Loctite 243 *loctite-243 Mx Z 583.

413711400

Loctite 648 *loctite-648 Mx Z 583.

410904000

Gaine Spirale *tubing-spiral Mx Z 583.

234161471

Washer-lock Black Din.127b Mx Z 583.

207162044

Screw-hex.cap Din.933 Mx Z 583.

414115200

Tie-rap 180 Mm Mx Z 583.

413706100

Graisse Lith. *grease Lith. Mx Z 583.

207161644

Screw-hex.cap Din.933 Mx Z 583.

409204900

Logement Femel.*housing-female Mx Z 583.
