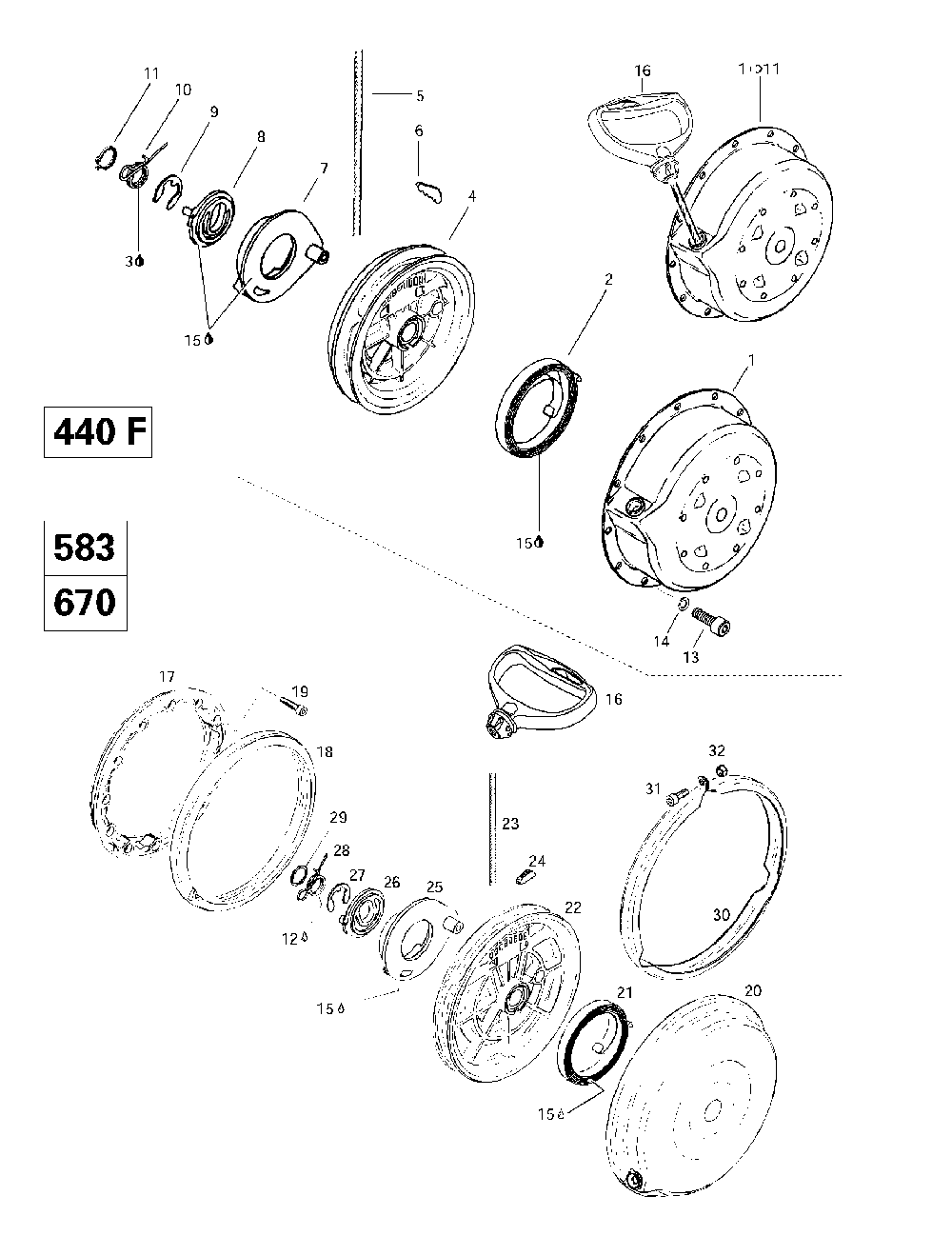

Ручной стартер

Ski-Doo (Bombardier) MX Z 440 F/Z 583/Z 670 1997
Ski-Doo (Bombardier)
#oem кодцена
1
420888121
Demar.rappel *starter-rewind Includes 1 - 11. Mx Z 440f.
1
420910068
Boitier Demar. *housing-starter Mx Z 440f.
2
420939115
Ressort Rappel *spring-rewind Mx Z 440f.
4
420852283
Poulie Demarrag*sheave-rope (pulley) Mx Z 440f.
5
412500200
Corde Demarreur*rope-starter Mx Z 440f.
6
420852070
Coin *clamp-key Mx Z 440f.
7
420852296
Cliquet *pawl Mx Z 440f.
8
420852302
Barrure Cliquet*lock-pawl Mx Z 440f.
9
420845300
Circlip *circlip Mx Z 440f.
10
420938986
Ressort D Arret*spring-pawl Mx Z 440f.
11
420945770
Bague D Arret *ring-lock Mx Z 440f.
13
420241236
Screw-socket M6 X 16 Mx Z 440f.
14
420945751
Washer-lock Din.128 Mx Z 440f.
15
293550004
Смазка диэлектрическая
16
572084400
Ручка стартера
17
420887448
Demarreur *rewind Starter Includes 17 - 32. Mx Z 583. Mx Z 670.
17
420810860
Flasque Con. *flange-con. Mx Z 583. Mx Z 670.
18
420860950
Bague Batteur *ring-damper Mx Z 583. Mx Z 670.
19
205062544
Screw-socket Hd.din.912 Mx Z 583. Mx Z 670.
20
205062044
Screw-socket Hd.din.912 Includes 20 - 29. Mx Z 583. Mx Z 670.
20
420944310
Washer-distance 6.7x14x3 Includes 20 - 29. Mx Z 583. Mx Z 670.
22
420852287
Poulie Demarrag*sheave-rope Mx Z 583. Mx Z 670.
30
420851330
Bride *clamp Mx Z 583. Mx Z 670.
32
232561414
Nut-stop Elastic Din.985 Mx Z 583. Mx Z 670.
8
420852301
Barrure Cliquet*lock-pawl Mx Z 440f.
20
420887448
Demarreur *rewind Starter Includes 20 - 29. Mx Z 583. Mx Z 670.
21
420939115
Ressort Rappel *spring-rewind Mx Z 583. Mx Z 670.
23
412500200
Corde Demarreur*rope-starter Mx Z 583. Mx Z 670.
24
420852070
Coin *clamp-key Mx Z 583. Mx Z 670.
25
420852296
Cliquet *pawl Mx Z 583. Mx Z 670.
26
420852301
Barrure Cliquet*lock-pawl Mx Z 583. Mx Z 670.
27
420845300
Circlip *circlip Mx Z 583. Mx Z 670.
28
420938986
Ressort D Arret*spring-pawl Mx Z 583. Mx Z 670.
29
420945770
Bague D Arret *ring-lock Mx Z 583. Mx Z 670.
31
420241236
Screw-socket M6 X 16 Mx Z 583. Mx Z 670.
