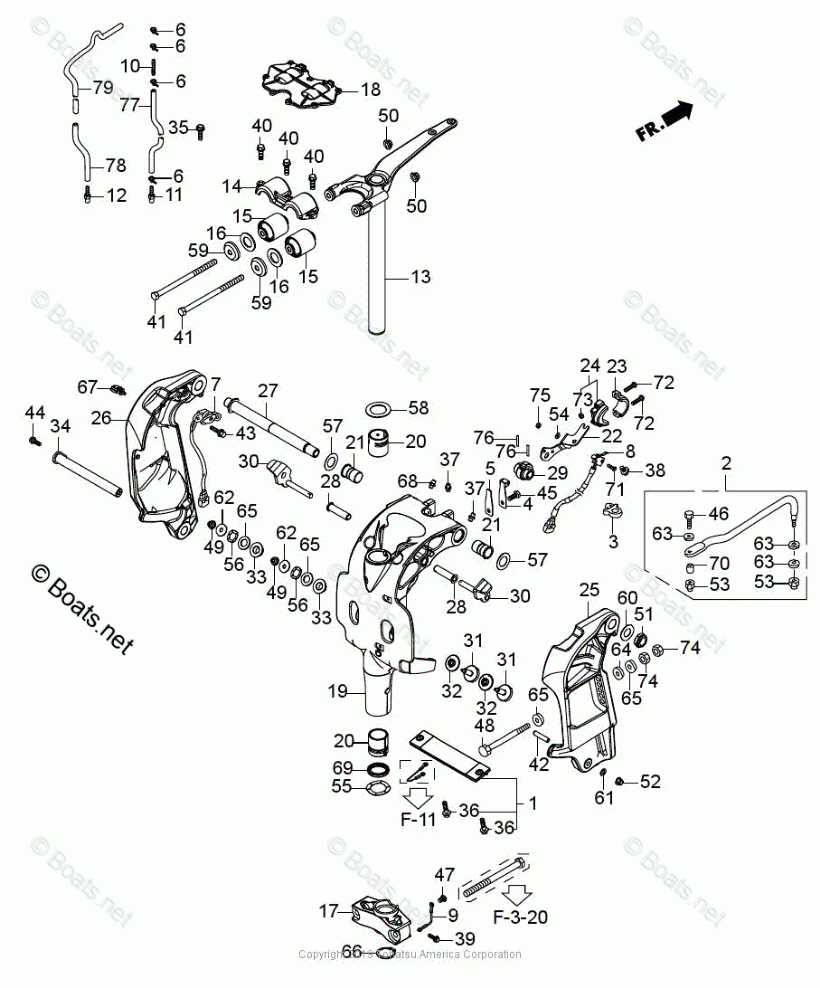

Stern Bracket + Swivel Case

Tohatsu BFT250D
Tohatsu
#oem кодцена
F-10-67
H763-90681-A01
CLIP, WIRE HARN
F-10-49
HZY1-90205-000
NUT, SELF-LOCK, 6MM
F-10-52
HZW4-90306-003
NUT, FLANGE, 10MM
F-10-54
HZW4-90401-000
WASHER, PLAIN, 4MM
F-10-50
HZW5-90302-003
NUT, FLANGE, 12MM
F-10-36
HZW9-90009-000
BOLT, FLANGE, 6X23
F-10-38
HZW9-90102-000
BOLT, FLANGE, 6X12
F-10-39
HZW9-90103-010
BOLT, FLANGE, 6X12
F-10-43
HZW9-90105-000
BOLT, FLANGE, 6X20
F-10-48
HZX2-90129-000
BOLT, HEX, 12 X 130
F-10-2
HZY3-06532-U00
DRAG LINK ASSY, STEERING
F-10-68
HZV7-90951-010
NIPPLE, GREASE
F-10-7
HZY3-35660-003
SENSOR ASSY, TRIM ANGLE
F-10-41
HZY3-90104-010
BOLT, HEX
F-10-46
HZY3-90117-000
BOLT, 3/8 X 24 UNF
F-10-15
HZY3-50151-000
MOUNT COMP., UPPER RUBBER
F-10-16
HZY3-50153-000
RUBBER, UPPER MOUNT STOPPER
F-10-13
HZVL-50100-900
FRAME COMP,MOUNT
F-10-19
HZVL-50201-900ZA
CASE, SWIVEL
F-10-17
HZY3-50161-000ZD
HOUSING, LOWER CENTER MOUNTING
F-10-20
HZY3-50211-000
LINER, SWIVEL CASE
F-10-1
HZW1-06411-020
METAL KIT, ANODE
F-10-69
HZV5-91256-003
OIL SEAL (39.5X52X6)
F-10-61
H921-90511-000
WASHER, PLAIN, 10MM
F-10-10
HZV5-41171-000
NIPPLE, END
F-10-71
HCO-93500-040144J
SCREW, PAN 4X14
F-10-72
HCO-93500-05020-4J
SCREW, PAN 5X20
F-10-73
HCO-94001-05490-0S
NUT, HEX 5MM
F-10-74
HCO-94001-12490-0S
NUT, HEX 12MM
F-10-75
HCO-94002-04490-0S
NUT, HEX 4MM
F-10-78
HCO-95005-5025030
TUBE 5X250
F-10-79
HCO-95005-5034030
TUBE 5X340
F-10-6
HKM3-32161-003
BAND WIRE
F-10-63
HZV4-90514-000
WASHER, 10MM
F-10-11
HZV5-41172-000
NIPPLE, SENSOR
F-10-66
HZV5-90651-000
CIRCLIP, 39MM
F-10-12
HZV5-41172-000
NIPPLE, SENSOR
F-10-47
HZV5-90119-000
SCREW, PAN, 6X8
F-10-51
HZV5-90304-013
NUT, SELF-LOCK(7/8-14UNF)
F-10-53
HZV5-90307-003
NUT, SELF LOCK, 3/8-24 UNF
F-10-55
HZV5-90501-000
WAVE WASHER, 40MM
F-10-57
HZV5-90502-000
WASHER, WAVE, 26MM
F-10-58
HZV5-90504-000
WASHER, 34MM
F-10-64
HZV5-90552-000
WASHER, PLAIN, 12MM
F-10-65
HZV5-90559-000
WASHER, PLAIN 12MM
F-10-8
HZZ3-35745-743
SW ASSY,TILT LIMI BFT200,225,250D
