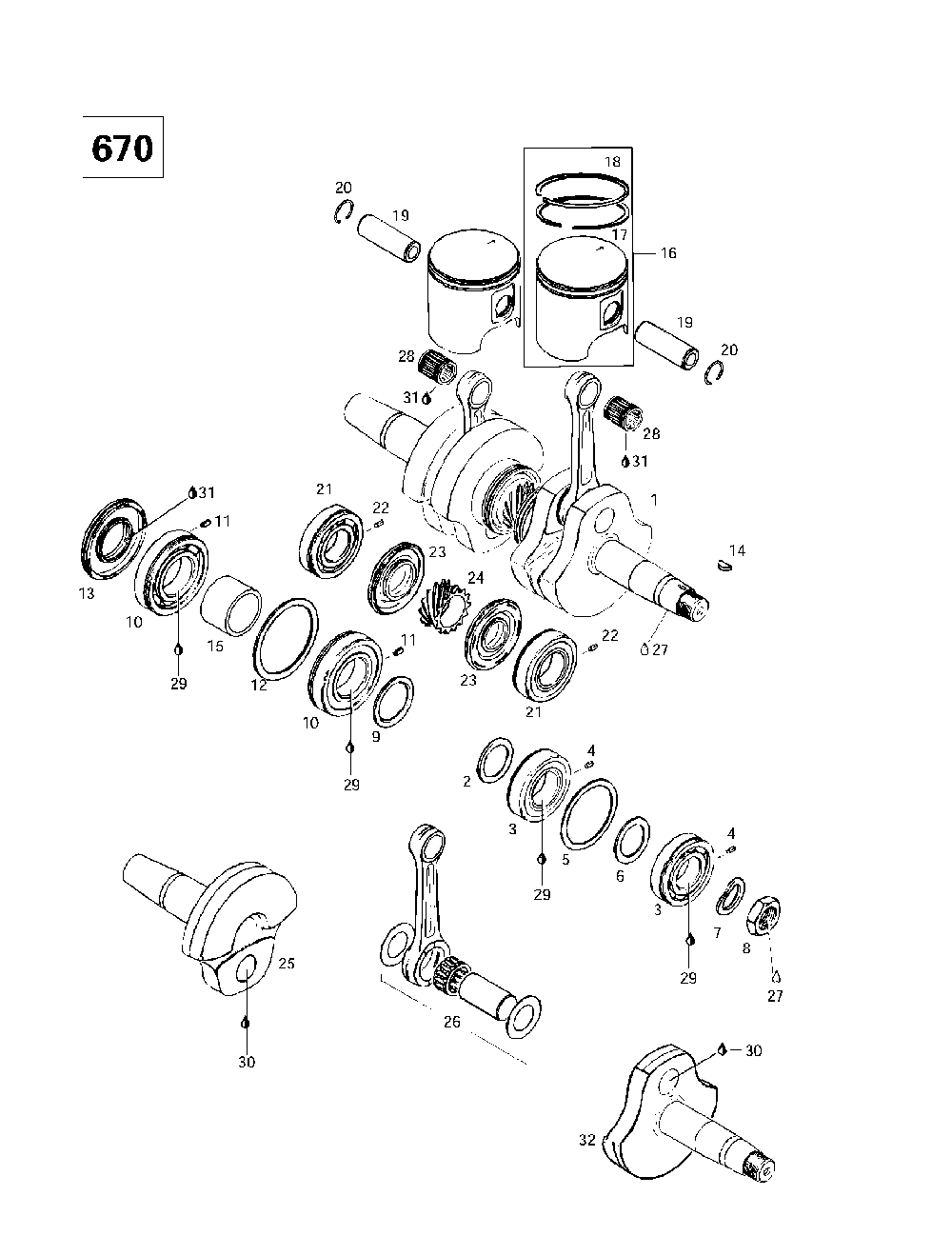

01- crankshaft and pistons (670)

Ski-Doo (Bombardier) MX Z 440 F/Z 583/Z 670 1997
Ski-Doo (Bombardier)
#oem кодцена
1
420887980
Vilebrequin *crankshaft Includes 1 - 15. Mx Z 670.
2
420827445
Bague Ecart. *ring-distance Mx Z 670.
3
420832538
Roulement Bille*ball Bearing Includes 3 - 4. Mx Z 670.
4
420929972
Goupille Ressor*pin-roll Mx Z 670.
5
420427684
Rondelle Ajus *washer-adj. Mx Z 670.
6
420827050
Disque Retenue *disk-retaining Mx Z 670.
7
420945759
Rondelle-frein *washer-lock 22 Mx Z 670.
8
420842234
Nut-hex.m22 X 1, 5 Mx Z 670.
9
420827760
Bague Ecart. *ring-distance Mx Z 670.
10
420832573
Roulement Bille*ball Bearing Includes 10 - 11. Mx Z 670.
12
420927710
Disque Retenue *disk-retaining Mx Z 670.
13
420831952
Anneau Etanche *seal-oil Mx Z 670.
14
420246015
Clavette *key-woodruff Mx Z 670.
15
420847684
Douille *sleeve-dista. Mx Z 670.
16
420887612
Piston 77, 90 *piston-77, 90 Includes 16 - 18. Mx Z 670.
420887613
Piston 78, 15 *piston-78, 15 Mx Z 670.
17
420815025
Segment R 78.0 *ring-r 78.0 Mx Z 670.
18
420815090
Segment Semi-tr*ring-semi Trap Mx Z 670.
420815091
Segment Semi-tr*ring-semi Trap Mx Z 670.
19
420916371
Axe De Piston *pin-gudgeon Mx Z 670.
20
420845100
Circlip #20 *circlip-#20 Mx Z 670.
23
420831990
Anneau Etanche *seal-oil Mx Z 670.
24
420935748
Engrenage Cent.*gear-central Mx Z 670.
25
420818704
Vilebrequin Pto*crankshaft-pto Mx Z 670.
26
420887989
Tige Rep.mag. *rod-repair Mag. Mx Z 670.
420887988
Tige Rep.pto. *rod-repair Pto. Mx Z 670.
27
293800060
Loctite 243 *loctite-243 Mx Z 670.
28
420832428
Roul.aiguille *needle Bearing Mx Z 670.
30
413711400
Loctite 648 *loctite-648 Mx Z 670.
31
413707000
Dow Corning 111*dow Corning 111 Mx Z 670.
32
420818733
Demi-vileb.mag.*half-crank Mag Mx Z 670.
28
420832445
Roul.aiguille *needle Bearing Mx Z 670.
32
420818732
Demi-vileb.mag.*half-crank Mag Mx Z 670.
8
420842239
Ecrou*hex Nut M22x1, 5 Mx Z 670.
11
420929972
Goupille Ressor*pin-roll Mx Z 670.
21
420832538
Roulement Bille*ball Bearing Includes 21 - 22. Mx Z 670.
22
420929972
Goupille Ressor*pin-roll Mx Z 670.
26
420887039
Tige Rep.mag. *rod-repair Mag. Mx Z 670.
