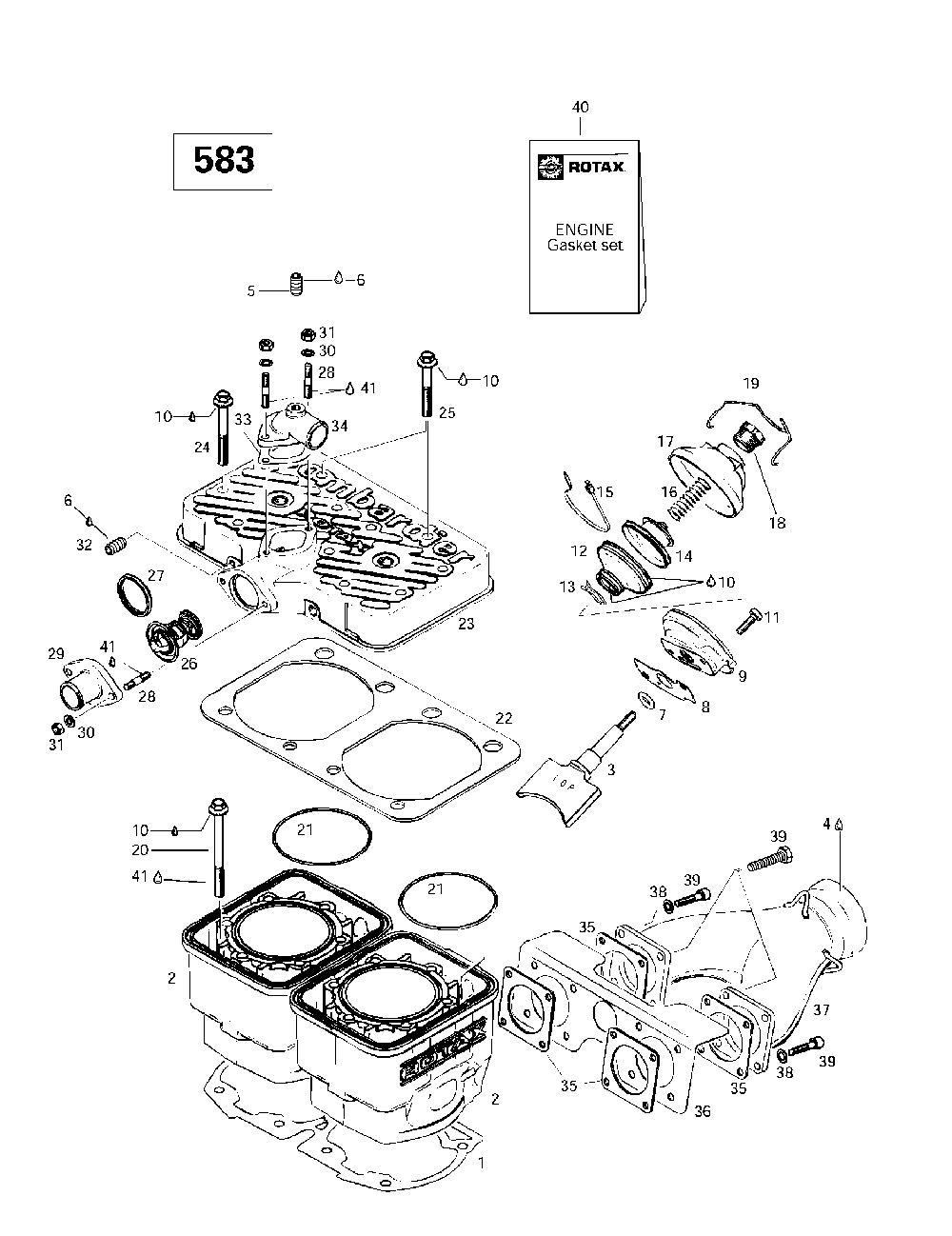

Цилиндр, выпускной коллектор (583)

Ski-Doo (Bombardier) MX Z 440 F/Z 583/Z 670 1997
Ski-Doo (Bombardier)
#oem кодцена
1
420931185
Joint *gasket Mx Z 583.
2
420923068
Cylindre + Chem*cylinder-w.sle Mx Z 583.
3
420854310
Soupape Echap. *valve-exhaust Mx Z 583.
5
420240480
Screw-plug 1/8-27 Npt Mx Z 583.
7
420430110
Joint Torique *o Ring Mx Z 583.
8
420230256
Joint *gasket Mx Z 583.
9
420253275
Boitier *housing-valve Mx Z 583.
10
413707000
Dow Corning 111*dow Corning 111 Mx Z 583.
11
420241236
Screw-socket M6 X 16 Mx Z 583.
12
420260721
Manchon *bellows Mx Z 583.
13
420838190
Bride *clamp Mx Z 583.
14
420854449
Soupape Echapp.*valve-exhaust Mx Z 583.
15
420251920
Tie Rap *tie-rap 279x3, 6mm Mx Z 583.
16
420239948
Ressort *spring Mx Z 583.
17
420911552
Couvercle Soup.*cover-valve Mx Z 583.
19
420838083
Pince A Ressort*clip-spring Mx Z 583.
20
420440366
Screw-hex Collar M8 X 90 Mx Z 583.
21
293300026
Joint Torique *o-ring Mx Z 583.
22
420850560
Joint Caout. *seal-rubber Mx Z 583.
23
420923053
Culasse Red Vip*head-cyl.red V Mx Z 583.
24
420841306
Screw-hex Collar M8x65 Sw 11 Mx Z 583.
25
420941627
Collar-hex. Screw M8x56, 5 Mx Z 583.
26
420922519
Thermostat *thermostat Mx Z 583.
27
420931270
Bague Etanche *ring-sealing Mx Z 583.
28
420941160
Goujon M6x18/9 *stud-m6x18/9 Mx Z 583.
29
420922025
Raccord Sortie *bent Outlet Socket Mx Z 583.
30
420945751
Washer-lock Din.128 Mx Z 583.
31
232061414
Nut-hexagonal Din.934 Mx Z 583.
33
420850338
Joint *gasket Mx Z 583.
34
420922062
Raccord Sortie *bent Outlet Socket Mx Z 583.
35
420850552
Joint *gasket Mx Z 583.
37
420973984
Collet Echapp. *manifold-exh. Mx Z 583.
38
234161471
Washer-lock Black Din.127b Mx Z 583.
39
205062544
Screw-socket Hd.din.912 Mx Z 583.
732601230
Screw-hexagonal M6 Mx Z 583.
40
420997805
Ens.joint Etanc*kit-gasket Mx Z 583.
41
293800060
Loctite 243 *loctite-243 Mx Z 583.
18
420241221
Vis Ajustement *screw-adjuster Mx Z 583.
32
420240480
Screw-plug 1/8-27 Npt Mx Z 583.
36
420911552
Couvercle Soup.*cover-valve Mx Z 583.
