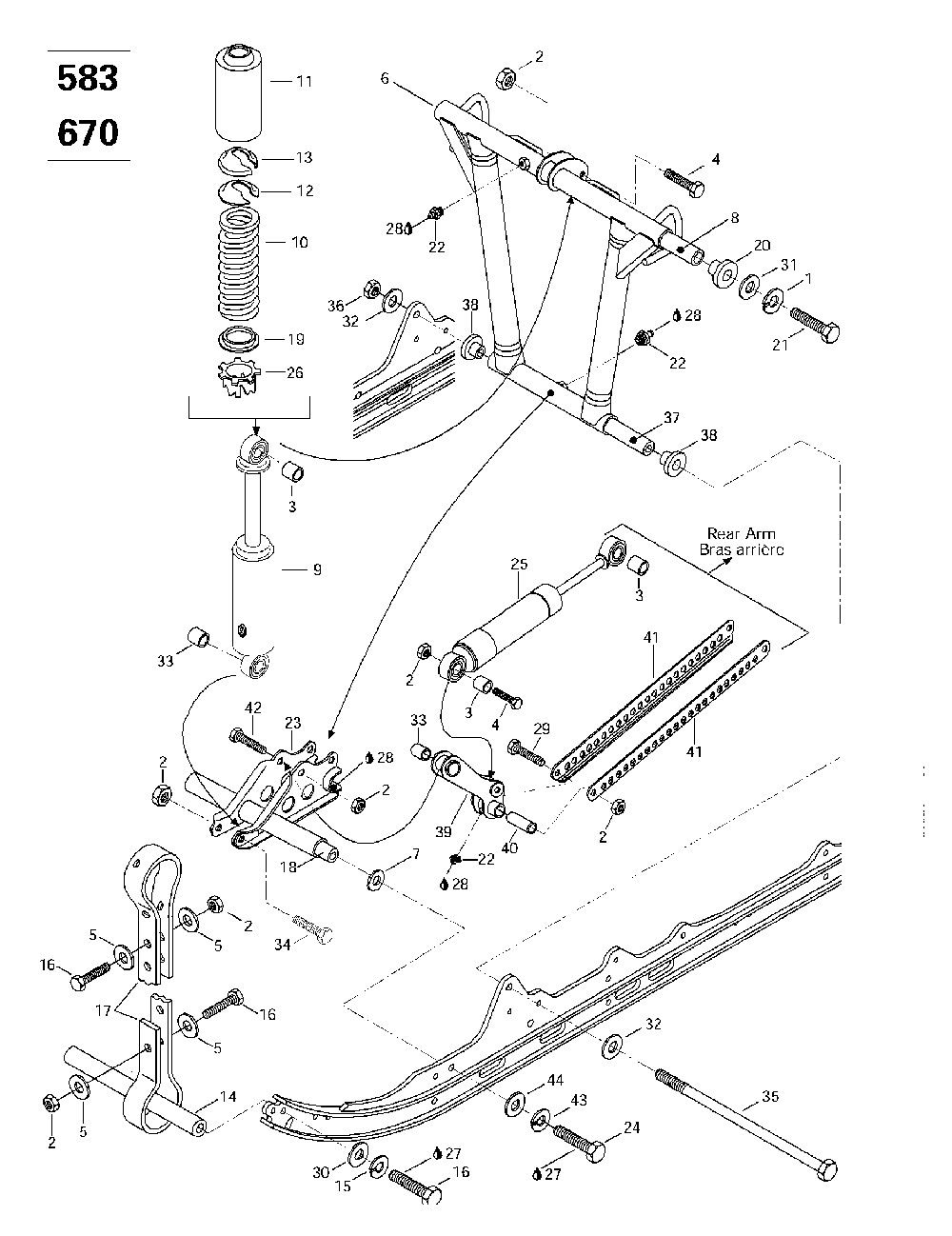

08- front arm, rear suspension (583, 670)

Ski-Doo (Bombardier) MX Z 440 F/Z 583/Z 670 1997
Ski-Doo (Bombardier)
#oem кодцена
1
234100602
Washer-lock Spring Din.128a-a2 Mx Z 583. Mx Z 670.
2
232581414
Nut-stop Elastic Din.985 Mx Z 583. Mx Z 670.
3
414936000
Coussinet *cushion Mx Z 583. Mx Z 670.
4
207084044
Screw-hex.cap Din.931 Mx Z 583. Mx Z 670.
5
517078700
Rondelle *washer Mx Z 583. Mx Z 670.
6
503171100
Bras Avant P. *arm-front Paint Mx Z 583. Mx Z 670.
7
503007900
Rondelle Trempe*washer-hard Mx Z 583. Mx Z 670.
8
503190387
Arbre *shaft Mx Z 583. Mx Z 670.
9
503188913
Amort. Cent. *shock-center Mx Z 583. Mx Z 670.
9
505070150
Came 45 Degres *cam 45 Degres Mx Z 583. Mx Z 670.
10
415070300
Ressort *spring Mx Z 583. Mx Z 670.
11
503188930
Protecteur *protector Mx Z 583. Mx Z 670.
12
503191610
Capuchon *cap Mx Z 583. Mx Z 670.
13
706200881
Butee Ressort *spring Stopper Mx Z 583. Mx Z 670.
14
503151600
Axe *axle Mx Z 583. Mx Z 670.
15
234181401
Washer-lock Din.127b Mx Z 583. Mx Z 670.
16
207183044
Screw-hex.cap Din.933 Mx Z 583. Mx Z 670.
17
503190986
Courroie Arret *stopper Strap Mx Z 583. Mx Z 670.
18
503174800
Arbre *shaft Mx Z 583. Mx Z 670.
19
517184300
Guide Ressort *guide-spring Mx Z 583. Mx Z 670.
20
503189324
Coussinet *bushing Mx Z 583. Mx Z 670.
21
207006044
Screw-hex.cap Iso.4014 Mx Z 583. Mx Z 670.
22
408200700
Graisseur *grease Fitting Mx Z 583. Mx Z 670.
23
503158300
Sup.cent.amor.s*sup.-shock Wel Mx Z 583. Mx Z 670.
24
207123544
Screw-hex.cap Iso.4017 Mx Z 583. Mx Z 670.
25
414894700
Amort. Arr. *shock-rear Mx Z 583. Mx Z 670.
27
293800005
Loctite 271 *loctite-271 Mx Z 583. Mx Z 670.
28
413706100
Graisse Lith. *grease Lith. Mx Z 583. Mx Z 670.
29
207087544
Screw-hex.cap Din.931 Mx Z 583. Mx Z 670.
30
234081410
Washer-flat Din.125a Mx Z 583. Mx Z 670.
31
234001410
0asher-flat Din.125a Mx Z 583. Mx Z 670.
32
234021410
Washer-flat Din.125a Mx Z 583. Mx Z 670.
33
414917900
Coussinet *cushion Mx Z 583. Mx Z 670.
34
207085544
Screw-hex.cap Din.931 Mx Z 583. Mx Z 670.
35
503140800
Boulon Hex. *bolt-hex. Mx Z 583. Mx Z 670.
36
232521414
Nut-stop Elastic Din.985 Mx Z 583. Mx Z 670.
37
207226044
Screw-hex.cap Iso.4014 S.grip Mx Z 583. Mx Z 670.
37
503189276
Rondelle *washer Mx Z 583. Mx Z 670.
37
503189313
Arbre *shaft Mx Z 583. Mx Z 670.
38
503188940
Coussinet *cushion Mx Z 583. Mx Z 670.
39
503158500
Levier *lever Mx Z 583. Mx Z 670.
40
503158600
Axe Barre Accou*shaft-tie Rod Mx Z 583. Mx Z 670.
41
503158700
Barre Accoup. *rod-tie Mx Z 583. Mx Z 670.
42
207085044
Screw-hex.cap Din.931 Mx Z 583. Mx Z 670.
43
234120602
Washer-lock Spring Din.128a-a2 Mx Z 583. Mx Z 670.
26
505070150
Came De Reglage*adjuster Cam Mx Z 583. Mx Z 670.
44
234021410
Washer-flat Din.125a Mx Z 583. Mx Z 670.
