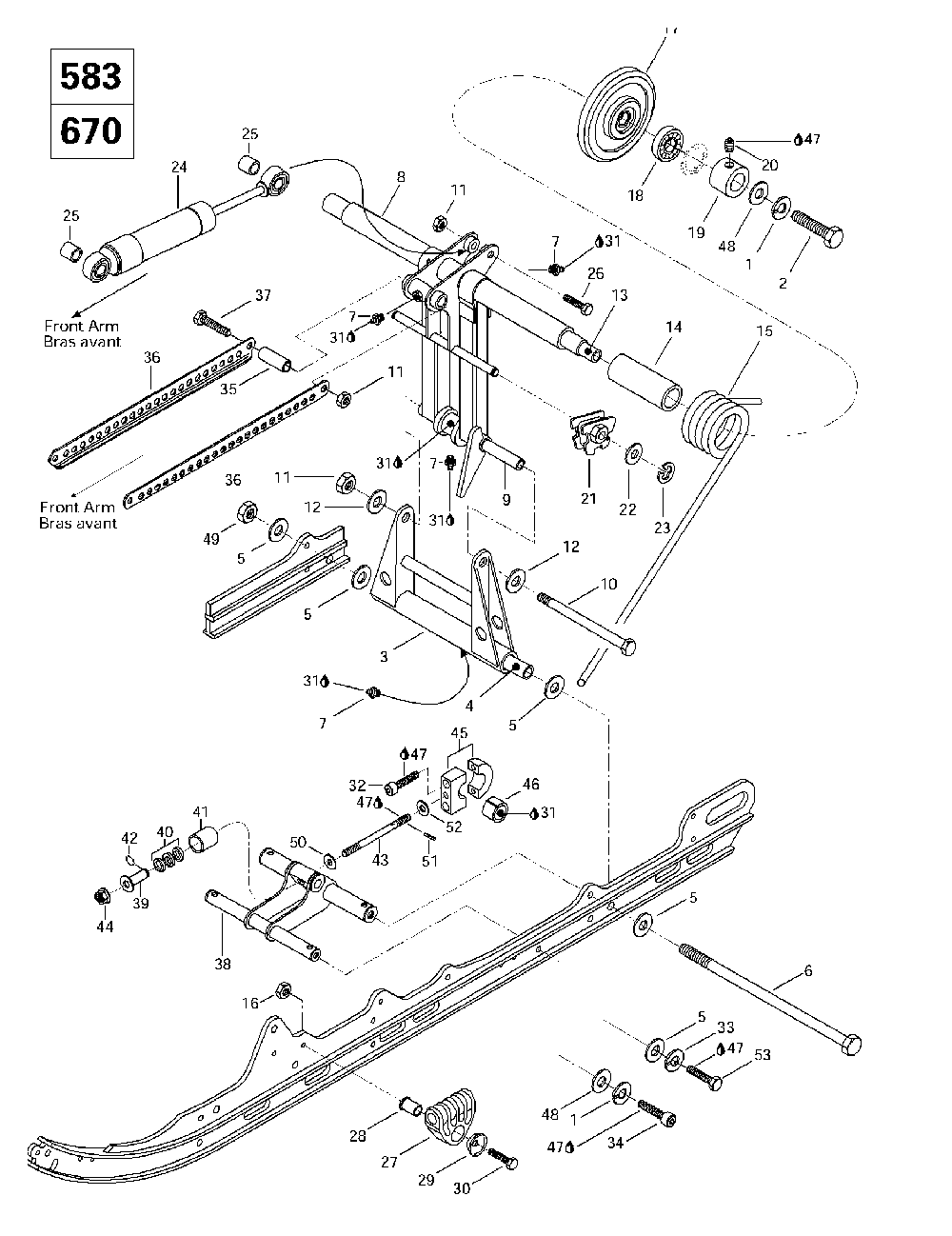

08- rear arm, rear suspension (583,670)

Ski-Doo (Bombardier) MX Z 440 F/Z 583/Z 670 1997
Ski-Doo (Bombardier)
#oem кодцена
1
234100602
Washer-lock Spring Din.128a-a2 Mx Z 583. Mx Z 670.
2
207103544
Screw-hex.cap Iso.4017 Mx Z 583. Mx Z 670.
3
503191372
Jumelle Peinte *arm-pivot P. Mx Z 583. Mx Z 670.
4
503154703
Axe Inf. Jumel.*axle-piv.lower Mx Z 583. Mx Z 670.
5
224081201
Washer-flat Mx Z 583. Mx Z 670.
6
732601198
Boulon 248mm *bolt 248mm Mx Z 583. Mx Z 670.
7
408200700
Graisseur *grease Fitting Mx Z 583. Mx Z 670.
8
503188961
Bras Arriere *arm-rear Mx Z 583. Mx Z 670.
9
503144300
Axe Sup. Jumel.*axle-piv.upper Mx Z 583. Mx Z 670.
10
732601197
Boulon Court *bolt-short Mx Z 583. Mx Z 670.
11
232581414
Nut-stop Elastic Din.985 Mx Z 583. Mx Z 670.
12
234081410
Washer-flat Din.125a Mx Z 583. Mx Z 670.
13
503168700
Axe Transv.arr.*shaft-cross Rr Mx Z 583. Mx Z 670.
14
572080700
Douille *bushing Mx Z 583. Mx Z 670.
15
414943500
Ressort Dr.pein*spring-rh.p. Mx Z 583. Mx Z 670.
414943600
Ressort Ga.pein*spring-lh.p. Mx Z 583. Mx Z 670.
16
232561414
Nut-stop Elastic Din.985 Mx Z 583. Mx Z 670.
17
503189658
Roue 155 *wheel-155 Includes 17 - 18. Mx Z 583. Mx Z 670.
18
293350055
Ball Bearing Mx Z 583. Mx Z 670.
19
503168800
Bague D Appui *ring-retaining Mx Z 583. Mx Z 670.
21
572030800
Came Reglage Ga*cam-adjust.lh. Mx Z 583. Mx Z 670.
572030900
Came Reglage Dr*cam-adjust.rh. Mx Z 583. Mx Z 670.
22
234001410
0asher-flat Din.125a Mx Z 583. Mx Z 670.
23
371907100
Circlip "e" *circlip-"e" Mx Z 583. Mx Z 670.
24
414894700
Amort. Arr. *shock-rear Mx Z 583. Mx Z 670.
25
414936000
Coussinet *cushion Mx Z 583. Mx Z 670.
26
207085044
Screw-hex.cap Din.931 Mx Z 583. Mx Z 670.
27
503189657
Support Ressort*support-spring Mx Z 583. Mx Z 670.
28
503152700
Axe Guide Ress.*axle-guide Spring Mx Z 583. Mx Z 670.
29
517041700
Rondelle Retenu*washer-retaine Mx Z 583. Mx Z 670.
30
207064544
Screw-hex.cap Din.931 Mx Z 583. Mx Z 670.
31
413706100
Graisse Lith. *grease Lith. Mx Z 583. Mx Z 670.
32
205083044
Screw-socket Hd.din.912 Mx Z 583. Mx Z 670.
33
234181401
Washer-lock Din.127b Mx Z 583. Mx Z 670.
34
205003544
Screw-socket Hd.din.912 Mx Z 583. Mx Z 670.
35
503158600
Axe Barre Accou*shaft-tie Rod Mx Z 583. Mx Z 670.
36
503158700
Barre Accoup. *rod-tie Mx Z 583. Mx Z 670.
37
207087544
Screw-hex.cap Din.931 Mx Z 583. Mx Z 670.
38
503171900
Attache Soudee *bracket-weld Mx Z 583. Mx Z 670.
39
503172900
Douille Soudee *bushing-weld. Mx Z 583. Mx Z 670.
40
570049600
Butee Caout. *stopper-rubber Mx Z 583. Mx Z 670.
41
503103600
Coupole *cup Mx Z 583. Mx Z 670.
42
371910700
Circlip *circlip Mx Z 583. Mx Z 670.
44
233201414
Nut-flange Elastic Din.6926 Mx Z 583. Mx Z 670.
46
415027800
Coussinet *cushion Mx Z 583. Mx Z 670.
47
293800005
Loctite 271 *loctite-271 Mx Z 583. Mx Z 670.
49
233281414
Nut-flange Elastic Din.6926 Mx Z 583. Mx Z 670.
50
503183400
Rondelle *washer Mx Z 583. Mx Z 670.
53
222083066
Screw-hex.cap Din.933 Mx Z 583. Mx Z 670.
48
234001410
Washer-flat Din.125a Mx Z 583. Mx Z 670.
