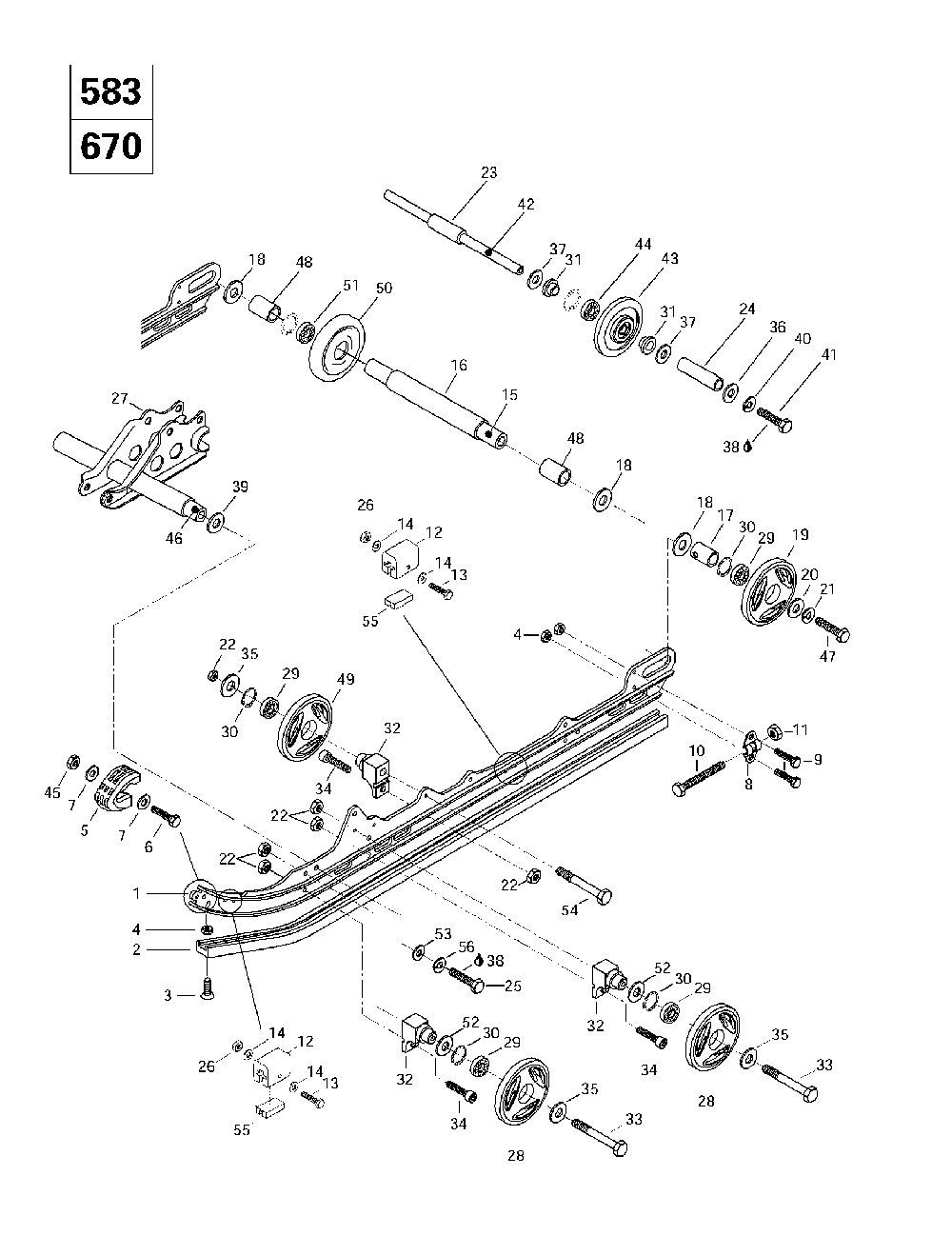

08- rear suspension (583, 670)

Ski-Doo (Bombardier) MX Z 440 F/Z 583/Z 670 1997
Ski-Doo (Bombardier)
#oem кодцена
1
503174700
Rail Usine *runner-mach Mx Z 583. Mx Z 670.
2
560103300
Glissiere Ret.noir 121*shoe-run.re Black Mx Z 583. Mx Z 670.
3
208562560
Screw-ctsk.ov.hd.ph.din.966a-a2 Mx Z 583. Mx Z 670.
4
232561414
Nut-stop Elastic Din.985 Mx Z 583. Mx Z 670.
5
572075400
Protecteur Rail*prot-runner Mx Z 583. Mx Z 670.
6
207152544
Screw-hex.cap Din.933 Mx Z 583. Mx Z 670.
7
391301600
Rondelle *washer Mx Z 583. Mx Z 670.
8
503155300
Tendeur *tensioner Mx Z 583. Mx Z 670.
9
207162044
Screw-hex.cap Din.933 Mx Z 583. Mx Z 670.
10
230101044
Screw-hex.cap Iso.4017 Mx Z 583. Mx Z 670.
11
233601416
Nut-locking Elastic Din.982 Mx Z 583. Mx Z 670.
12
503190905
Butee Caout As *stopper-rub As Mx Z 583. Mx Z 670.
13
207054044
Screw-hex.cap Din.931 Mx Z 583. Mx Z 670.
14
391301700
Rondelle *washer Mx Z 583. Mx Z 670.
15
503167900
Essieu Arriere *axle-rear Mx Z 583. Mx Z 670.
16
503139500
Entretoise Int.*spacer-inner Mx Z 583. Mx Z 670.
17
503189809
Entretoise *spacer Mx Z 583. Mx Z 670.
18
504108200
Cale Epaisseur *shim Mx Z 583. Mx Z 670.
19
570045326
Roue 165 *wheel-165 Mx Z 583. Mx Z 670.
20
503183300
Rondelle *washer Mx Z 583. Mx Z 670.
21
234100602
Washer-lock Spring Din.128a-a2 Mx Z 583. Mx Z 670.
22
233281414
Nut-flange Elastic Din.6926 Mx Z 583. Mx Z 670.
23
503160100
Entretoise Cent*spacer-center Mx Z 583. Mx Z 670.
24
503160200
Entretoise Ext.*spacer-outer Mx Z 583. Mx Z 670.
25
207123544
Screw-hex.cap Iso.4017 Mx Z 583. Mx Z 670.
26
232551414
Nut-stop Elastic Din.985 Mx Z 583. Mx Z 670.
27
503158300
Sup.cent.amor.s*sup.-shock Wel Mx Z 583. Mx Z 670.
28
570045226
Roue 135 *wheel-135 Mx Z 583. Mx Z 670.
29
293350055
Ball Bearing Mx Z 583. Mx Z 670.
30
371901700
Circlip Int. *circlip-int. Mx Z 583. Mx Z 670.
31
503189534
Coussinet *cushion Mx Z 583. Mx Z 670.
32
503163600
Support Usine *support-mach. Mx Z 583. Mx Z 670.
33
207088544
Screw-hex.cap Din.931 Mx Z 583. Mx Z 670.
34
205082544
Screw-socket Hd.din.912 Mx Z 583. Mx Z 670.
35
503183100
Rondelle *washer Mx Z 583. Mx Z 670.
36
503183200
Washer-yellow Mx Z 583. Mx Z 670.
37
503154000
Rondelle *washer Mx Z 583. Mx Z 670.
38
293800005
Loctite 271 *loctite-271 Mx Z 583. Mx Z 670.
39
503007900
Rondelle Trempe*washer-hard Mx Z 583. Mx Z 670.
40
234181401
Washer-lock Din.127b Mx Z 583. Mx Z 670.
41
207183044
Screw-hex.cap Din.933 Mx Z 583. Mx Z 670.
42
503160000
Essieu *axle Mx Z 583. Mx Z 670.
43
572018900
Roue Support *wheel-idler Includes 43 - 44. Mx Z 583. Mx Z 670.
46
503174800
Arbre *shaft Mx Z 583. Mx Z 670.
47
250000019
Screw-hex.cap With Nylon Patch Mx Z 583. Mx Z 670.
48
503139600
Entretoise Int.*spacer-inner Mx Z 583. Mx Z 670.
49
570066622
Roue 135 Aluminium*wheel 135 Aluminum Mx Z 583. Mx Z 670.
50
503189568
Roue 165 *wheel-165 Includes 50 - 51. Mx Z 583. Mx Z 670.
52
503173700
Rondelle *washer Mx Z 583. Mx Z 670.
53
234021410
Washer-flat Din.125a Mx Z 583. Mx Z 670.
54
207088044
Screw-hex.cap Din.931 Mx Z 583. Mx Z 670.
55
572084800
Renfort Butee *reinf.-stopper Mx Z 583. Mx Z 670.
56
234120602
Washer-lock Spring Din.128a-a2 Mx Z 583. Mx Z 670.
10
732601017
Screw-hex.cap Iso.4017 Mx Z 583. Mx Z 670.
44
293350055
Ball Bearing Mx Z 583. Mx Z 670.
45
232551414
Nut-stop Elastic Din.985 Mx Z 583. Mx Z 670.
51
293350055
Ball Bearing Mx Z 583. Mx Z 670.
