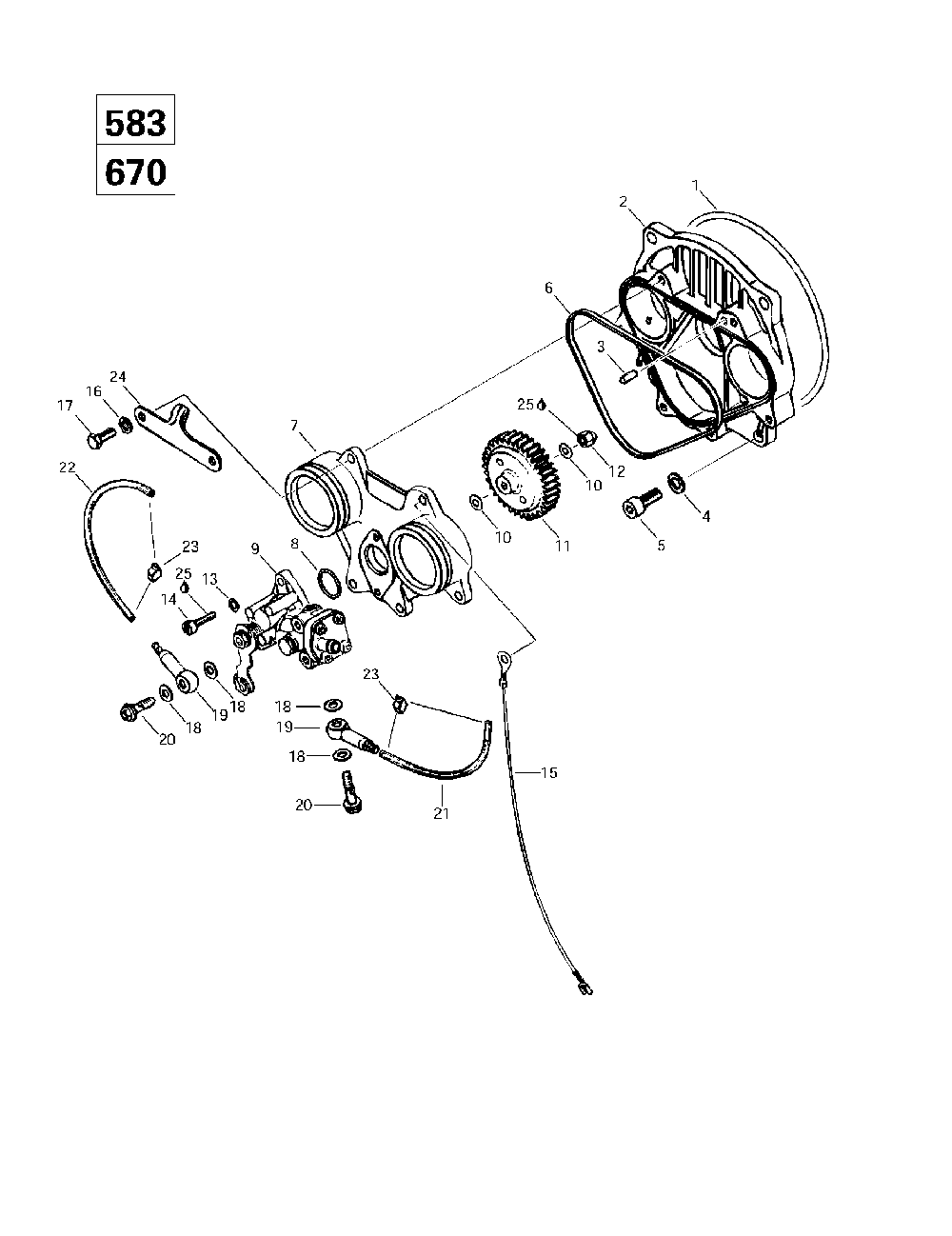

02- oil injection system (583, 670)

Ski-Doo (Bombardier) MX Z 440 F/Z 583/Z 670 1997
Ski-Doo (Bombardier)
#oem кодцена
1
293300023
Joint Torique *o-ring Mx Z 583. Mx Z 670.
2
420810486
Couvercle Ass. *cover-assy. Mx Z 583. Mx Z 670.
3
420929650
Goupille Ass. *guide Pin Mx Z 583. Mx Z 670.
4
420945752
Washer-lock Din.128 Mx Z 583. Mx Z 670.
5
205082044
Screw-socket Hd.din.912 Mx Z 583. Mx Z 670.
6
420831707
Bague Caout. *ring-rubber Mx Z 583. Mx Z 670.
7
420810490
Epaul.pompe *flange-pump Mx Z 583. Mx Z 670.
8
293300018
Joint Torique *o-ring Mx Z 583. Mx Z 670.
9
420887340
Pompe A Huile *pump-oil Assy. Mx Z 583. Mx Z 670.
10
420927945
Washer-flat 6, 2x12x1 Mx Z 583. Mx Z 670.
11
420935945
Engrenage Pompe*gear-oil Pump 41th Mx Z 583. Mx Z 670.
12
232561414
Nut-stop Elastic Din.985 Mx Z 583. Mx Z 670.
13
420945750
Rondelle-frein *washer-lock#5 Mx Z 583. Mx Z 670.
14
420240761
Screw-cyl.m5 X 16 Mx Z 583. Mx Z 670.
16
420945751
Washer-lock Din.128 Mx Z 583. Mx Z 670.
17
207162044
Screw-hex.cap Din.933 Mx Z 583. Mx Z 670.
18
404146600
Rondelle Etanch*washer-sealing Mx Z 583. Mx Z 670.
19
420956010
Soupape Ass. *valve-assy. Mx Z 583. Mx Z 670.
20
404146800
Bolt-banjo M6 X 16 Mx Z 583. Mx Z 670.
21
414413800
Boyau D Huile *hose-oil Mx Z 583. Mx Z 670.
23
420853840
Bride *clamp Mx Z 583. Mx Z 670.
24
420851340
Plaque *plate-int.sil. Mx Z 583. Mx Z 670.
25
293800060
Loctite 243 *loctite-243 Mx Z 583. Mx Z 670.
2
420810481
Couvercle Ass. *cover-assy. Mx Z 583. Mx Z 670.
22
414413800
Boyau D Huile *hose-oil Mx Z 583. Mx Z 670.
