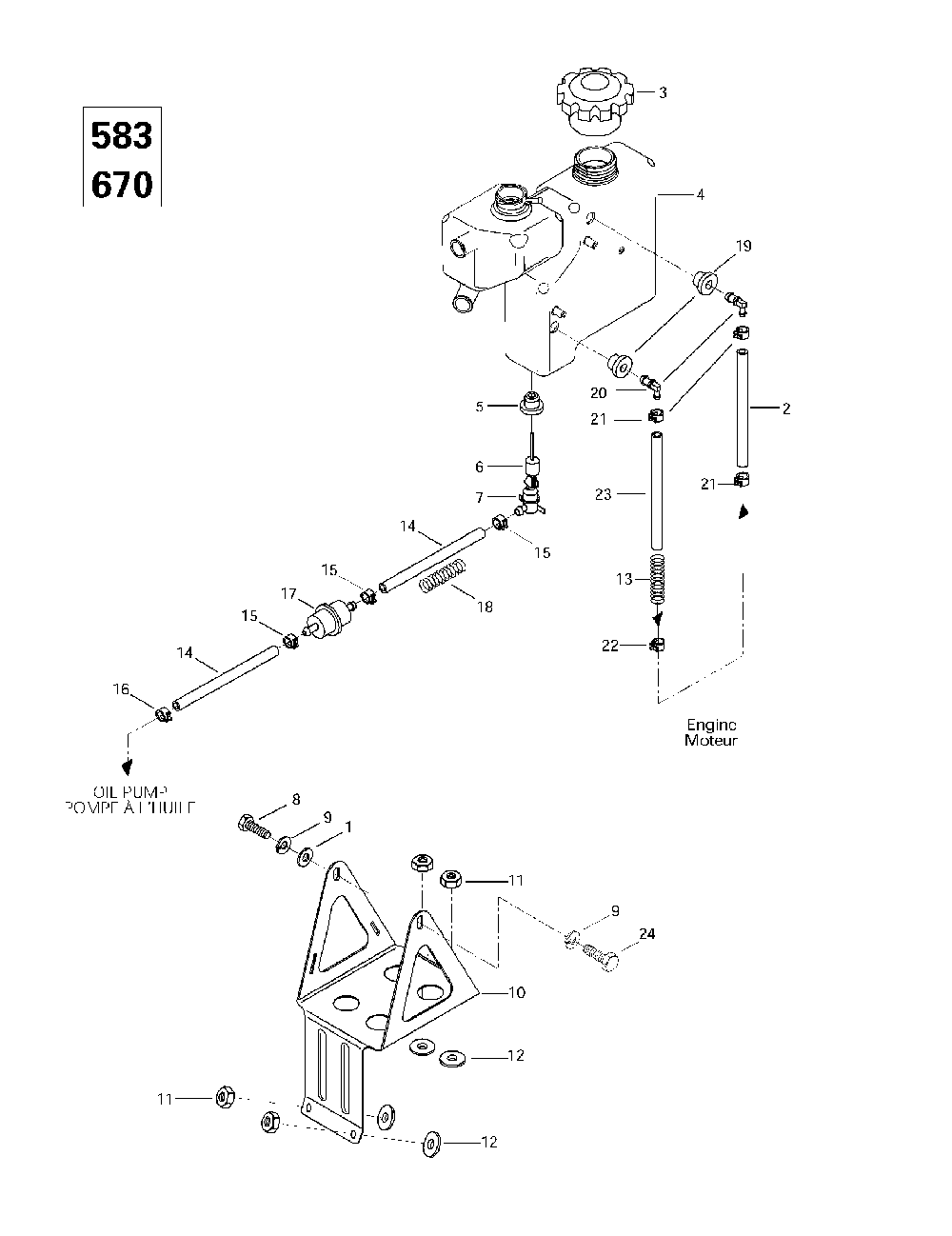

02- oil tank and support (583, 670)

Ski-Doo (Bombardier) MX Z 440 F/Z 583/Z 670 1997
Ski-Doo (Bombardier)
#oem кодцена
1
224061121
Washer-flat Mx Z 583. Mx Z 670.
2
414644800
Conduit D Huile*line-oil Mx Z 583. Mx Z 670.
3
519000044
Bouchon *cap Mx Z 583. Mx Z 670.
4
519000034
Reservoir Huile*tank-oil Mx Z 583. Mx Z 670.
5
570023000
Bague Isolante *ring-insulated Mx Z 583. Mx Z 670.
6
278001013
Joint De Fil *seal-wire Mx Z 583. Mx Z 670.
6
278001014
Cosse Femelle *terminal-femal Mx Z 583. Mx Z 670.
6
409209500
Logement Femel.*housing-femal. Mx Z 583. Mx Z 670.
6
515176327
Conct.niveau *switch-level Mx Z 583. Mx Z 670.
7
414681800
Conct.niveau *switch-level Mx Z 583. Mx Z 670.
8
207161244
Screw-hex.cap Din.933 Mx Z 583. Mx Z 670.
9
234161471
Washer-lock Black Din.127b Mx Z 583. Mx Z 670.
10
517278900
Support Reserv.*supp-tank Mx Z 583. Mx Z 670.
11
232561414
Nut-stop Elastic Din.985 Mx Z 583. Mx Z 670.
13
415044100
Ressort *spring Mx Z 583. Mx Z 670.
14
415080700
Boyau Polyure *hose*polyurethane Mx Z 583. Mx Z 670.
15
414415200
Bride A Ressort*clamp-spring Mx Z 583. Mx Z 670.
16
414420700
Bride A Ressort*clamp-spring Mx Z 583. Mx Z 670.
17
414536500
Filtre Huile *filter-oil Mx Z 583. Mx Z 670.
18
414940300
Ressort *spring Mx Z 583. Mx Z 670.
19
570273900
Passe-fils *grommet Mx Z 583. Mx Z 670.
20
414523600
Raccord Coude *fitting-elbow Mx Z 583. Mx Z 670.
21
414655700
Bride A Ressort*clamp-spring Mx Z 583. Mx Z 670.
22
408801100
Bride Serrage *clamp-gear Mx Z 583. Mx Z 670.
24
207161044
Screw-hex.cap Din.933 Mx Z 583. Mx Z 670.
23
414644800
Conduit D Huile*line-oil Mx Z 583. Mx Z 670.
