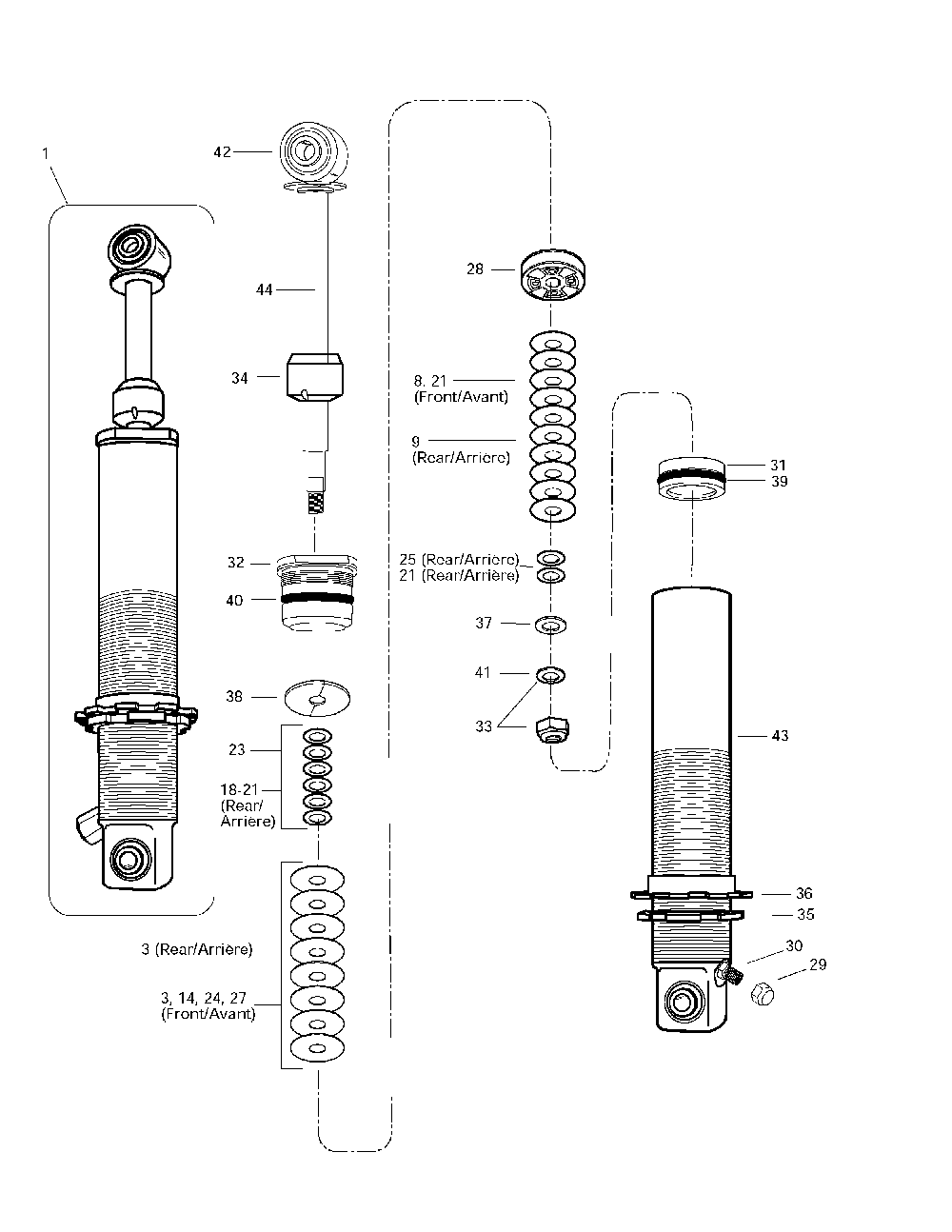

07- front and rear take apart shocks

Ski-Doo (Bombardier) MX Z 440 LC
Ski-Doo (Bombardier)
#oem кодцена
1
415039300
Amortisseur Dr.*shock-rh Mx Z 440 Lc. (front Suspension)
415039302
Amortisseur Ga.*shock-lh Mx Z 440 Lc. (front Suspension)
414953900
Amortisseur *shock Mx Z X 440 Lc. (rear Suspension - Central Shock)
414954000
Amort. Arr. *shock-rear . (rear Suspension - Rear Shock)
2
415039100
Lame Soupape *leaf-valve
3
414888318
Lame Soupape *leaf-valve
4
414888319
Lame Soupape *leaf-valve
5
414888320
Lame Soupape *leaf-valve
6
414888321
Lame Soupape *leaf-valve
7
415039000
Lame Soupape *leaf-valve
8
414888322
Lame Soupape *leaf-valve
9
414888323
Lame Soupape *leaf-valve
10
414888324
Lame Soupape *leaf-valve
11
414888325
Lame Soupape *leaf-valve
12
414888326
Lame Soupape *leaf-valve
13
414888327
Lame Soupape *leaf-valve
14
414888328
Lame Soupape *leaf-valve
15
414888329
Lame Soupape *leaf-valve
16
414888330
Lame Soupape *leaf-valve
17
414888331
Lame Soupape *leaf-valve
18
414888332
Lame Soupape *leaf-valve
19
414888333
Lame Soupape *leaf-valve
20
414888334
Lame Soupape *leaf-valve
21
414888335
Lame Soupape *leaf-valve
22
414888336
Lame Soupape *leaf-valve
23
414888337
Lame Soupape *leaf-valve
24
415038900
Lame Soupape *leaf-valve
415093823
Lame Soupape *leaf-valve
25
414888338
Lame Soupape *leaf-valve
26
414888339
Lame Soupape *leaf-valve
27
415038800
Lame Soupape *leaf-valve
28
414888306
Piston Comp. *piston-comp.
414888307
Piston Comp. *piston-comp.
415093821
Piston *piston
414888305
Piston Comp. *piston-comp.
414888304
Piston Comp. *piston-comp.
29
414888313
Bouchon Valve *cap-valve Mx Z X 440 Lc. .
30
414888314
Soupape Air *valve-air+ring Mx Z X 440 Lc. .
32
414888300
Capuchon Etanc.*cap-sealing Mx Z X 440 Lc. .
415093819
Capuchon Etanc.*cap-sealing Mx Z 440 Lc.
33
414888310
Ecrou & Rondel.*nut & Washer
34
415093822
Butee Caout. *stopper-rubber Mx Z 440 Lc.
35
414888317
Collet Blocage *collar-jam Th. Mx Z X 440 Lc. .
36
414888316
Collet Ressort *collar-spring Mx Z X 440 Lc. .
415093800
Butee Ressort *stopper-spring Mx Z 440 Lc.
37
414888308
Soupape D Arret*valve-stopper
38
414888303
Soupape D Arret*valve-stopper Mx Z X 440 Lc. .
415093820
Soupape D Arret*valve-stopper Mx Z 440 Lc.
39
414888312
Joint Torique *o-ring Mx Z X 440 Lc. .
40
414888301
Joint Torique *o-ring Mx Z X 440 Lc. .
41
414888309
Rondelle *washer Mx Z X 440 Lc. .
42
415093814
Tige De Piston *piston-rod (incl. It. 3, 8, 14, 21, 24, 27, 28, 32, 33, 34, 37, 38, 44) Mx Z 440 Lc.
43
415093813
Cylindre *cylinder Mx Z 440 Lc.
414954003
Corps Cylindre *body-cylinder .
44
415093818
Tige De Piston *piston-rod Mx Z 440 Lc.
415038800
Lame Soupape *leaf-valve
