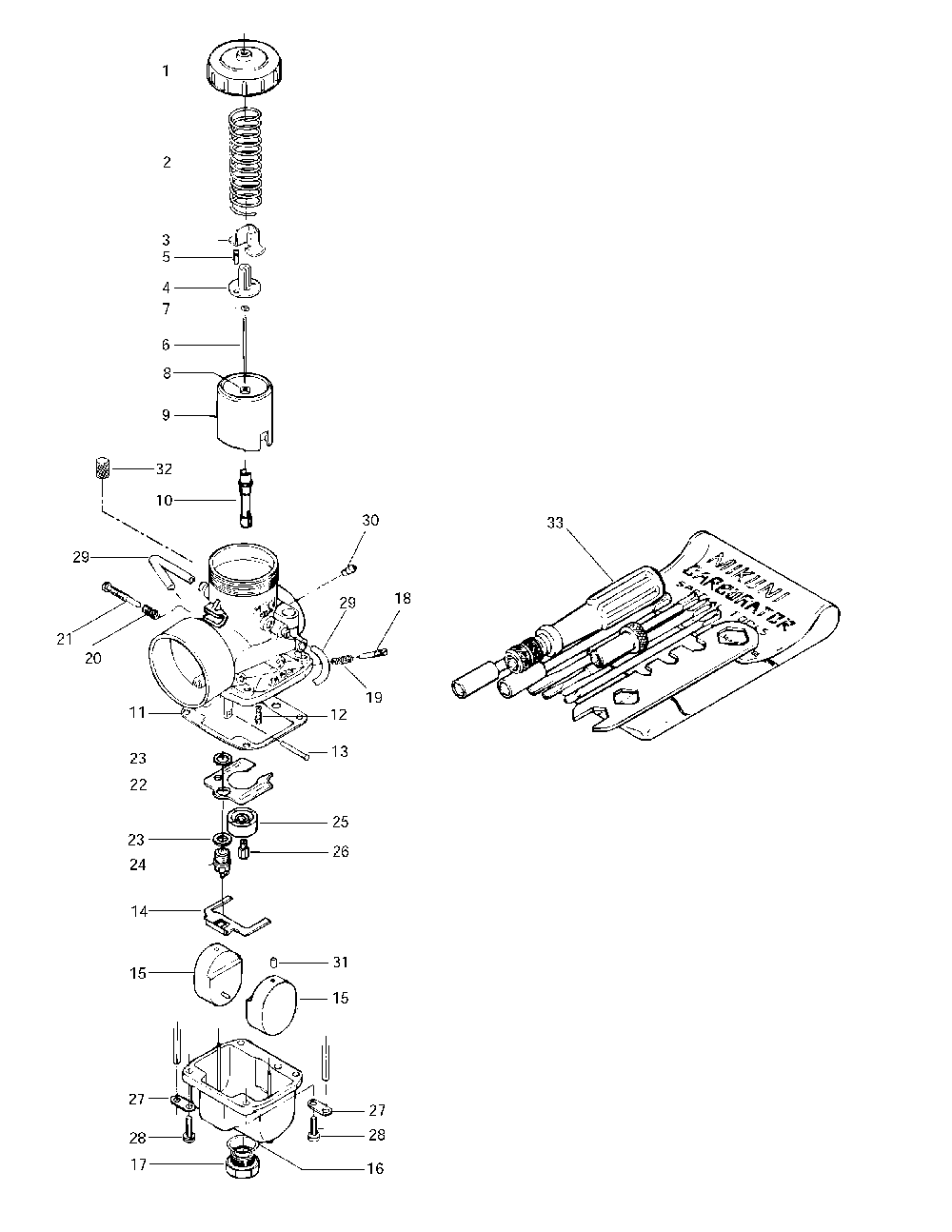

Карбюратор

Ski-Doo (Bombardier) MX Z 440 LC
Ski-Doo (Bombardier)
#oem кодцена
1
403130700
Carb.vm-34 Pto *carb-vm-34 Pto Includes 1 - 32. Mx Z X 440 Lc.
403130800
Carb.vm-34 Mag *carb-vm-34 Mag Mx Z X 440 Lc.
1
403133300
Carb.vm-34 Pto.*carb-vm-34 Pto Includes 1 - 32. .
403133400
Carb.vm-34 Mag *carb-vm-34 Mag .
1
404103700
Крышка
2
404154800
Пружина
3
404122100
Крышка
4
404160800
Connecteur *connector
5
404121300
Vis W.rondelle*screw-with Washer Mx Z X 440 Lc. .
6
404157200
Aiguille *needle Mx Z X 440 Lc. .
7
404152400
Rondelle E *ring-e
8
404117000
Joint Tampon *packing
9
404128400
Tiroir Acc.2.5 *piston-val.2.5
10
404120800
Gicleur Aiguil.*jet Needle Mx Z X 440 Lc. .
11
404104200
Прокладка
12
404109100
Gicleur Ralenti*jet-pilot 40 Mx Z 440 Lc.
404109400
Gicleur Ralenti*jet-pilot 45 Mx Z X 440 Lc.
13
404103300
Палец крепления рычага
14
404107600
Levier Flotteur*lever-float
15
404107100
Flotte *float
16
404107300
Кольцо
17
404107400
Vis Bouchon *screw-drain Plug Mx Z X 440 Lc.
404144500
Clip *clip Mx Z 440 Lc.
18
404149000
Vis Air *screw-air
19
404139800
Пружина
20
404101700
Пружина
21
404125200
Vis Etrangleur*screw-throttle
22
404109600
Chicane *baffle
23
404101600
Rondelle Siege *washer-seat
24
404147400
Pointeau Vs 1.5*valve Needle
25
404110900
Bague Chicane *ring-baffle
26
404100200
Gicleur Mj 240 *jet-main 240 Mx Z 440 Lc.
404100600
Gicleur Mj 260 *jet-main 260 Mx Z X 440 Lc.
404119100
Gicleur Mj 210 *jet-main 210 Mx Z 440 Lc.
404100300
Gicleur Mj 250 *jet-main 250 Mx Z X 440 Lc.
27
404103000
Plaque *plate
28
404102000
Screw-w/lock *screw-w/lockwasher Mx Z X 440 Lc. .
29
404109800
Tuyau Aeration *tube-air Vent
30
404153400
Raccord *nipple
31
404105800
Крышка
32
404158900
Фильтр
33
404112000
Комплект инструментов
