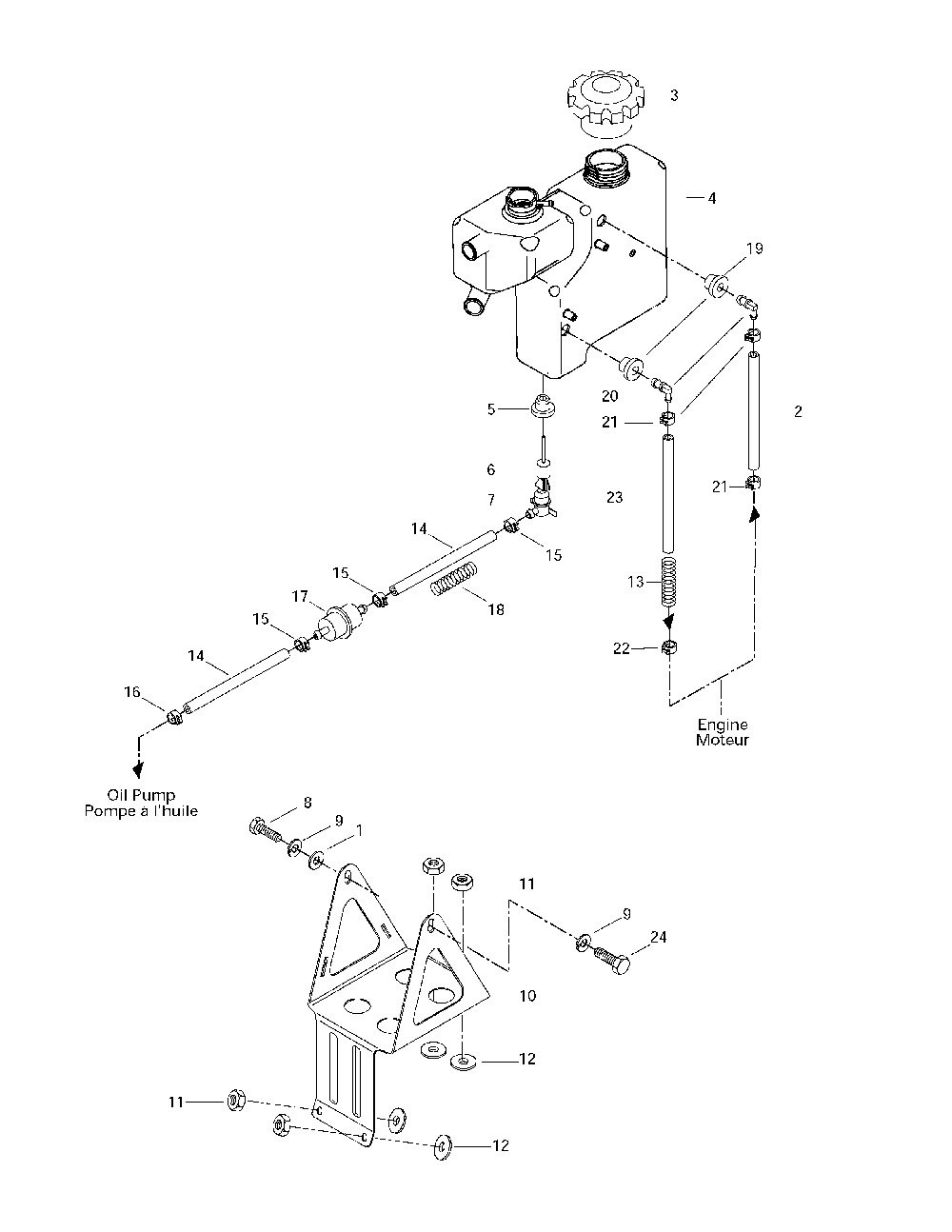

02- oil tank and support (mx z 440 lc)

Ski-Doo (Bombardier) MX Z 440 LC
Ski-Doo (Bombardier)
#oem кодцена
1
224061121
Washer-flat Mx Z 440 Lc.
2
414644800
Conduit D Huile*line-oil Mx Z 440 Lc.
3
519000044
Bouchon *cap Mx Z 440 Lc.
4
519000034
Reservoir Huile*tank-oil Mx Z 440 Lc.
5
570023000
Bague Isolante *ring-insulated Mx Z 440 Lc.
6
278001013
Joint De Fil *seal-wire Mx Z 440 Lc.
6
278001014
Cosse Femelle *terminal-femal Mx Z 440 Lc.
6
409209500
Logement Femel.*housing-femal. Mx Z 440 Lc.
6
515176327
Conct.niveau *switch-level Mx Z 440 Lc.
7
414681800
Conct.niveau *switch-level Mx Z 440 Lc.
8
207161244
Screw-hex.cap Din.933 Mx Z 440 Lc.
9
234161471
Washer-lock Black Din.127b Mx Z 440 Lc.
10
517278900
Support Reserv.*supp-tank Mx Z 440 Lc.
11
232561414
Nut-stop Elastic Din.985 Mx Z 440 Lc.
13
415044100
Ressort *spring Mx Z 440 Lc.
14
415080700
Boyau Polyure *hose*polyurethane Mx Z 440 Lc.
15
414415200
Bride A Ressort*clamp-spring Mx Z 440 Lc.
16
414420700
Bride A Ressort*clamp-spring Mx Z 440 Lc.
17
414536500
Filtre Huile *filter-oil Mx Z 440 Lc.
18
414940300
Ressort *spring Mx Z 440 Lc.
19
570273900
Passe-fils *grommet Mx Z 440 Lc.
20
414523600
Raccord Coude *fitting-elbow Mx Z 440 Lc.
21
414655700
Bride A Ressort*clamp-spring Mx Z 440 Lc.
22
408801100
Bride Serrage *clamp-gear Mx Z 440 Lc.
24
207161044
Screw-hex.cap Din.933 Mx Z 440 Lc.
