01- engine support and muffler (503) Запчасти для снегоходов Ski-Doo (Bombardier) Skandic 380/500 (1997)

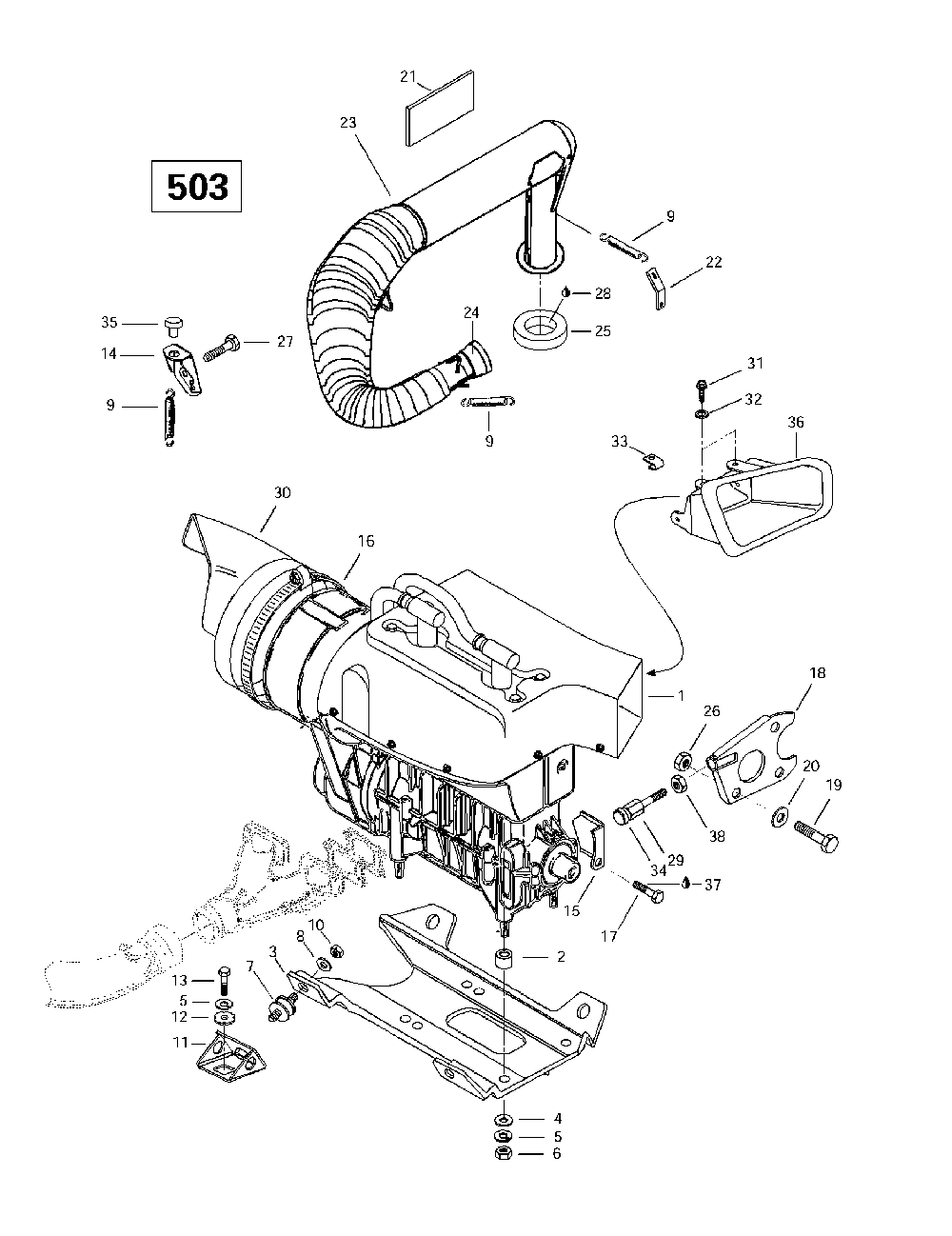

01- engine support and muffler (503)

Ski-Doo (Bombardier) Skandic 380/500

oem код

название

цена

512051800

Entretoise *spacer Skandic 500.

512054500

Socle *support-engine Skandic 500.

234001410

0asher-flat Din.125a Skandic 500.

234100602

Washer-lock Spring Din.128a-a2 Skandic 500.

232006414

Nut-hexagonal Din.934 Skandic 500.

570128700

Tampon Ancrage *mount-rubber Skandic 500.

415107100

Ressort *spring Skandic 500.

233601416

Nut-locking Elastic Din.982 Skandic 500.

512055400

Supp.moteur Sou*supp-engine Weld Skandic 500.

512056700

Rondelle-frein *washer-lock Skandic 500.

207102544

Screw-hex.cap Iso.4017 Skandic 500.

514044100

Support Tuyau *support-pipe Skandic 500.

512059198

Plaque Butee So*plate-stop.weld Skandic 500.

408803700

Bride Serrage *clamp-gear Skandic 500.

207182044

Screw-hex.cap Din.933 Skandic 500.

517271800

Plaque App.soud*plate-weld Skandic 500.

207182544

Screw-hex.cap Din.933 Skandic 500.

234081410

Washer-flat Din.125a Skandic 500.

414746400

Feuille Reflect*sheet-reflect. Skandic 500.

514034000

Attache Ressort*bracket-spring Skandic 500.

514046700

Tuyau Echap.sou*pipe-muffler Weld Includes 23 - 24. Skandic 500.

420973530

Joint Rotule *ball Joint Skandic 500.

570039000

Grommet-exhaust D70 Skandic 500.

232581414

Nut-stop Elastic Din.985 Skandic 500.

207006044

Screw-hex.cap Iso.4014 Skandic 500.

293550030

Graisse *grease Skandic 500.

517244200

Vis *screw Skandic 500.

572058500

Deflecteur Air *deflector-air Skandic 500.

365901100

Screw-hex.taping 12 Skandic 500.

420845270

Washer-lock Serrated Int.ext.m6 Skandic 500.

570025100

Tige Retenue *rod-retainer Skandic 500.

514053654

Butoir Caout. *bumper Rubber Skandic 500.

572083900

Conduit Sortie *duct-outlet Skandic 500.

293800005

Loctite 271 *loctite-271 Skandic 500.

232120414

Nut-jam Hexagonal Din.439b Skandic 500.

234001410

Washer-flat Din.125a Skandic 500.
