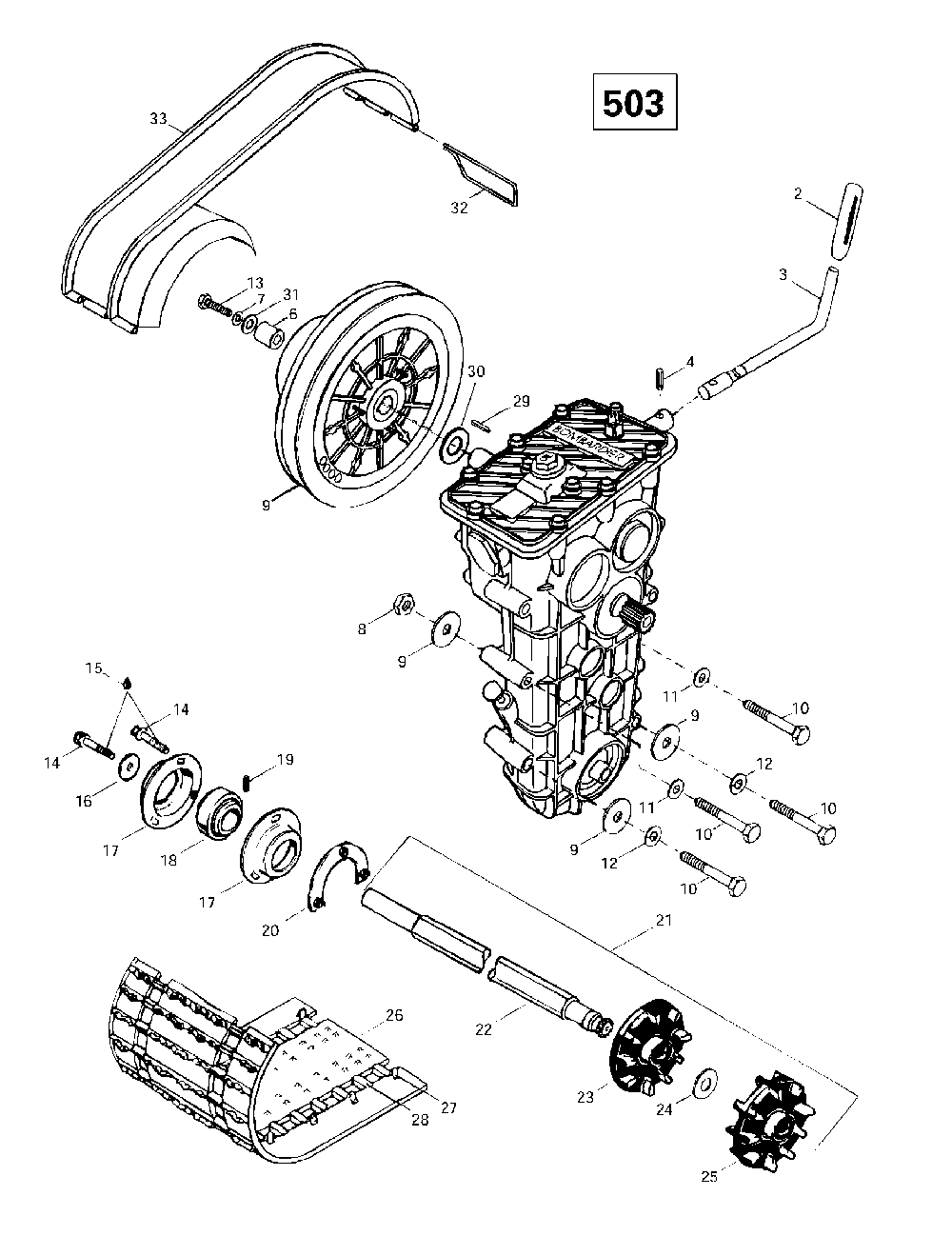

05- drive axle, track and belt guard (503)

Ski-Doo (Bombardier) Skandic Super Wide Track
Ski-Doo (Bombardier)
#oem кодцена
2
M28247
Boule Trans. *ball Skandic Super Wide Track.
3
M5340902
Bras Vitesse *arm-shifter Skandic Super Wide Track.
4
M41007
Goup.ressort *pin-spring Skandic Super Wide Track.
6
M5441286
Rallonge Arbre *ext-countersha Skandic Super Wide Track.
7
234181401
Washer-lock Din.127b Skandic Super Wide Track.
8
232581414
Nut-stop Elastic Din.985 Skandic Super Wide Track.
9
M20010
Rondelle *washer Skandic Super Wide Track.
10
M40089
Vis *screw Skandic Super Wide Track.
13
207085544
Screw-hex.cap Din.931 Skandic Super Wide Track.
16
M546336
Washer Skandic Super Wide Track.
17
M534430
Logement Roul. *housing-bea.we Skandic Super Wide Track.
18
M31UC205
Roulement Bille*ball Bearing Skandic Super Wide Track.
19
M10531
Vis *screw Skandic Super Wide Track.
20
M546421
Demi Anneau *ring-thust Skandic Super Wide Track.
22
M539815
Arbre Entrain. *axle-drive Skandic Super Wide Track.
23
M539749
Barbotin *sprocket Skandic Super Wide Track.
24
M5440766
Washer Skandic Super Wide Track.
25
M539750
Barbotin 8d *sprocket 8th Skandic Super Wide Track.
26
M13049
Chenille *track-assy 24"x154" Swt 97 Includes 26 - 28. Skandic Super Wide Track.
27
M5318323
Agrafe De Guide*cleat-guide Skandic Super Wide Track.
28
M5318322
Agrafe *cleat Skandic Super Wide Track.
30
M3125351
Cale *shim Skandic Super Wide Track.
32
M542300
Goupille *pin Skandic Super Wide Track.
33
M5140175
Garde-courr.sou*guard-belt Weld Skandic Super Wide Track.
11
234181401
Washer-lock Din.127b Skandic Super Wide Track.
12
234181401
Washer-lock Din.127b Skandic Super Wide Track.
14
M20010
Rondelle *washer Skandic Super Wide Track.
19
M31UC205
Roulement Bille*ball Bearing Skandic Super Wide Track.
31
M546336
Washer Skandic Super Wide Track.
