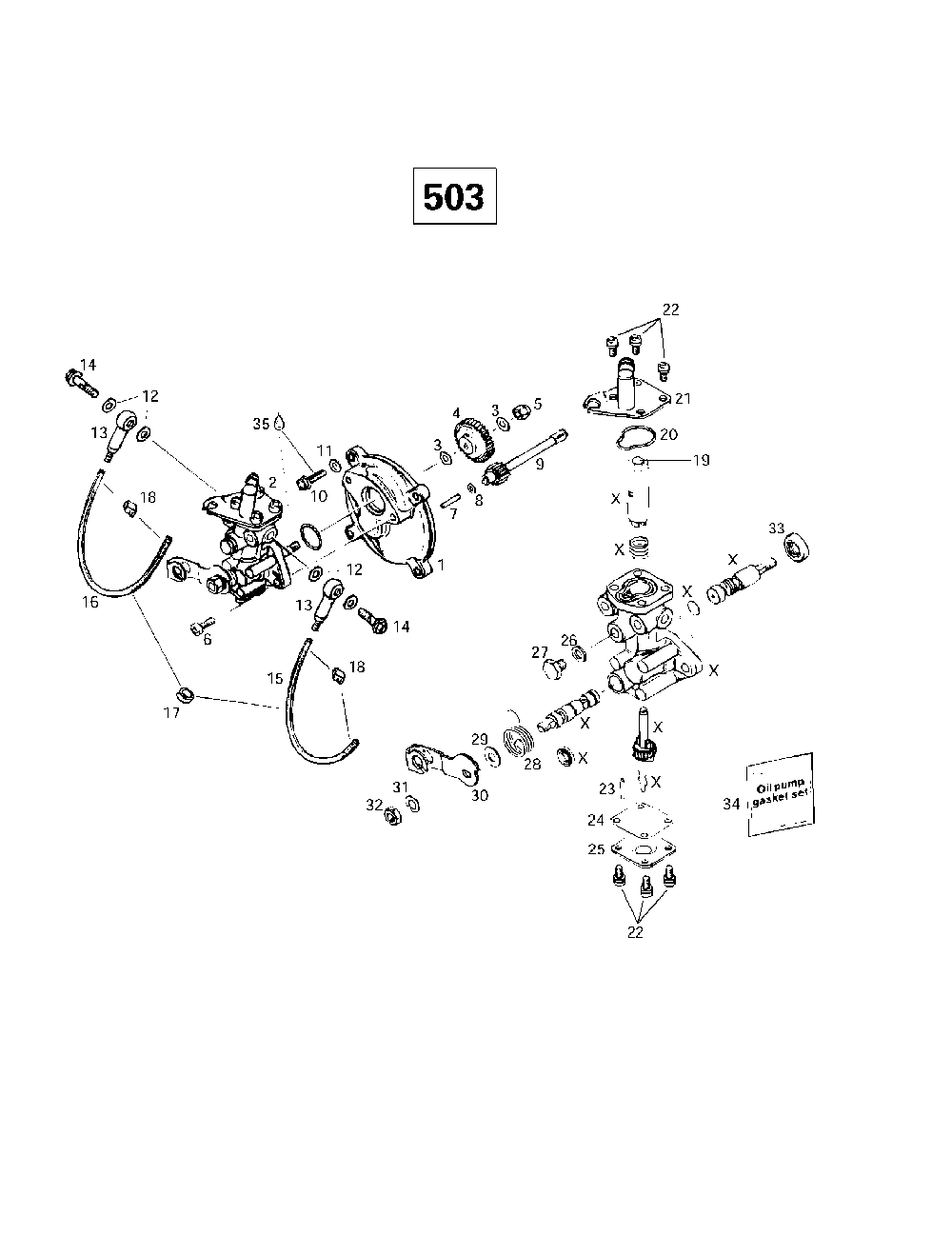

02- oil injection system (503)

Ski-Doo (Bombardier) Skandic Super Wide Track
Ski-Doo (Bombardier)
#oem кодцена
1
420910160
Epaul.pompe *flange-pump 8 Skandic Super Wide Track.
2
420886096
Pompe A Huile *pump-oil Assy. (incl. It. 1932) Skandic Super Wide Track.
3
420927945
Washer-flat 6, 2x12x1 Skandic Super Wide Track.
4
420935930
Engrenage Pompe*gear-oil Pump Skandic Super Wide Track.
5
232561414
Nut-stop Elastic Din.985 Skandic Super Wide Track.
6
420841971
Screw Skandic Super Wide Track.
7
420832260
Goupille Roul. *pin-needle Skandic Super Wide Track.
8
420244073
Washer-4, 3 Skandic Super Wide Track.
9
420935970
Engrenage 9d. *gear-9 Teeth Skandic Super Wide Track.
10
420941925
Screw-tapping M5 X 16 Skandic Super Wide Track.
11
420945530
Rondelle *washer-fricti. Skandic Super Wide Track.
12
404146600
Rondelle Etanch*washer-sealing Skandic Super Wide Track.
13
420956010
Soupape Ass. *valve-assy. Skandic Super Wide Track.
14
404146800
Bolt-banjo M6 X 16 Skandic Super Wide Track.
15
414413800
Boyau D Huile *hose-oil Skandic Super Wide Track.
17
420960700
Bague Caout. *ring-rubber Skandic Super Wide Track.
18
420853840
Bride *clamp Skandic Super Wide Track.
20
293300019
Joint Torique *o-ring Skandic Super Wide Track.
22
420241975
Screw-with Stopper M4 X 8 Skandic Super Wide Track.
24
420850200
Joint Etanche *gasket Skandic Super Wide Track.
26
420227505
Rondelle Etanch*washer-seal Skandic Super Wide Track.
27
420841580
Screw-hex.m6 X 8 Skandic Super Wide Track.
31
420945751
Washer-lock Din.128 Skandic Super Wide Track.
32
420242623
Nut-hex.m6 Skandic Super Wide Track.
34
420995046
Ens.joint Etanc*set-gasket Skandic Super Wide Track.
35
293800060
Loctite 243 *loctite-243 Skandic Super Wide Track.
16
414413800
Boyau D Huile *hose-oil Skandic Super Wide Track.
30
420886096
Pompe A Huile *pump-oil Assy. Skandic Super Wide Track.
