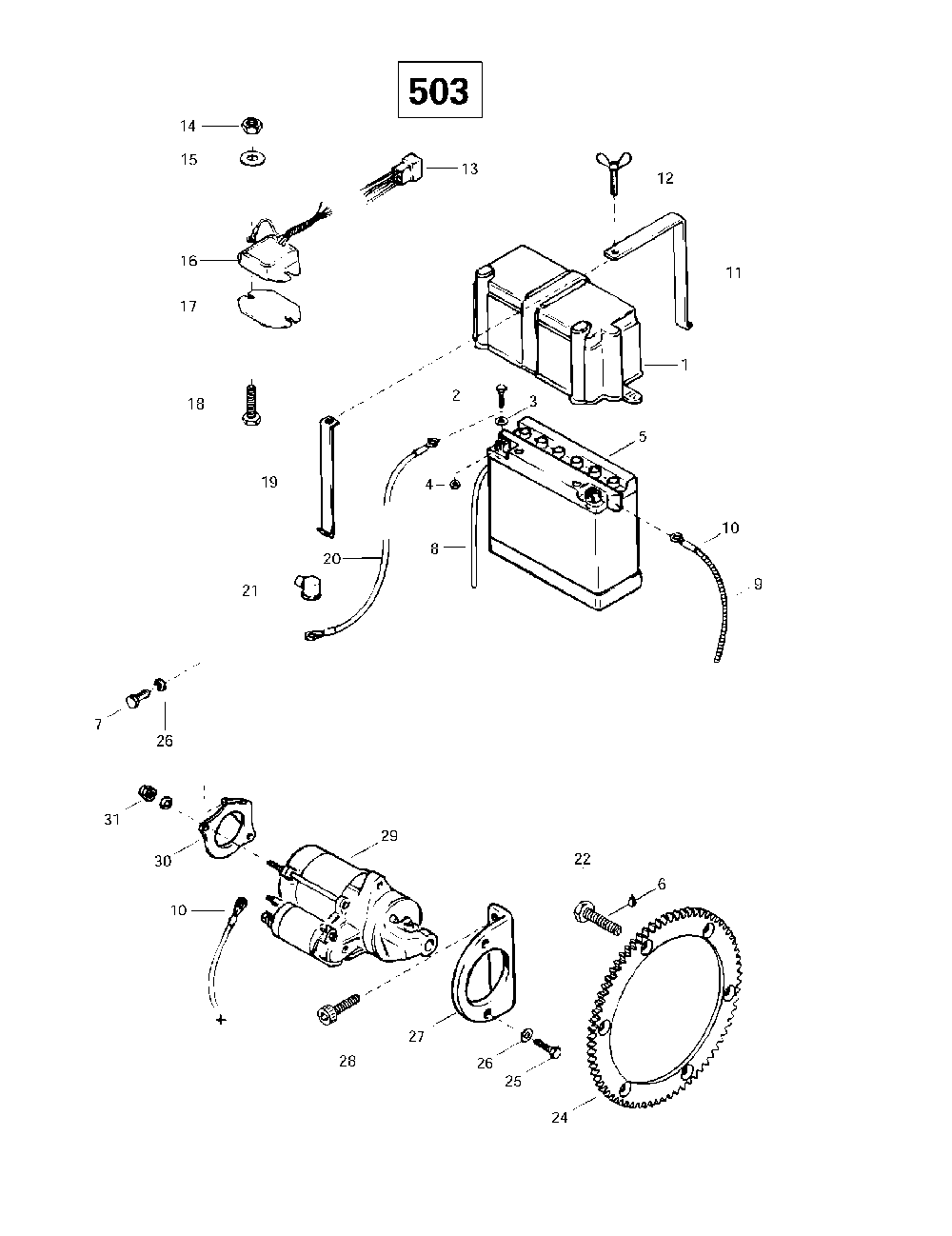

10- electrical system (503)

Ski-Doo (Bombardier) Skandic Super Wide Track
Ski-Doo (Bombardier)
#oem кодцена
1
570022000
Couvercle Batt.*cover-battery Skandic Super Wide Track.
2
207161644
Screw-hex.cap Din.933 Skandic Super Wide Track.
3
234061410
Washer-flat M6 Din.125a Skandic Super Wide Track.
4
232061414
Nut-hexagonal Din.934 Skandic Super Wide Track.
5
410301201
Batterie M2218y*battery (dry) Includes 5 - 5d. Skandic Super Wide Track.
5A
391302100
Washer-flat Yic Skandic Super Wide Track.
5B
410300800
Bouchon Batt. *cap-battery Skandic Super Wide Track.
6
293800060
Loctite 243 *loctite-243 Skandic Super Wide Track.
7
207181644
Screw-hex.cap Din.933 Skandic Super Wide Track.
10
M549886
Fil De Masse *wire-ground Skandic Super Wide Track.
11
M549888
Laniere *strip-steel Skandic Super Wide Track.
12
M40108
Screw Skandic Super Wide Track.
13
M42063
Logement Raccor*housing-tab Skandic Super Wide Track.
14
232551414
Nut-stop Elastic Din.985 Skandic Super Wide Track.
15
234051410
Washer-flat Din.125a Skandic Super Wide Track.
16
515175546
Regu.tension As*regulator-volt Skandic Super Wide Track.
17
M544741
Plaque *plate Skandic Super Wide Track.
18
207162044
Screw-hex.cap Din.933 Skandic Super Wide Track.
19
M549889
Laniere *strip-steel Skandic Super Wide Track.
21
M42673580
Capuchon Prot. *cap-protection Skandic Super Wide Track.
22
M40322
Винт
24
417222859
Cour.lancement *gear-ring Skandic Super Wide Track.
25
207182044
Screw-hex.cap Din.933 Skandic Super Wide Track.
26
234181401
Washer-lock Din.127b Skandic Super Wide Track.
27
420951415
Attache Demar. *bracket-start. Skandic Super Wide Track.
28
205082044
Screw-socket Hd.din.912 Skandic Super Wide Track.
29
410212400
Demarreur *starter Skandic Super Wide Track.
30
420951426
Supp.demar.mag.*supp.-star.mag Skandic Super Wide Track.
10
605349434
Cable Batterie *battery Wire Skandic Super Wide Track.
31
232551414
Nut-stop Elastic Din.985 Skandic Super Wide Track.
5C
207161644
Screw-hex.cap Din.933 Skandic Super Wide Track.
5D
232061414
Nut-hexagonal Din.934 Skandic Super Wide Track.
