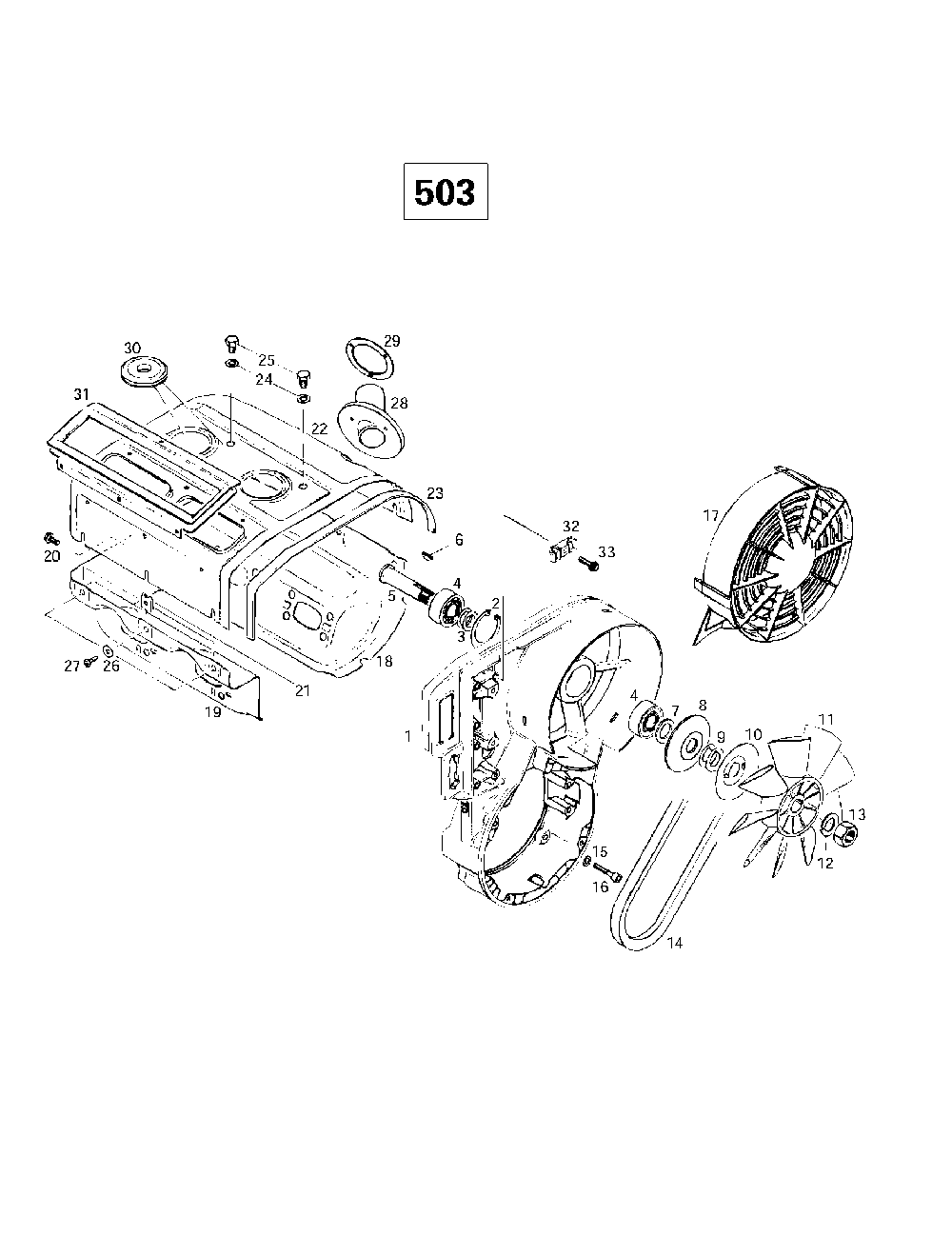

01- cooling system fan (503)

Ski-Doo (Bombardier) Skandic Wide Track LC
Ski-Doo (Bombardier)
#oem кодцена
1
420912204
Logement Vent. *housing-fan Skandic Super Wide Track.
2
420945880
Bague D Arret *ring-lock Skandic Super Wide Track.
3
420244585
Cale Epaisseur *shim Skandic Super Wide Track.
4
405406100
Roulement Bille*ball Bearing Skandic Super Wide Track.
5
420937940
Axe Ventilateur*axle-fan Skandic Super Wide Track.
6
420246015
Clavette *key-woodruff Skandic Super Wide Track.
7
420827650
Douille Ecart. *bushing-spacer Skandic Super Wide Track.
8
420980496
Flasque *flange Skandic Super Wide Track.
9
420827080
Cale Epaisseur *shim Skandic Super Wide Track.
420827082
Cale Epaisseur *shim Skandic Super Wide Track.
10
420980523
Rondelle Prot. *washer-protec. Skandic Super Wide Track.
11
420866292
Ventilateur *fan Skandic Super Wide Track.
12
420945756
Rondelle-frein *washer-lock#16 Skandic Super Wide Track.
13
420942285
Nut-hex.m16x1.5 Skandic Super Wide Track.
14
414630800
Courroie Vent. *belt-v Skandic Super Wide Track.
15
420945751
Washer-lock Din.128 Skandic Super Wide Track.
16
205063044
Screw-socket Hd.din.912 Skandic Super Wide Track.
17
420975695
Couvercle Vent.*cover-fan Skandic Super Wide Track.
18
420911069
Deflecteur Cyl.*cowl-cyl. Skandic Super Wide Track.
19
420911067
Deflecteur Cyl.*cowl-cyl. Skandic Super Wide Track.
20
420240385
Screw-taptite M6 X 12 Skandic Super Wide Track.
21
420842390
Ecrou Ressort *nut-spring Skandic Super Wide Track.
22
420912824
Deflecteur Cyl.*cowl-cyl. Skandic Super Wide Track.
24
420945752
Washer-lock Din.128 Skandic Super Wide Track.
25
207181644
Screw-hex.cap Din.933 Skandic Super Wide Track.
26
420926180
Washer-flat 5, 2 X 14, 8 X1, 5 Skandic Super Wide Track.
27
417300006
Screw-tapping 4, 8 X 16 Skandic Super Wide Track.
28
570125500
Raccord *fitting Skandic Super Wide Track.
30
570124700
Passe-fils *grommet Skandic Super Wide Track.
31
570124600
Joint Etanche *seal Skandic Super Wide Track.
32
420860940
Bride *clamp Skandic Super Wide Track.
33
420941250
Screw-tapping Skandic Super Wide Track.
