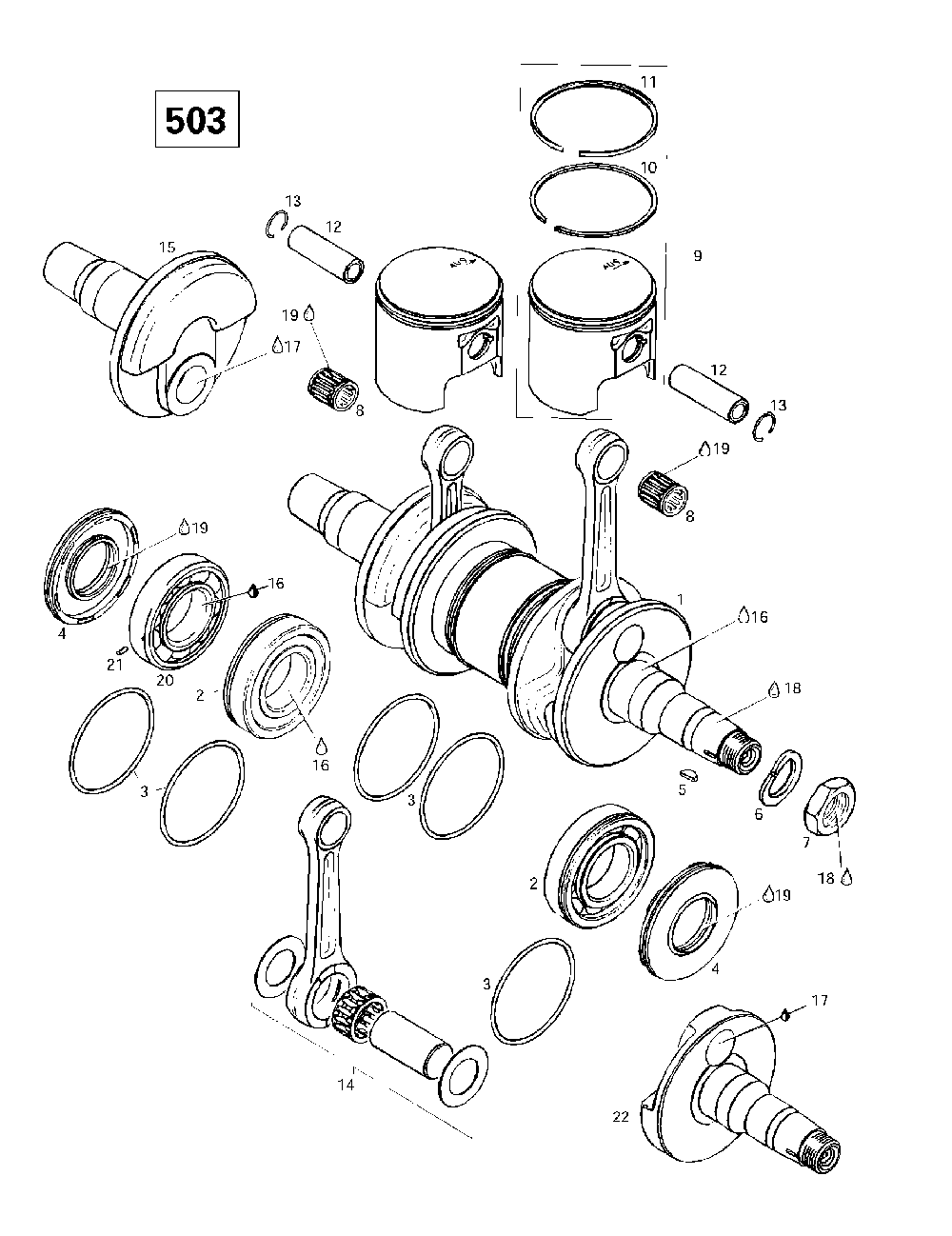

Коленчатый вал и поршни (503)

Ski-Doo (Bombardier) Skandic Wide Track LC
Ski-Doo (Bombardier)
#oem кодцена
1
421000155
Vilebreq.refait*crank-rebuild 503 97 Includes 1 - 4. Skandic Super Wide Track.
2
420832570
Roulement Bille*ball Bearing Skandic Super Wide Track.
3
293300022
Joint Torique *o-ring Skandic Super Wide Track.
4
420831952
Anneau Etanche *seal-oil Skandic Super Wide Track.
5
420246055
Clavette *key-woodruff Skandic Super Wide Track.
6
420945759
Rondelle-frein *washer-lock 22 Skandic Super Wide Track.
7
420842234
Nut-hex.m22 X 1, 5 Skandic Super Wide Track.
8
420932904
Roul.aiguille *needle Bearing Skandic Super Wide Track.
9
420890070
Piston 71.91 *piston 71.91 Includes 9 - 11. Skandic Super Wide Track.
420890071
Piston 72.16 *piston 72.16 Skandic Super Wide Track.
420890072
Piston 72.41 *piston 72.41 Skandic Super Wide Track.
10
420915850
Segment R 72.0 *ring-r 72.0 Skandic Super Wide Track.
420915851
Segment R 72.25*ring-r 72.25 Skandic Super Wide Track.
420915852
Segment R 72.5 *ring-r 72.5 Skandic Super Wide Track.
420815201
Segment L 72.25*ring-l 72.25 Skandic Super Wide Track.
420215237
Segment L 72.5 *ring-l 72.5 Skandic Super Wide Track.
12
420916186
Axe De Piston *pin-gudgeon Skandic Super Wide Track.
13
420945735
Circlip Piston *circlip-piston Skandic Super Wide Track.
14
420888394
Ens.tige Rep. *kit-rod Repair Skandic Super Wide Track.
15
420818244
Demi-vileb.pto *half-crank Pto Skandic Super Wide Track.
17
413711400
Loctite 648 *loctite-648 Skandic Super Wide Track.
18
293800060
Loctite 243 *loctite-243 Skandic Super Wide Track.
19
413707000
Dow Corning 111*dow Corning 111 Skandic Super Wide Track.
20
420832573
Roulement Bille*ball Bearing Includes 20 - 21. Skandic Super Wide Track.
21
420929972
Goupille Ressor*pin-roll Skandic Super Wide Track.
22
420819020
Demi-vileb.mag.*half-crank Mag Skandic Super Wide Track.
11
420815200
Segment L 72.0 *ring-l 72.0 Skandic Super Wide Track.
7
420842239
Ecrou*hex Nut M22x1, 5 Skandic Super Wide Track.
