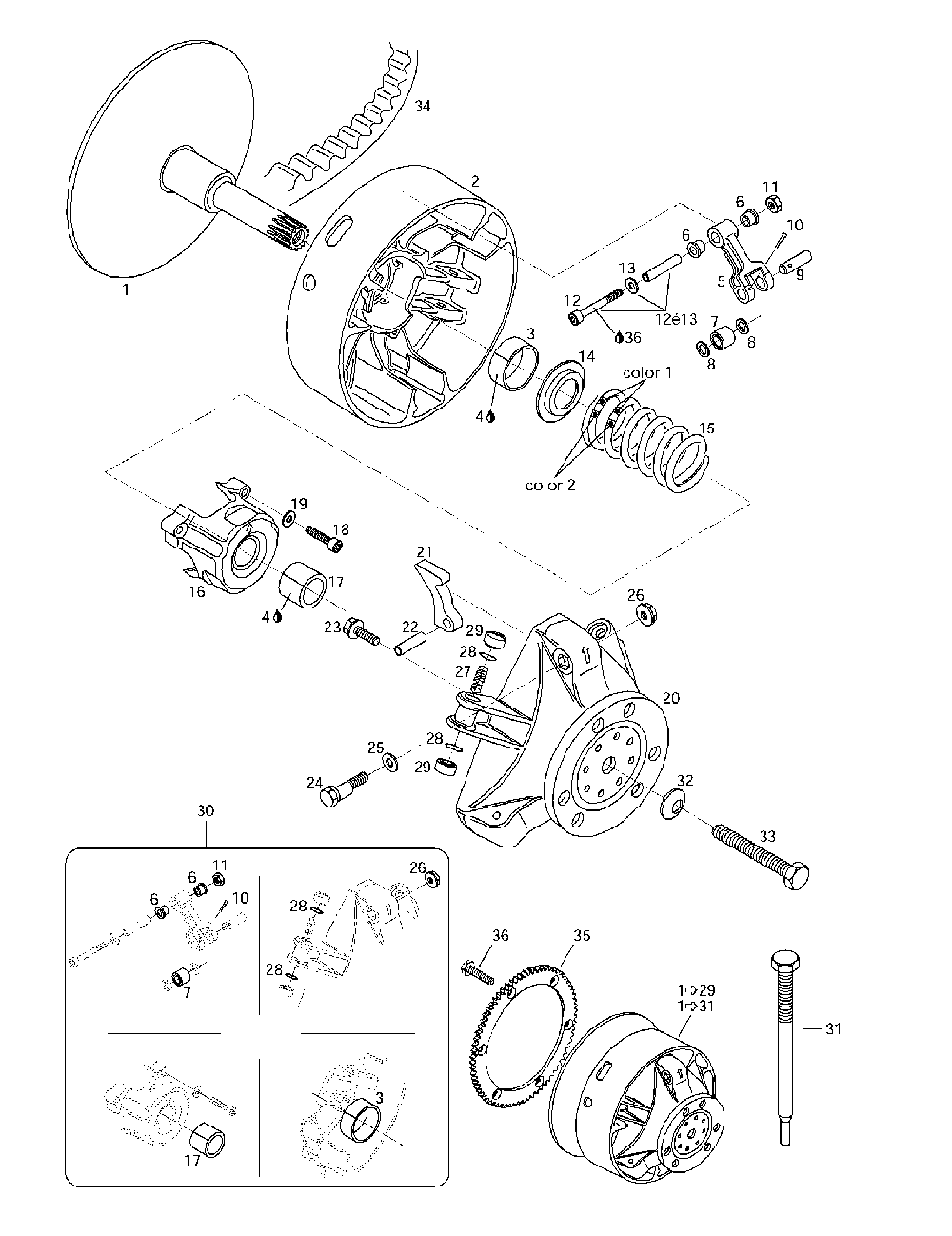

Вариатор Запчасти для снегоходов Ski-Doo (Bombardier) Skandic Wide Track LC (1997)

Вариатор

Ski-Doo (Bombardier) Skandic Wide Track LC

oem код

название

цена

417219400

Poulie Motrice *pulley-drive Includes 1 - 29. (incl. It. 35, 36) Skandic Wide Track Lc.

417222412

Flasque Fixe Us*flange-fix.mac Skandic Super Wide Track.

417222241

Flasque Coul.as*flange-slid.as Includes 2 - 3.

417004201

Втулка

413703100

Смазка Loctite 609

417222383

Levier Ass. *lever-assy Includes 5 - 6.

Втулка

Ролик

Шайба

Палец

Шплинт

Гайка с тефлоном

Vis Assemble *screw-ass Y Includes 12 - 13.

Винт

Шайба

Седло пружины

Ressort Embra. *spring-clutch Skandic Super Wide Track.

414639000

Ressort Tra *spring-tra Skandic Wide Track Lc.

417222304

Крышка пружины (включает 16-17)

417004501

Втулка

205064086

Screw-socket Hd.din.912 Gm6174m

420245370

Шайба

417222081

Cuvette Regul.a*govern.cup Assy.

417005146

Rampe 146 *ramp-146 Skandic Super Wide Track.

417005290

Rampe *ramp Skandic Wide Track Lc.

732804009

Pin-rolled Din.1481 M8 X 24

210361890

Screw-forming Hex.hd.black Oxide

417005500

Винт

420927941

Rondelle 6x12x1*washer-6x12x1 Skandic Super Wide Track.

417005600

Rondelle *washer Skandic Wide Track Lc.

Гайка Din.6927

Пружина

Кольцо

Glissiere *shoe-slider Skandic Super Wide Track.

417008500

Ens.rep.emb. *kit-clutch Rep Skandic Super Wide Track.

529007900

Extrac.poulie *puller-drive

250200005

Washer-spring Conical Skandic Super Wide Track.

250200006

Washer-spring Conical Skandic Wide Track Lc.

417113800

Boulon *bolt-pulley Drive Skandic Super Wide Track.

417120000

Boulon *bolt-pulley Drive Skandic Wide Track Lc.

414633800

Ремень вариатора

417222858

Cour.lancement *gear-ring Skandic Wide Track Lc.

236281684

Screw-forming Bn.hd.torx Skandic Wide Track Lc.

417223021

Glissiere *shoe-slider Skandic Wide Track Lc.

415043100

Cour.lancement *gear-ring 86th Skandic Wide Track Lc.
