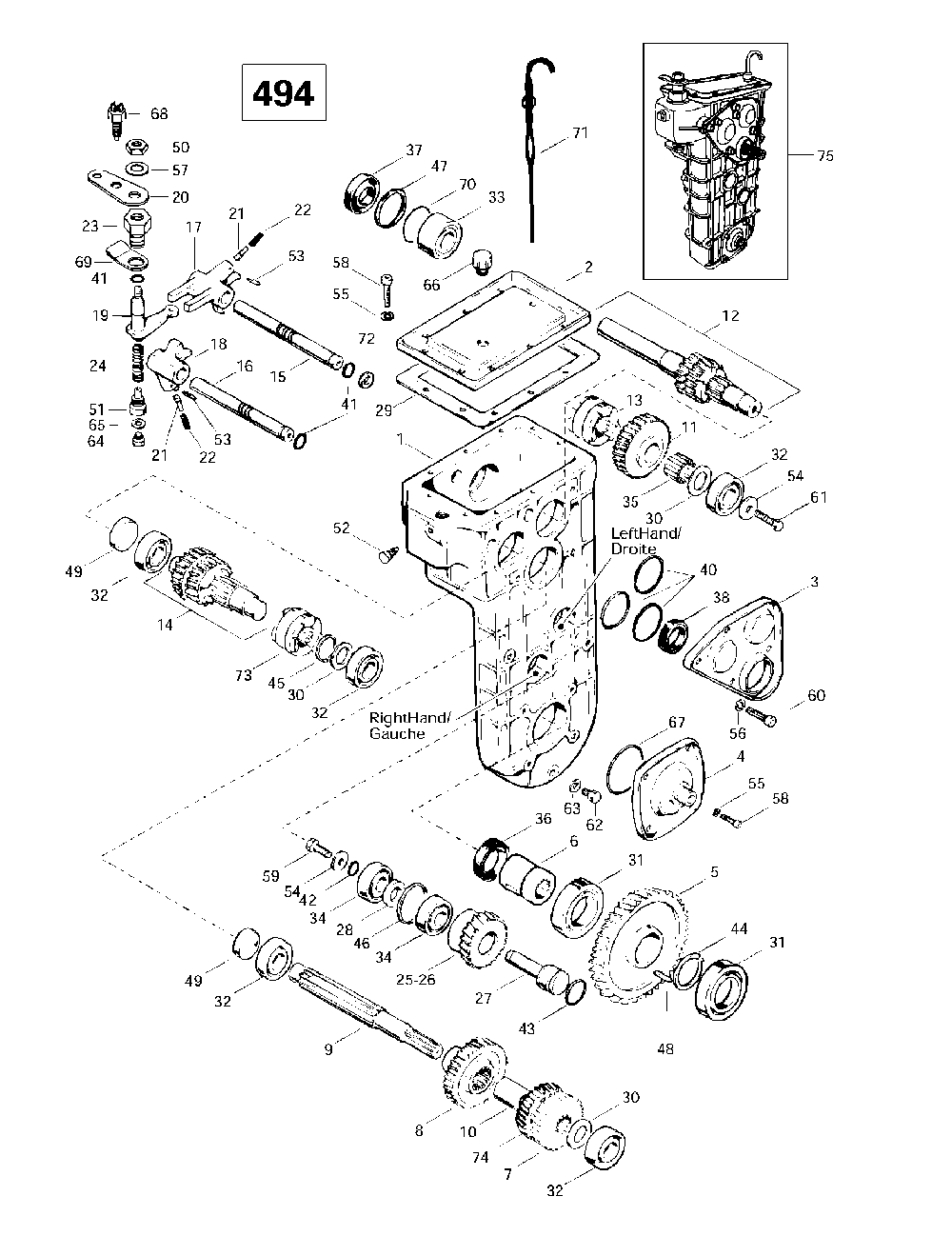

  6. 05- transmission (494)

05- transmission (494)

Ski-Doo (Bombardier) Skandic Wide Track LC
Ski-Doo (Bombardier)
#oem кодцена
1
M875147642
Carter Chaine U*case-chain Mach. Skandic Wide Track Lc.
2
M875156071
Couvercle *cover Skandic Wide Track Lc.
3
M875146116
Couvercle Cote *cover-side Skandic Wide Track Lc.
4
M875146416
Couv.cote Infe.*cover-lower Si Skandic Wide Track Lc.
5
M875155048
Roue Inf. *wheel Lower Skandic Wide Track Lc.
6
M875136962
Axe Inferieur *shaft-lower Skandic Wide Track Lc.
8
M875146043
Roue Dentee *sprocket Skandic Wide Track Lc.
9
M875147162
Axe *shaft Skandic Wide Track Lc.
10
M875146112
Douille *sleeve Skandic Wide Track Lc.
11
M875156124
Roue Dentee 30d*sprocket 30th Skandic Wide Track Lc.
12
M875146076
Arbre Intermed.*layshaft-assy Skandic Wide Track Lc.
13
M875156120
Roue Embrayage *wheel-clutch Skandic Wide Track Lc.
14
M875146049
Arbre *shaft Skandic Wide Track Lc.
15
M875146093
Levier Vitesse *shifter Skandic Wide Track Lc.
16
M875146094
Levier Vitesse *shifter Skandic Wide Track Lc.
17
M875147874
Fourchette Vit.*fork-gear Chan Skandic Wide Track Lc.
18
M875146019
Fourchette Vit.*fork-gear Chan Skandic Wide Track Lc.
19
M875146095
Levier *lever Skandic Wide Track Lc.
20
M875156004
Levier Vitesse *shifter Skandic Wide Track Lc.
21
M875119655
Goup.ressort *pin-spring Skandic Wide Track Lc.
22
M875147818
Ressort *spring Skandic Wide Track Lc.
23
M875156035
Douille *sleeve Skandic Wide Track Lc.
24
M875146111
Ressort *spring Skandic Wide Track Lc.
25
M875156083
Roue Dentee 33d*sprocket 33th Skandic Wide Track Lc.
26
M875147644
Roue Dentee 33d*sprocket 33th Skandic Wide Track Lc.
27
M875147204
Axe *shaft Skandic Wide Track Lc.
28
M875147205
Rondelle *washer Skandic Wide Track Lc.
29
M875146411
Joint Etanche *seal Skandic Wide Track Lc.
30
M616092035
Rondelle *washer Skandic Wide Track Lc.
31
M6008
Roulement Bille*ball Bearing Skandic Wide Track Lc.
32
M6304
Roulement Bille*ball Bearing Skandic Wide Track Lc.
33
M3205
Roulement Bille*ball Bearing Skandic Wide Track Lc.
34
M610063035
Roulement Bille*ball Bearing Skandic Wide Track Lc.
35
M611002529
Roul.aiguille *needle Bearing Skandic Wide Track Lc.
36
M2652101
Anneau Etanche *seal-oil Skandic Wide Track Lc.
37
M614102552
Anneau Etanche *seal-oil Skandic Wide Track Lc.
38
M614102040
Anneau Etanche *seal-oil Skandic Wide Track Lc.
40
M614605225
Joint Torique *o Ring Skandic Wide Track Lc.
41
M614601024
Joint Torique *o Ring Skandic Wide Track Lc.
42
M614601224
Joint Torique *o Ring Skandic Wide Track Lc.
43
M614602431
Joint Torique *o Ring Skandic Wide Track Lc.
44
M617300040
Circlip *circlip Skandic Wide Track Lc.
45
M617450028
Circlip *circlip Skandic Wide Track Lc.
46
M617330047
Circlip *circlip Skandic Wide Track Lc.
47
M31002
Circlip *circlip Skandic Wide Track Lc.
48
M603345070
Clavette *key Skandic Wide Track Lc.
49
M640016036
Bouchon *plug Skandic Wide Track Lc.
50
M505611402
Ecrou *nut Skandic Wide Track Lc.
51
M875146099
Porte-ressort *holder Skandic Wide Track Lc.
52
M875146697
Vis *screw Skandic Wide Track Lc.
53
M43030
Goupille Resso.*pin-spring Skandic Wide Track Lc.
54
M501150902
Rondelle *washer Skandic Wide Track Lc.
55
M500950602
Rondelle *washer-spring Skandic Wide Track Lc.
56
M500950802
Rondelle *washer-spring Skandic Wide Track Lc.
57
M500451402
Rondelle *washer-spring Skandic Wide Track Lc.
59
207181644
Screw-hex.cap Din.933 Skandic Wide Track Lc.
60
M581804582
Screw-allen Skandic Wide Track Lc.
61
207182044
Screw-hex.cap Din.933 Skandic Wide Track Lc.
62
222081065
Screw-hex.cap Din.933 Skandic Wide Track Lc.
63
M615580711
Anneau Joint *ring-gasket Skandic Wide Track Lc.
64
M640046008
Bouchon *plug Skandic Wide Track Lc.
65
M615580812
Anneau Joint *ring-gasket Skandic Wide Track Lc.
66
M33025
Bouchon *plug-plastic Skandic Wide Track Lc.
67
M614606825
Joint Torique *o Ring Skandic Wide Track Lc.
68
M654100224
Transmetteur *sender-backup Skandic Wide Track Lc.
70
M617394252
Cale Epaisseur *shim Skandic Wide Track Lc.
71
M875152352
Jauge A Huile *dipstick Skandic Wide Track Lc.
72
M617390915
Cale Epaisseur *shim-0.3 Skandic Wide Track Lc.
73
M875146948
Roue Embrayage *wheel-clutch Skandic Wide Track Lc.
74
M875147873
Roue Dentee 32d*sprocket 32th Skandic Wide Track Lc.
75
M870156119
Transmission *transmission Skandic Wide Track Lc.
34
M610063036
Roulement Bille*ball Bearing Skandic Wide Track Lc.
