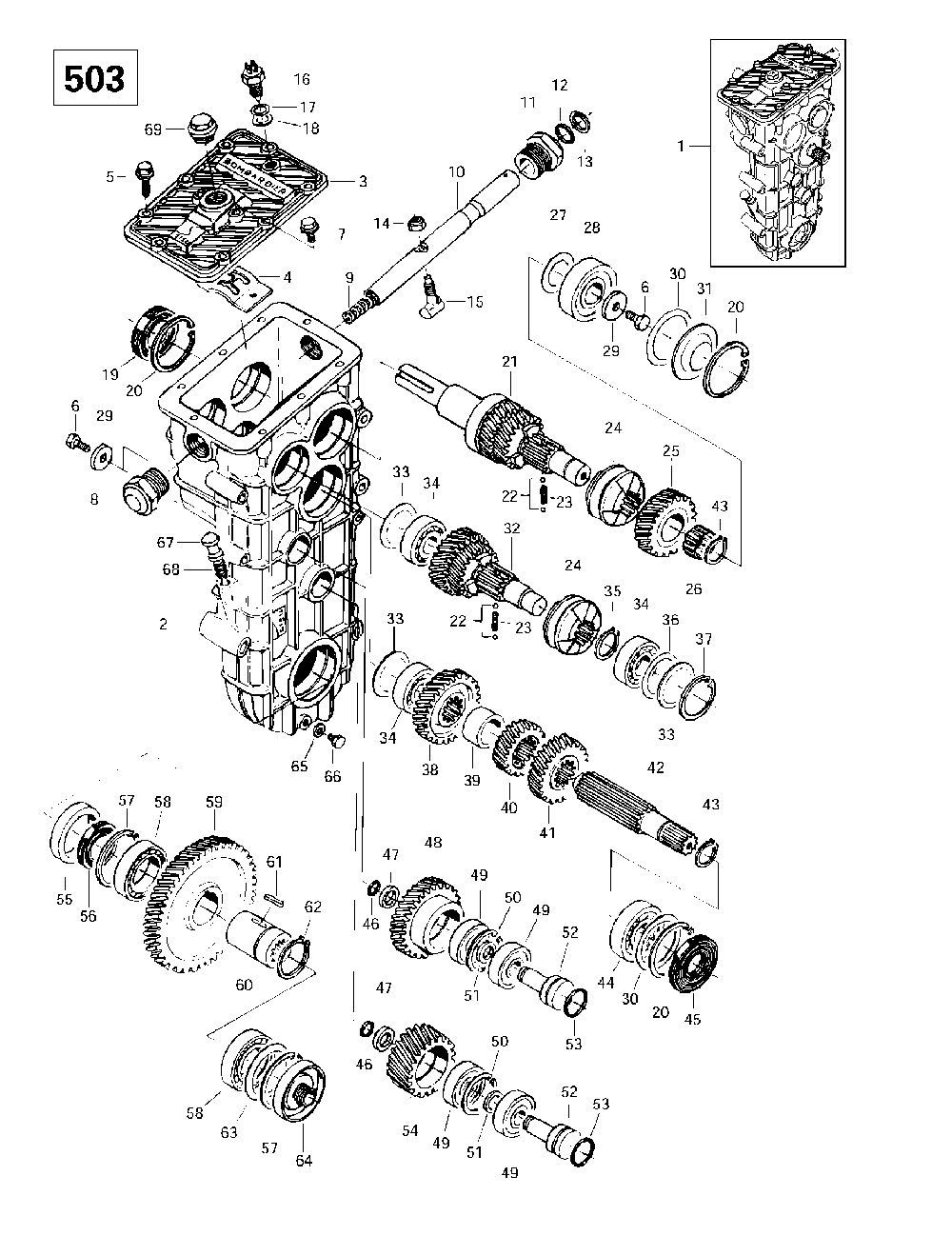

05- transmission (503)

Ski-Doo (Bombardier) Skandic Wide Track LC
Ski-Doo (Bombardier)
#oem кодцена
1
M870156137
Transmission *transmission Includes 1 - 69. Skandic Super Wide Track.
2
M875156138
Carter Chaine U*case-chain Mach. Skandic Super Wide Track.
3
M875156043
Couvercle *cover Skandic Super Wide Track.
4
M875156111
Schema En H *h-scheme Skandic Super Wide Track.
5
M537001402
Vis *screw Skandic Super Wide Track.
6
207182044
Screw-hex.cap Din.933 Skandic Super Wide Track.
8
M875156076
Ecrou A Douille*nut-sleeve Skandic Super Wide Track.
9
M875156078
Ressort *spring Skandic Super Wide Track.
10
M875156072
Axe *shaft Skandic Super Wide Track.
11
M875156077
Ecrou A Douille*nut-sleeve Skandic Super Wide Track.
13
M617460024
Anneau Blocage *ring-lock Skandic Super Wide Track.
14
M510611002
Ecrou *nut Skandic Super Wide Track.
15
M875156073
Tige *pin Skandic Super Wide Track.
16
M654100224
Transmetteur *sender-backup Skandic Super Wide Track.
17
M617391218
Cale *shim Skandic Super Wide Track.
18
M615581216
Joint Etanche *seal-ring Skandic Super Wide Track.
19
M614103562
Anneau Etanche *seal-oil Skandic Super Wide Track.
20
M617330062
Anneau Blocage *ring-lock Skandic Super Wide Track.
21
M875156065
Arbre *shaft-variator Skandic Super Wide Track.
22
M616810064
Bille *ball Skandic Super Wide Track.
23
M875156105
Ressort *spring Skandic Super Wide Track.
24
M875156005
Roue Embrayage *wheel-clutch Skandic Super Wide Track.
25
M875156052
Roue Dentee 27d*sprocket 27th Skandic Super Wide Track.
26
M611002529
Roul.aiguille *needle Bearing Skandic Super Wide Track.
27
M616092542
Rondelle *washer-axial Skandic Super Wide Track.
28
M610063054
Roulement Bille*ball Bearing Skandic Super Wide Track.
29
M875156099
Rondelle *washer Skandic Super Wide Track.
30
M617395065
Cale Epaisseur *shim Skandic Super Wide Track.
31
M614100062
Bouchon *plug Skandic Super Wide Track.
32
M875156068
Axe *shaft-reverse Skandic Super Wide Track.
33
M875152953
Bouchon *plug Skandic Super Wide Track.
34
M610063044
Roulement Bille*ball Bearing Skandic Super Wide Track.
35
M617450028
Circlip *circlip Skandic Super Wide Track.
37
M31002
Circlip *circlip Skandic Super Wide Track.
38
M875156054
Roue Dentee 34d*sprocket 34th Skandic Super Wide Track.
39
M875156088
Douille *sleeve Skandic Super Wide Track.
40
M875156060
Roue Dentee 24d*sprocket 24th Skandic Super Wide Track.
41
M875156051
Roue Dentee 29d*sprocket 29th Skandic Super Wide Track.
42
M875156069
Axe *shaft Skandic Super Wide Track.
43
M617450025
Circlip *circlip Skandic Super Wide Track.
44
M610063050
Roulement Bille*ball Bearing Skandic Super Wide Track.
45
M614102562
Anneau Etanche *seal-oil Skandic Super Wide Track.
46
M614601224
Joint Torique *o Ring Skandic Super Wide Track.
47
M875156094
Bague *ring Skandic Super Wide Track.
48
M875156059
Roue Dentee 33d*sprocket 33th Skandic Super Wide Track.
49
M610063035
Roulement Bille*ball Bearing Skandic Super Wide Track.
50
M617330047
Circlip *circlip Skandic Super Wide Track.
51
M875147205
Rondelle *washer Skandic Super Wide Track.
52
M875147204
Axe *shaft Skandic Super Wide Track.
53
M614602431
Joint Torique *o Ring Skandic Super Wide Track.
54
M875156058
Roue Dentee 26d*sprocket 26th Skandic Super Wide Track.
55
M875156091
Douille *sleeve Skandic Super Wide Track.
56
M2652101
Anneau Etanche *seal-oil Skandic Super Wide Track.
57
M617330068
Circlip *circlip Skandic Super Wide Track.
58
M6008
Roulement Bille*ball Bearing Skandic Super Wide Track.
59
M875156057
Roue Dentee 59d*sprocket 59th Skandic Super Wide Track.
60
M875136962
Axe Inferieur *shaft-lower Skandic Super Wide Track.
61
M603345070
Clavette *key Skandic Super Wide Track.
62
M617300040
Circlip *circlip Skandic Super Wide Track.
63
M617395568
Cale Epaisseur *shim Skandic Super Wide Track.
64
M875156104
Bouchon *plug Skandic Super Wide Track.
65
M615580812
Anneau Joint *ring-gasket Skandic Super Wide Track.
66
M528801342
Bouchon *plug Skandic Super Wide Track.
67
M875156097
Bouchon Remp.as*cap-filler Ass. Skandic Super Wide Track.
68
M614600752
Joint Torique *o Ring Skandic Super Wide Track.
69
M875156098
Bouchon *plug Skandic Super Wide Track.
70
M614100052
Заглушка
49
M610063036
Roulement Bille*ball Bearing Skandic Super Wide Track.
1
M870156110
Transmission *transmission Includes 1 - 69. Skandic Super Wide Track.
