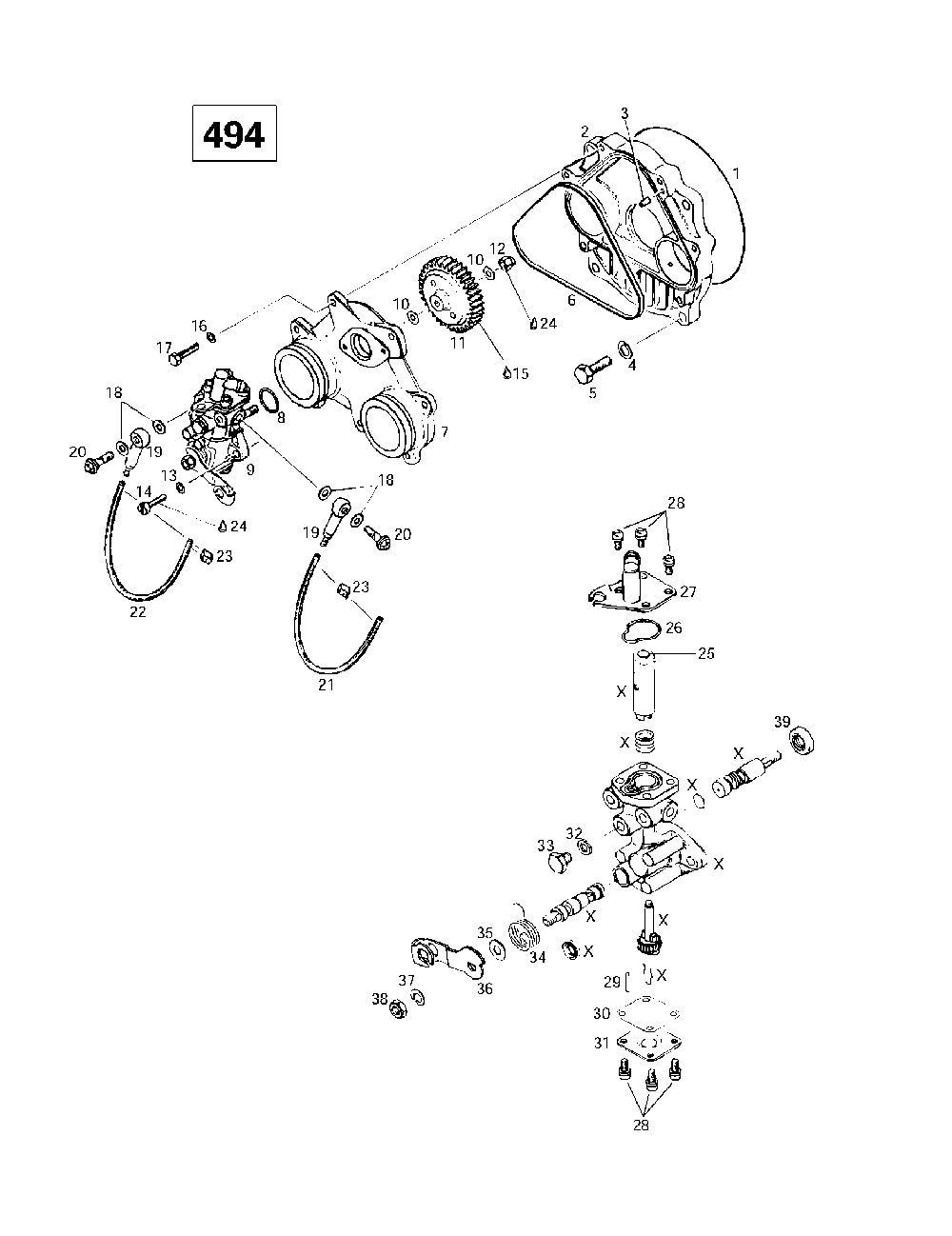

02- oil injection system (494)

Ski-Doo (Bombardier) Skandic Wide Track LC
Ski-Doo (Bombardier)
#oem кодцена
1
293300023
Joint Torique *o-ring Skandic Wide Track Lc.
2
420910312
Couvercle Ass. *cover-assy. Skandic Wide Track Lc.
3
420929650
Goupille Ass. *guide Pin Skandic Wide Track Lc.
4
420945752
Washer-lock Din.128 Skandic Wide Track Lc.
5
207182044
Screw-hex.cap Din.933 Skandic Wide Track Lc.
6
420831700
Bague Caout. *ring-rubber Skandic Wide Track Lc.
7
420910320
Epaul.pompe *flange-pump Skandic Wide Track Lc.
8
293300018
Joint Torique *o-ring Skandic Wide Track Lc.
9
420995522
Pompe A Huile *pump-oil Assy. (incl. It. 25-39) Skandic Wide Track Lc.
10
420927945
Washer-flat 6, 2x12x1 Skandic Wide Track Lc.
11
420935940
Engrenage Pompe*gear-oil Pump Skandic Wide Track Lc.
12
232561414
Nut-stop Elastic Din.985 Skandic Wide Track Lc.
13
420945750
Rondelle-frein *washer-lock#5 Skandic Wide Track Lc.
14
420240761
Screw-cyl.m5 X 16 Skandic Wide Track Lc.
15
413707000
Dow Corning 111*dow Corning 111 Skandic Wide Track Lc.
16
420945751
Washer-lock Din.128 Skandic Wide Track Lc.
17
207162044
Screw-hex.cap Din.933 Skandic Wide Track Lc.
18
404146600
Rondelle Etanch*washer-sealing Skandic Wide Track Lc.
19
420956010
Soupape Ass. *valve-assy. Skandic Wide Track Lc.
20
404146800
Bolt-banjo M6 X 16 Skandic Wide Track Lc.
21
414413800
Boyau D Huile *hose-oil Skandic Wide Track Lc.
23
420853840
Bride *clamp Skandic Wide Track Lc.
24
293800060
Loctite 243 *loctite-243 Skandic Wide Track Lc.
26
293300019
Joint Torique *o-ring Skandic Wide Track Lc.
28
420241975
Screw-with Stopper M4 X 8 Skandic Wide Track Lc.
30
420850200
Joint Etanche *gasket Skandic Wide Track Lc.
32
420227505
Rondelle Etanch*washer-seal Skandic Wide Track Lc.
33
420841580
Screw-hex.m6 X 8 Skandic Wide Track Lc.
36
404146700
Levier Controle*lever-control Skandic Wide Track Lc.
38
420242623
Nut-hex.m6 Skandic Wide Track Lc.
39
404157800
Anneau Etanche *seal-oil Skandic Wide Track Lc.
22
414413800
Boyau D Huile *hose-oil Skandic Wide Track Lc.
37
420945751
Washer-lock Din.128 Skandic Wide Track Lc.
