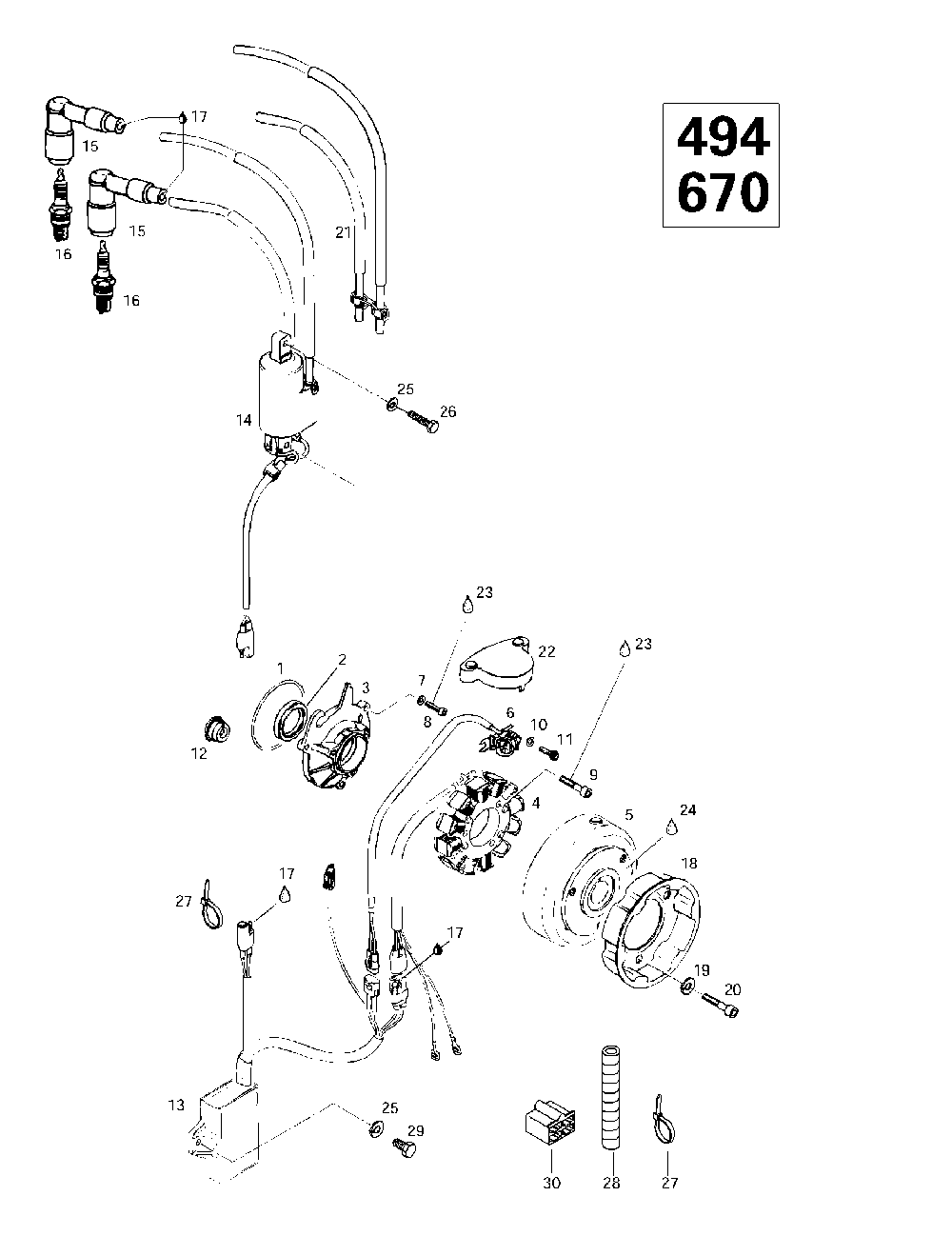

03- magneto 12v 220w (494, 670)

Ski-Doo (Bombardier) Summit 500/583/670
Ski-Doo (Bombardier)
#oem кодцена
1
420850430
Joint Torique *o Ring Summit 500. Summit 670.
2
420930695
Anneau Etanche *seal-oil Summit 500. Summit 670.
3
420810265
Plateau Armat. *plate-armat. Summit 500. Summit 670.
4
410920200
Magneto Gen. *magneto-gen. Includes 4 - 6. Summit 500. Summit 670.
4
410919000
Plaque Reacteur*plate-stator A Summit 500. Summit 670.
5
410920300
Volant Moteur *flywheel Summit 500. Summit 670.
6
410916700
Capteur Ass. *pickup-assy. Summit 500. Summit 670.
7
420945750
Rondelle-frein *washer-lock#5 Summit 500. Summit 670.
8
420941540
Screw-allen M5x20 Din.6912 Summit 500. Summit 670.
9
420840886
Screw-cyl.m6x30 Din 6912 Summit 500. Summit 670.
10
420827800
Rondelle *washer Summit 500. Summit 670.
11
420840511
Screw-allen M5 X 16 Summit 500. Summit 670.
12
420960288
Passe-cable *grommet-cable Summit 500. Summit 670.
13
278000631
Cosse Male *terminal-male Summit 500. Summit 670.
13
278000632
Cosse Femelle *terminal-femal Summit 500. Summit 670.
13
409206900
Logement Male *housing-male Summit 500. Summit 670.
13
409207100
Verrou Femelle *lock-female Summit 500. Summit 670.
13
409207200
Verrou Femelle *lock-female Summit 500. Summit 670.
13
409207300
.logement Femel.*housing-female Summit 500. Summit 670.
13
409207400
Logement Femel.*housing-female Summit 500. Summit 670.
13
409207500
Verrou Male *lock-male Summit 500. Summit 670.
13
415085300
Module Allumage*module-ignition Summit 500. Summit 670.
14
410920500
Bobine Allumage*coil-ignition Summit 500.
410920700
Bobine Allumage*coil-ignition Summit 670.
15
414569200
Prot.bougie *prot-spark Plu Summit 500.
414864000
Capuchon Bougie*spark Plug Cap Summit 670.
16
414961100
Bougie Br9es *spark Plug Summit 500. Summit 670.
17
413706100
Graisse Lith. *grease Lith. Summit 500. Summit 670.
18
420852416
Poulie Demarrag*pull.-starting Summit 500. Summit 670.
19
420945752
Washer-lock Din.128 Summit 500. Summit 670.
20
420841520
Screw-allen M8 X 12 Summit 500. Summit 670.
21
278002198
Fil Bougie *wire-spark Plug Summit 500.
22
420810700
Couvercle *cover-pick Up Summit 500. Summit 670.
23
293800060
Loctite 243 *loctite-243 Summit 500. Summit 670.
24
413711400
Loctite 648 *loctite-648 Summit 500. Summit 670.
25
234161471
Washer-lock Black Din.127b Summit 500. Summit 670.
26
207162044
Screw-hex.cap Din.933 Summit 500. Summit 670.
27
414115200
Tie-rap 180 Mm Summit 500. Summit 670.
28
410904000
Gaine Spirale *tubing-spiral Summit 500. Summit 670.
29
207161644
Screw-hex.cap Din.933 Summit 500. Summit 670.
30
409204900
Logement Femel.*housing-female Summit 500. Summit 670.
18
420852590
Pull-starting Summit 500. Summit 670.
278002198
Fil Bougie *wire-spark Plug Summit 670.
