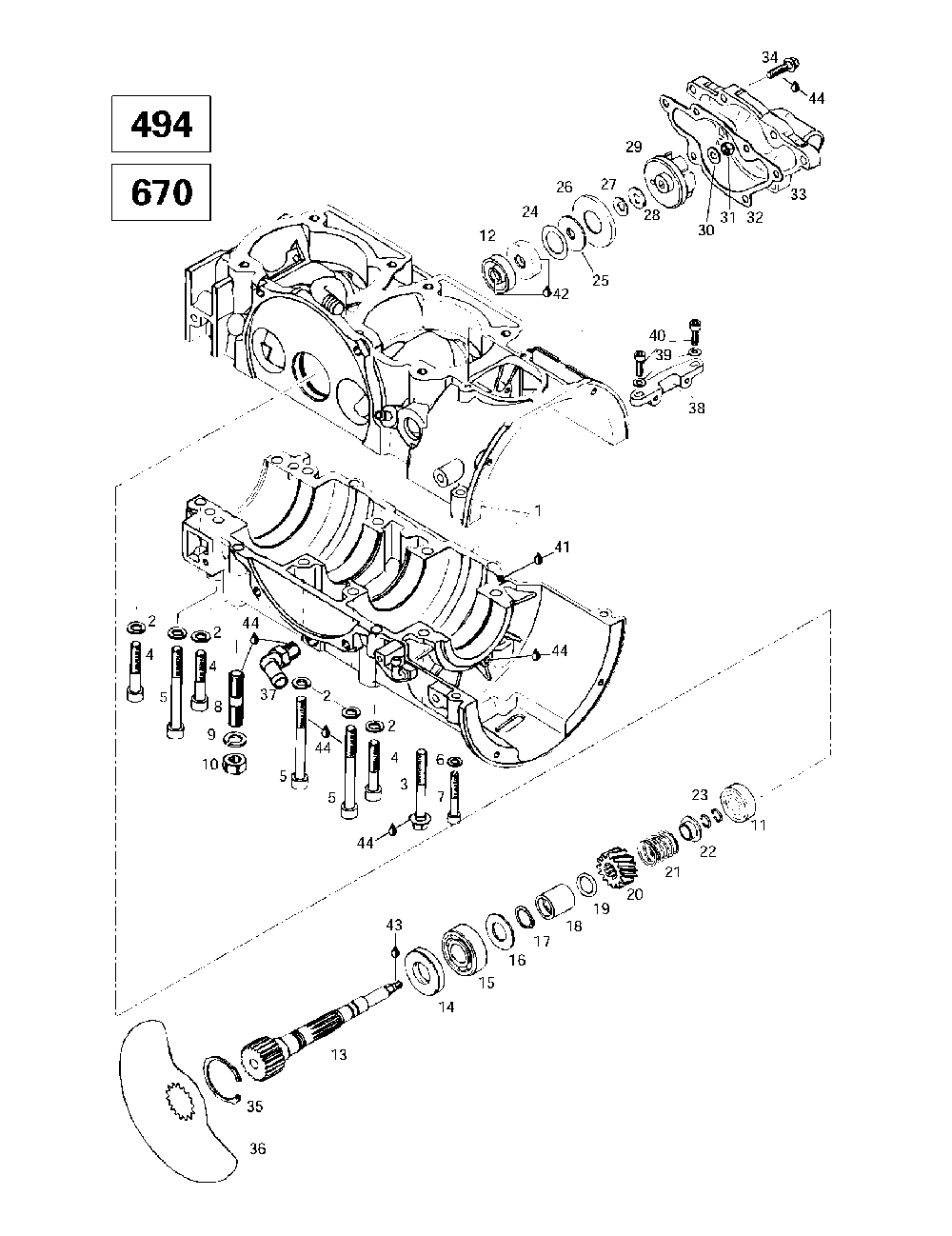

01- crankcase, rotary valve, water pump (494, 670)

Ski-Doo (Bombardier) Summit 500/583/670
Ski-Doo (Bombardier)
#oem кодцена
420887516
Carter Moteur *crankcase-assy Summit 670.
2
420945752
Washer-lock Din.128 Summit 500. Summit 583. .
3
420841306
Screw-hex Collar M8x65 Sw 11 Summit 500. Summit 670.
4
420841561
Screw-allen M8 X 45 Summit 500. Summit 583. .
5
420841831
Screw-allen M8x75 Summit 500. Summit 583. .
6
420945751
Washer-lock Din.128 Summit 500. Summit 583. .
7
420241816
Screw-allen M6 X 40 Summit 500. Summit 583. .
8
420940190
Stud-m10 X 29/20 Summit 500. Summit 670.
9
420945753
Rondelle-frein *washer-lock#10 Summit 500. Summit 583. .
10
232006414
Nut-hexagonal Din.934 Summit 500. Summit 670.
11
420932797
Roulement Bille*ball Bearing Summit 500. Summit 670.
12
420850711
Anneau Etanche *seal-oil Summit 500. Summit 670.
13
420837243
Arbre Valve Rot*shaft-rotary Valve Summit 500. Summit 670.
14
420930580
Anneau Etanche *seal-oil Summit 500. Summit 670.
15
293350051
Roulement Bille*ball Bearing Summit 500. Summit 670.
16
420227439
Cale Epaisseur *shim Summit 500. Summit 670.
17
420845450
Bague D Arret *ring-lock Summit 500. Summit 670.
18
420847282
Douille Ecart. *bushing-spacer Summit 500. Summit 670.
19
293300024
Joint Torique *o-ring Summit 500. Summit 670.
20
420935735
Roue Dentee 14d*sprocket 14th Summit 500. Summit 670.
21
420938810
Ressort *spring Summit 500. Summit 670.
22
420827430
Siege Ressort *seat-spring Summit 500. Summit 670.
23
420845160
Circlip *circlip Summit 500. Summit 670.
24
420944462
Cale Epaisseur *shim Summit 500. Summit 670.
25
420850890
Rondelle *washer-rubber Summit 500. Summit 670.
26
420827970
Plaque *plate Summit 500. Summit 670.
27
420227945
Rondelle *washer Summit 500. Summit 670.
28
420227155
Rondelle *washer Summit 500. Summit 670.
29
420922036
Turbine A Eau *impeller-water Summit 500. Summit 670.
30
224061121
Washer-flat Summit 500. Summit 670.
31
420842042
Ecrou M6 *nut-locking M6 Summit 500. Summit 670.
32
420931355
Joint *gasket Summit 500. Summit 670.
33
420922551
Log.pompe Eau *hous-waterpump Summit 500. Summit 670.
34
420240031
Screw-hex.m6 X 25 Summit 500. Summit 670.
35
420845260
Bague D Arret *ring-lock Summit 500. Summit 670.
36
420924508
Valve Rotative *valve-rotary Summit 500.
420924500
Valve Rotative *valve-rotary Summit 670.
37
420922245
Tube Angulaire *tube-angular Summit 500. Summit 670.
38
420851280
Fixation *fixation Summit 500. Summit 670.
39
420827800
Rondelle *washer Summit 500. Summit 670.
40
420240181
Screw-allen M5 X 20 Summit 500. Summit 670.
42
413707000
Dow Corning 111*dow Corning 111 Summit 500. Summit 670.
43
413711400
Loctite 648 *loctite-648 Summit 500. Summit 670.
44
293800060
Loctite 243 *loctite-243 Summit 500. Summit 670.
