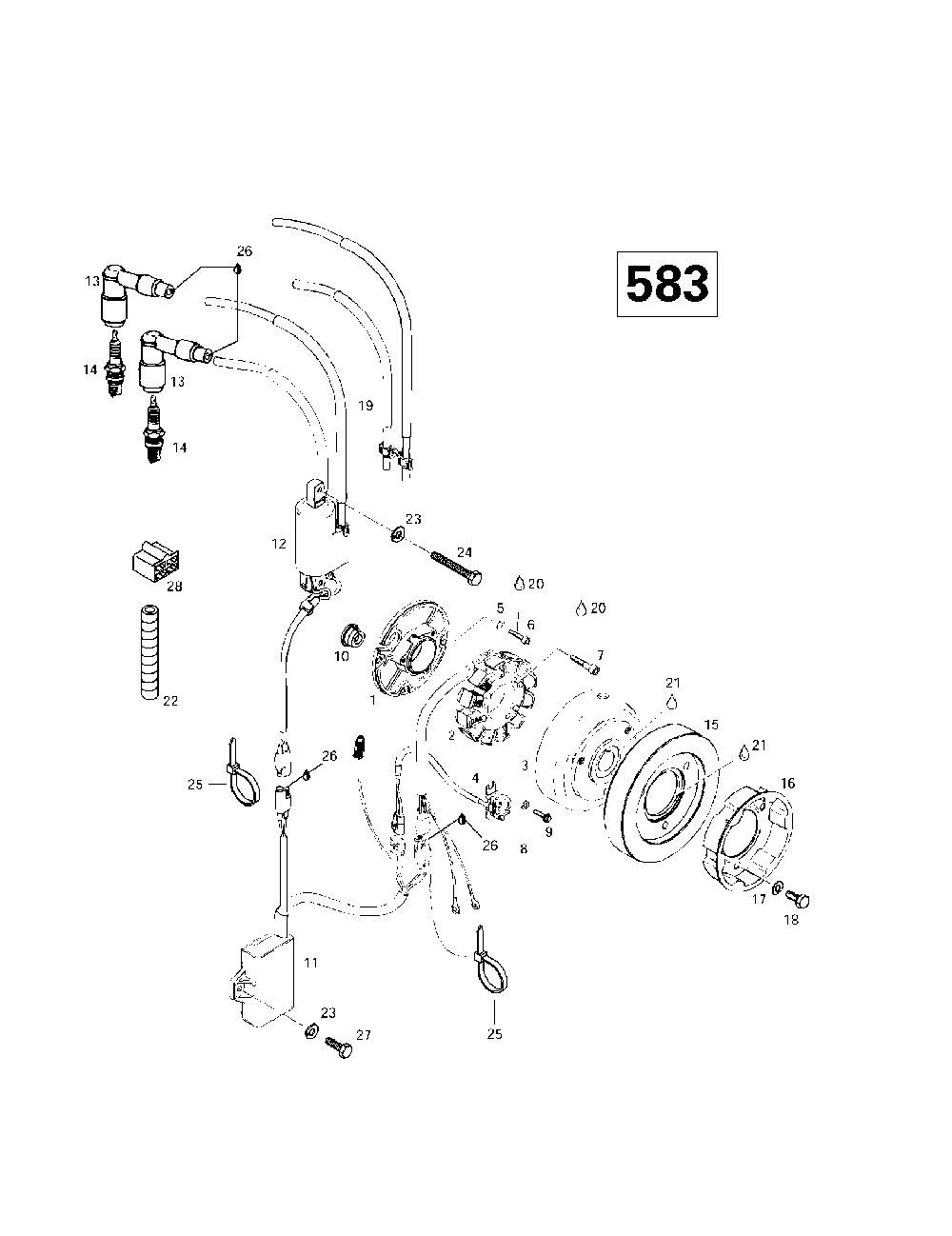

Магнето 12v 220w (583)

Ski-Doo (Bombardier) Summit 500/583/670
Ski-Doo (Bombardier)
#oem кодцена
1
420810262
Plateau Armat. *plate-armat. Summit 583.
2
410918600
Magneto Gen. *magneto-gen. Includes 2 - 4. Summit 583.
2
410919000
Plaque Reacteur*plate-stator A Summit 583.
3
410919100
Volant Moteur *flywheel Summit 583.
4
410916700
Capteur Ass. *pickup-assy. Summit 583.
5
420945750
Rondelle-frein *washer-lock#5 Summit 583.
6
420941540
Screw-allen M5x20 Din.6912 Summit 583.
7
420840886
Screw-cyl.m6x30 Din 6912 Summit 583.
8
420827800
Rondelle *washer Summit 583.
9
420941925
Screw-tapping M5 X 16 Summit 583.
10
420960288
Passe-cable *grommet-cable Summit 583.
11
278000631
Cosse Male *terminal-male Summit 583.
11
278000632
Cosse Femelle *terminal-femal Summit 583.
11
409206900
Logement Male *housing-male Summit 583.
11
409207100
Verrou Femelle *lock-female Summit 583.
11
409207200
Verrou Femelle *lock-female Summit 583.
11
409207300
.logement Femel.*housing-female Summit 583.
11
409207400
Logement Femel.*housing-female Summit 583.
11
409207500
Verrou Male *lock-male Summit 583.
11
415085300
Module Allumage*module-ignition Summit 583.
12
410920500
Bobine Allumage*coil-ignition Summit 583.
13
414569200
Prot.bougie *prot-spark Plu Summit 583.
14
414961100
Bougie Br9es *spark Plug Summit 583.
15
420866759
Contrepoids *flywheel Summit 583.
16
420852411
Poulie Demarrag*pull.-starting Summit 583.
17
420945752
Washer-lock Din.128 Summit 583.
18
207182044
Screw-hex.cap Din.933 Summit 583.
19
278002198
Fil Bougie *wire-spark Plug Summit 583.
20
293800060
Loctite 243 *loctite-243 Summit 583.
21
413711400
Loctite 648 *loctite-648 Summit 583.
22
410904000
Gaine Spirale *tubing-spiral Summit 583.
23
234161471
Washer-lock Black Din.127b Summit 583.
24
207162044
Screw-hex.cap Din.933 Summit 583.
25
414115200
Tie-rap 180 Mm Summit 583.
26
413706100
Graisse Lith. *grease Lith. Summit 583.
27
207161644
Screw-hex.cap Din.933 Summit 583.
28
409204900
Logement Femel.*housing-female Summit 583.
