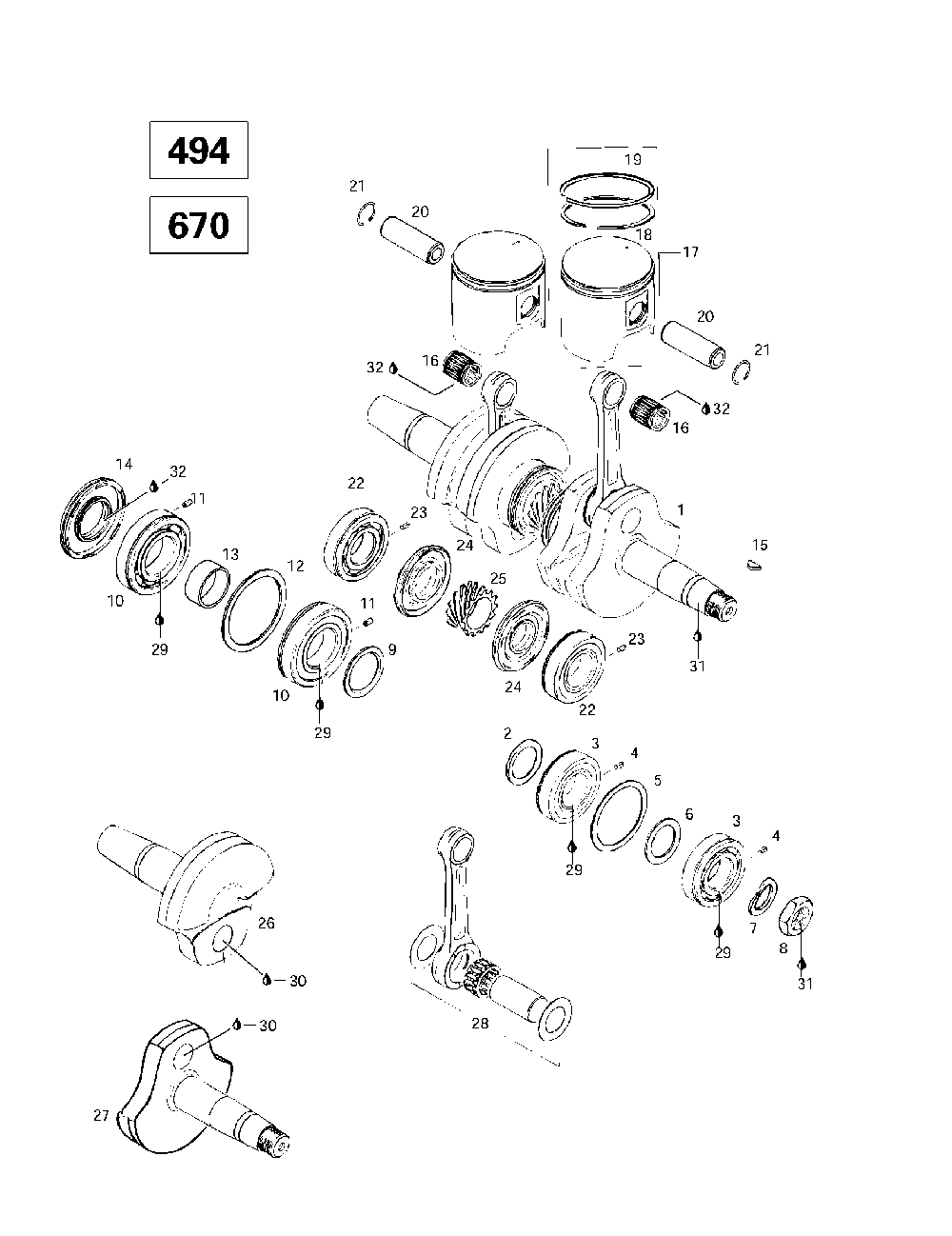

01- crankshaft and pistons (494, 670)

Ski-Doo (Bombardier) Summit 500/583/670
Ski-Doo (Bombardier)
#oem кодцена
1
421000151
Vilebreq.refait*crank-rebuild 494 96 Includes 1 - 15. (it. 7 & 8 Not Included) Summit 500.
420887980
Vilebrequin *crankshaft (it. 7 & 8 Not Included) Summit 670.
2
420827445
Bague Ecart. *ring-distance Summit 500. Summit 670.
3
420832538
Roulement Bille*ball Bearing Includes 3 - 4. Summit 500. Summit 670.
4
420929972
Goupille Ressor*pin-roll Summit 500. Summit 670.
5
420427684
Rondelle Ajus *washer-adj. Summit 500. Summit 670.
6
420827050
Disque Retenue *disk-retaining Summit 500. Summit 670.
7
420945759
Rondelle-frein *washer-lock 22 Summit 500. Summit 670.
8
420842234
Nut-hex.m22 X 1, 5 Summit 500. Summit 670.
9
420827760
Bague Ecart. *ring-distance Summit 500. Summit 670.
10
420832573
Roulement Bille*ball Bearing Includes 10 - 11. Summit 500. Summit 670.
12
420927710
Disque Retenue *disk-retaining Summit 500. Summit 670.
13
420847684
Douille *sleeve-dista. Summit 500. Summit 670.
14
420831952
Anneau Etanche *seal-oil Summit 500. Summit 670.
15
420246015
Clavette *key-woodruff Summit 500. Summit 670.
16
420832438
Roul.aiguille *needle Bearing Summit 500.
420832428
Roul.aiguille *needle Bearing Summit 670.
17
420887555
Piston *piston Includes 17 - 19. Summit 500.
420887612
Piston 77, 90 *piston-77, 90 Summit 670.
420887556
Piston *piston Summit 500.
420887613
Piston 78, 15 *piston-78, 15 Summit 670.
18
420915985
Segment R 69.5 *ring-r 69.5 Summit 500.
420815025
Segment R 78.0 *ring-r 78.0 Summit 670.
420915986
Segment R 69.75*ring-r 69.75 Summit 500.
19
420815043
Segment Semi-tr*ring-semi Trap Summit 500.
420815090
Segment Semi-tr*ring-semi Trap Summit 670.
420815044
Segment Semi-tr*ring-semi Trap Summit 500.
420815091
Segment Semi-tr*ring-semi Trap Summit 670.
20
420916186
Axe De Piston *pin-gudgeon Summit 500.
420916371
Axe De Piston *pin-gudgeon Summit 670.
21
420945735
Circlip Piston *circlip-piston Summit 500.
420845100
Circlip #20 *circlip-#20 Summit 670.
24
420831990
Anneau Etanche *seal-oil Summit 500. Summit 670.
25
420935748
Engrenage Cent.*gear-central Summit 500. Summit 670.
26
420818660
Vilebrequin Pto*crankshaft-pto Summit 500.
420818704
Vilebrequin Pto*crankshaft-pto Summit 670.
27
420818690
Vilebrequin Mag*crankshaft-mag Summit 500.
420818733
Demi-vileb.mag.*half-crank Mag Summit 670.
28
420886955
Ens.tige Rep. *kit-rod Repair Pto Summit 500.
420887988
Tige Rep.pto. *rod-repair Pto. Summit 670.
420886956
Ens.tige Rep. *kit-rod Repair Mag Summit 500.
420887989
Tige Rep.mag. *rod-repair Mag. Summit 670.
30
413711400
Loctite 648 *loctite-648 Summit 500. Summit 670.
31
293800060
Loctite 243 *loctite-243 Summit 500. Summit 670.
32
413707000
Dow Corning 111*dow Corning 111 Summit 500. Summit 670.
420832445
Roul.aiguille *needle Bearing Summit 670.
420818732
Demi-vileb.mag.*half-crank Mag Summit 670.
420887039
Tige Rep.mag. *rod-repair Mag. Summit 670.
8
420842239
Ecrou*hex Nut M22x1, 5 Summit 500. Summit 670.
11
420929972
Goupille Ressor*pin-roll Summit 500. Summit 670.
22
420832538
Roulement Bille*ball Bearing Includes 22 - 23. Summit 500. Summit 670.
23
420929972
Goupille Ressor*pin-roll Summit 500. Summit 670.
