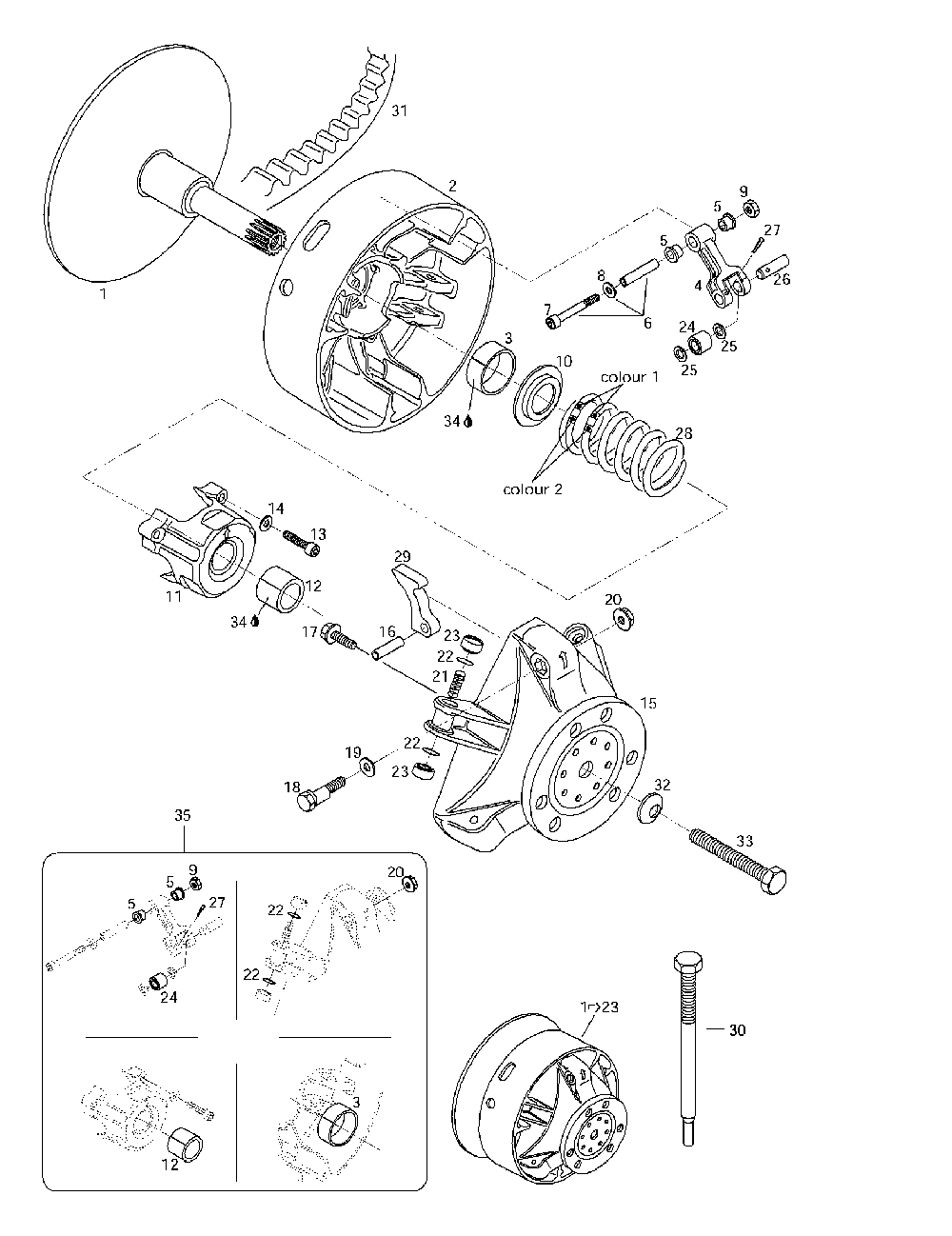

Вариатор

Ski-Doo (Bombardier) Summit 500/583/670
Ski-Doo (Bombardier)
#oem кодцена
1
417215700
Poulie Motrice *pulley-drive Includes 1 - 23. Summit 583.
417215900
Poulie Motrice *pulley-drive Summit 500. Summit 670.
1
417222412
Flasque Fixe Us*flange-fix.mac Summit 583.
2
417222241
Flasque Coul.as*flange-slid.as Includes 2 - 3.
3
417004201
Втулка
4
417222383
Levier Ass. *lever-assy Includes 4 - 5.
5
417004305
Втулка
6
417004800
Vis Assemble *screw-ass Y Includes 6 - 8.
7
205065044
Винт
8
234061410
Шайба
9
232561414
Гайка с тефлоном
10
417222044
Седло пружины
11
417222304
Couvercle *spring Cover Includes 11 - 12.
12
417004501
Втулка
13
205064086
Screw-socket Hd.din.912 Gm6174m
14
420245370
Шайба
15
417222081
Cuvette Regul.a*govern.cup Assy.
16
732804009
Pin-rolled Din.1481 M8 X 24
17
210361890
Screw-forming Hex.hd.black Oxide
18
417005500
Винт
19
417005600
Шайба
20
233061414
Гайка Din.6927
21
417005700
Пружина
22
732401030
Кольцо
23
417223021
Скользящая опора
24
417222947
Ролик
25
417004302
Шайба
26
417004309
Палец
27
732958001
Шплинт
28
414991400
Ressort Tra. *spring-tra. Summit 500.
414768200
Ressort Tra *spring-tra Summit 583.
415015300
Ressort *spring Summit 670.
29
417005287
Rampe 287 *ramp-287 Summit 500.
417005285
Rampe 285 *ramp-285 Summit 583.
417005286
Rampe 286 *ramp-286 Summit 670.
30
529007900
Extrac.poulie *puller-drive Summit 500. Summit 583.
529022400
Extrac.poulie *puller-drive Summit 670.
31
414860700
Courroie *belt-drive Summit 500.
417300067
Courroie *belt-drive Summit 583. Summit 670.
32
250200005
Washer-spring Conical Summit 583.
250200006
Washer-spring Conical Summit 500. Summit 670.
33
417120000
Boulon *bolt-pulley Drive Summit 500. Summit 670.
417120100
Boulon *bolt-pulley Drive Summit 583.
34
413703100
Смазка Loctite 609
35
417006100
Ens.rep.emb. *kit-clutch Rep
24
417003900
Ролик
