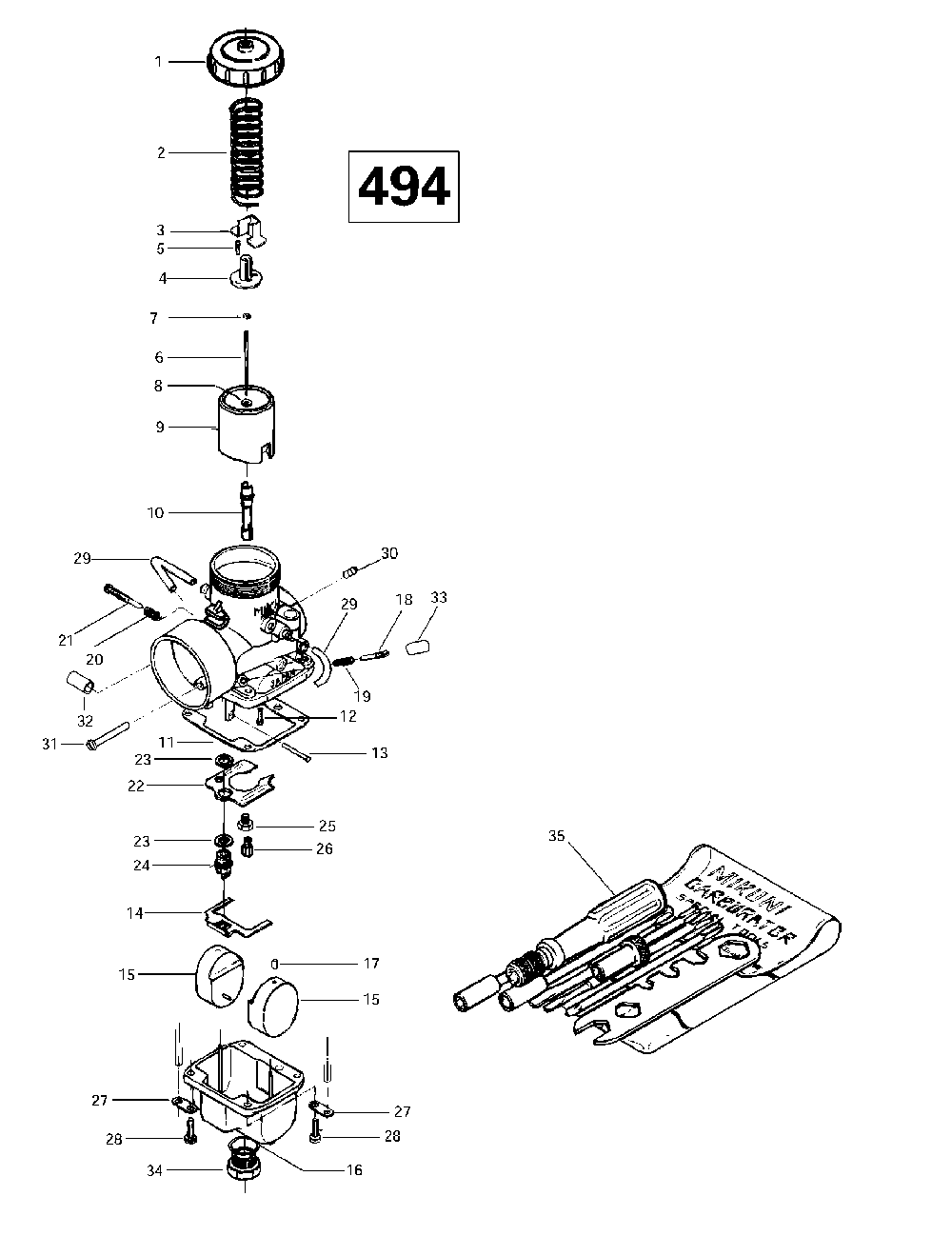

02- carburetors (494)

Ski-Doo (Bombardier) Summit 500/583/670
Ski-Doo (Bombardier)
#oem кодцена
1
403130900
Carb.vm-38 *carb-vm-38 Includes 1 - 34. Summit 500.
1
403131000
Carb.vm-38 *carb-vm-38 Includes 1 - 34. Summit 500.
1
404105100
Couvercle Carb.*top-mix.chamb. Summit 500.
2
404154800
Ressort *spring Summit 500.
3
404122100
Couvercle *cover Summit 500.
4
404160800
Connecteur *connector Summit 500.
5
404121300
Vis W.rondelle*screw-with Washer Summit 500.
6
404156800
Aiguille 6fey01*needle Summit 500.
7
404152400
Rondelle E *ring-e Summit 500.
8
404107000
Gicleur Aiguil.*jet Needle Summit 500.
9
404131300
Tiroir Acc.2.5 *piston-val.2.5 Summit 500.
10
404157000
Gicleur Aiguil.*jet Needle Summit 500.
11
404104700
Joint *gasket Summit 500.
12
404148100
Gicleur Ralenti*jet-pilot 75 Summit 500.
13
404103300
Goupille Levier*pin-lever Summit 500.
14
404105000
Levier Flotteur*lever-float Summit 500.
15
404105400
Flotte *float Summit 500.
16
404101500
Rondelle *washer Summit 500.
17
404105800
Capuchon *cap Summit 500.
18
404149000
Vis Air *screw-air Summit 500.
19
404139800
Ressort *spring Summit 500.
20
404101700
Ressort *spring Summit 500.
21
404102800
Vis Ajustement*screw-idle Speed Summit 500.
23
404101600
Rondelle Siege *washer-seat Summit 500.
24
404147400
Pointeau Vs 1.5*valve Needle Summit 500.
25
404105500
Vis Guide *screw-guide Summit 500.
26
404100900
Gicleur Mj 400 *jet-main 400 Summit 500.
404106300
Gicleur Mj 380 *jet-main 380 Summit 500.
27
404103000
Plaque *plate Summit 500.
28
404102000
Screw-w/lock *screw-w/lockwasher Summit 500.
29
404109800
Tuyau Aeration *tube-air Vent Summit 500.
30
404153400
Raccord *nipple Summit 500.
31
404131700
Vis Bouchon *screw-plug Summit 500.
32
270500095
Capuchon Obtur.*cap-closure Summit 500.
33
404155200
Bouchon *cap Summit 500.
34
404105600
Vis Bouchon *screw-drain Plug Summit 500.
35
404112000
Trousse Outils *tool Kit Summit 500.
