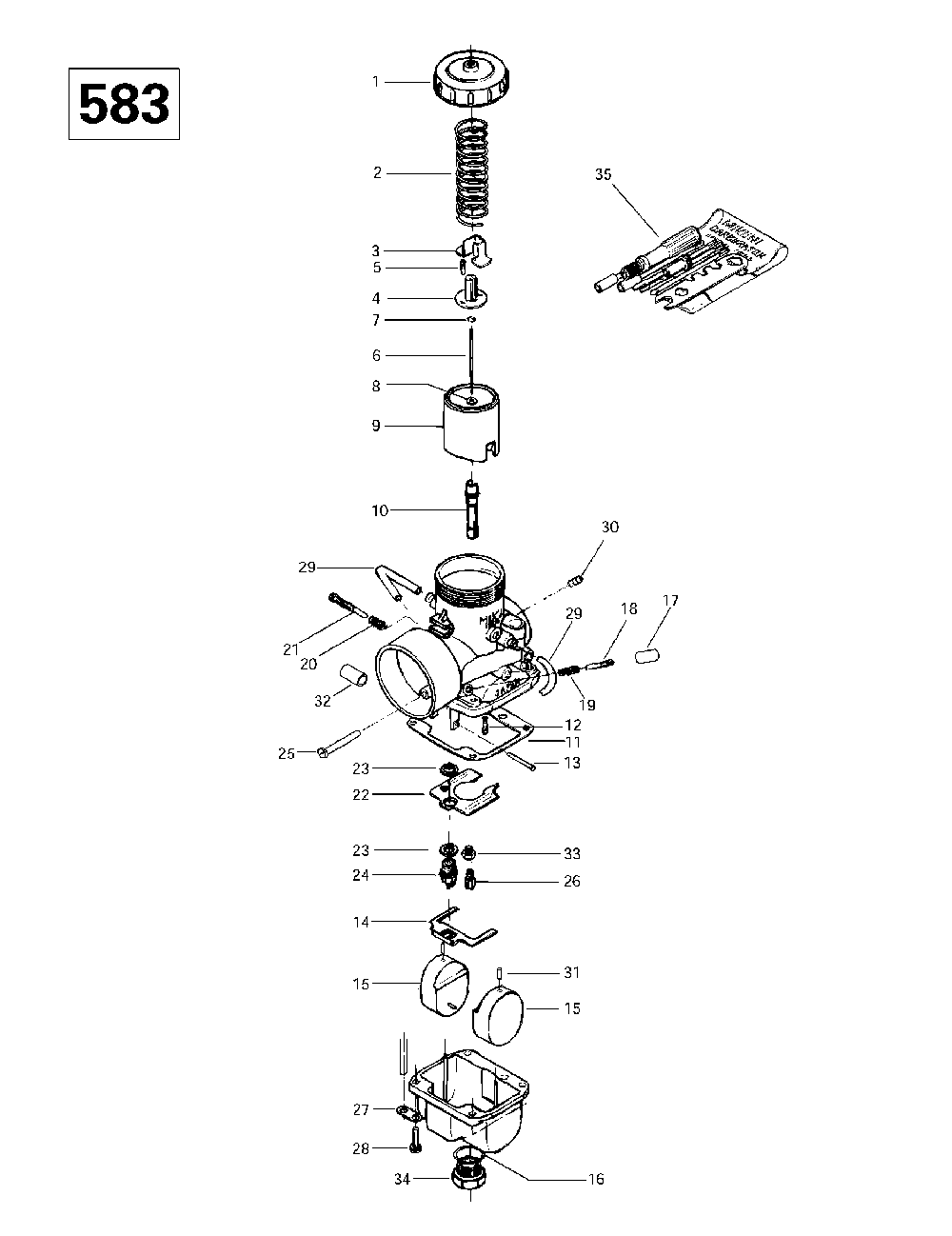

02- carburetors (583) Запчасти для снегоходов Ski-Doo (Bombardier) Summit 500/583/670 (1997)

02- carburetors (583)

Ski-Doo (Bombardier) Summit 500/583/670

oem код

название

цена

403131100

Carb.vm-38 *carb-vm-38 Includes 1 - 34. Summit 583.

403131200

Carb.vm-38 *carb-vm-38 Includes 1 - 34. Summit 583.

404105100

Couvercle Carb.*top-mix.chamb. Summit 583.

404154800

Ressort *spring Summit 583.

404122100

Couvercle *cover Summit 583.

404160800

Connecteur *connector Summit 583.

404121300

Vis W.rondelle*screw-with Washer Summit 583.

404157500

Aiguille *needle Summit 583.

404152400

Rondelle E *ring-e Summit 583.

404117000

Joint Tampon *packing Summit 583.

404131300

Tiroir Acc.2.5 *piston-val.2.5 Summit 583.

404157600

Gicleur Aiguil.*jet Needle Summit 583.

404104700

Joint *gasket Summit 583.

404148100

Gicleur Ralenti*jet-pilot 75 Summit 583.

404103300

Goupille Levier*pin-lever Summit 583.

404105000

Levier Flotteur*lever-float Summit 583.

404105400

Flotte *float Summit 583.

404101500

Rondelle *washer Summit 583.

404155200

Bouchon *cap Summit 583.

404149000

Vis Air *screw-air Summit 583.

404139800

Ressort *spring Summit 500. Summit 670.

404101700

Ressort *spring Summit 583.

404102800

Vis Ajustement*screw-idle Speed Summit 583.

404101600

Rondelle Siege *washer-seat Summit 583.

404147400

Pointeau Vs 1.5*valve Needle Summit 583.

404131700

Vis Bouchon *screw-plug Summit 583.

404101400

Gicleur Mj 330 *jet-main 330 Summit 583.

404104900

Gicleur Mj 340 *jet-main 340 Summit 500. Summit 670.

404103000

Plaque *plate Summit 583.

404102000

Screw-w/lock *screw-w/lockwasher Summit 583.

404109800

Tuyau Aeration *tube-air Vent Summit 583.

404153400

Raccord *nipple Summit 583.

404105800

Capuchon *cap Summit 583.

270500095

Capuchon Obtur.*cap-closure Summit 583.

404105500

Vis Guide *screw-guide Summit 583.

404105600

Vis Bouchon *screw-drain Plug Summit 583.

404112000

Trousse Outils *tool Kit Summit 583.
