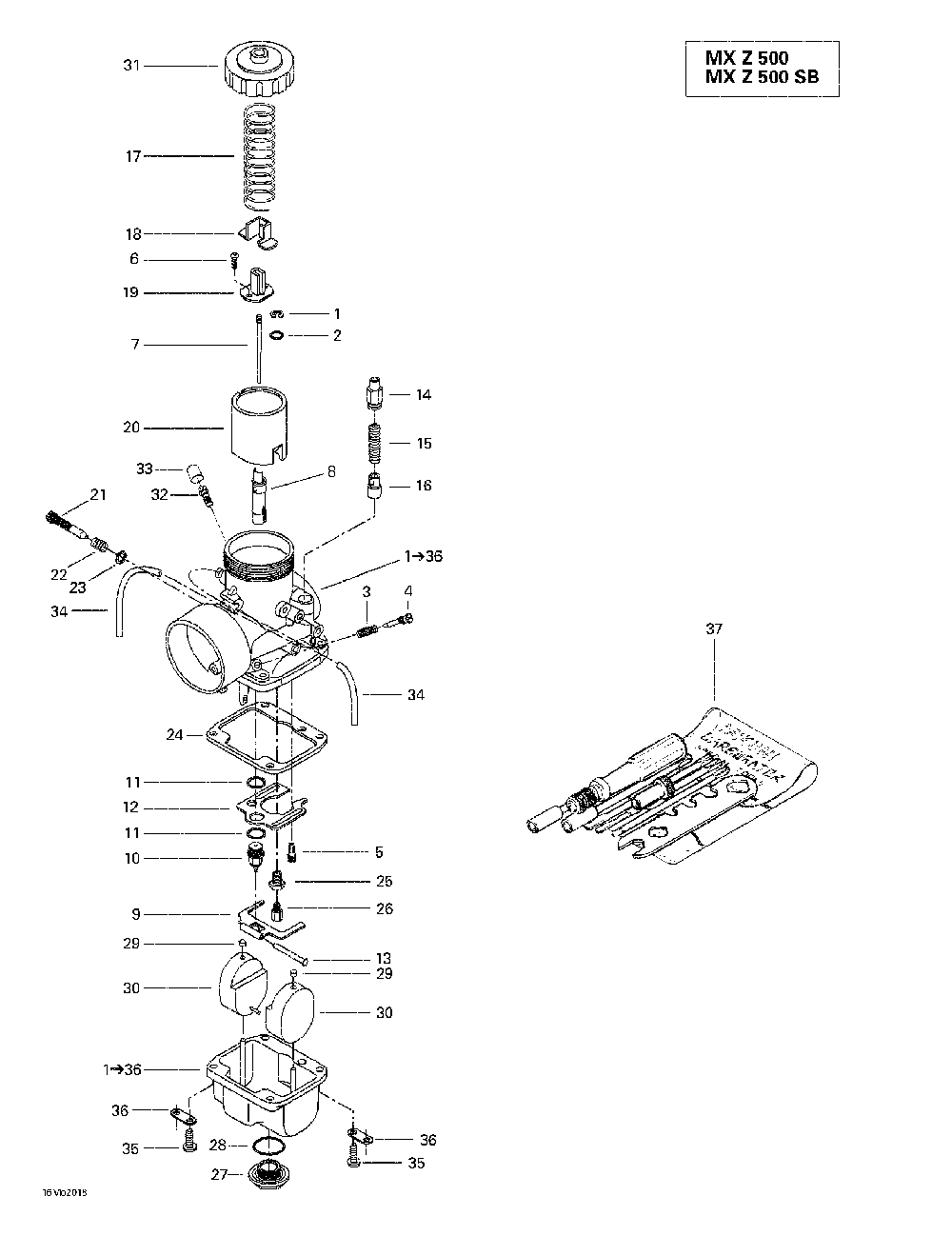

Карбюратор

Ski-Doo (Bombardier) MX Z 500 SB (black)
Ski-Doo (Bombardier)
#oem кодцена
1
403138581
Carb.vm-38 *carb-vm-38 Includes 1 - 36. Mx Z 500. Mx Z 500 Sb (black).
1
404152400
Rondelle E *ring-e Mx Z 500. Mx Z 500 Sb (black).
2
404117000
Joint Tampon *packing Mx Z 500. Mx Z 500 Sb (black).
3
404139800
Ressort *spring Mx Z 500. Mx Z 500 Sb (black).
4
404149000
Vis Air *screw-air Mx Z 500. Mx Z 500 Sb (black).
5
404109100
Gicleur Ralenti*jet-pilot 40 Mx Z 500. Mx Z 500 Sb (black).
6
404121300
Vis W.rondelle*screw-with Washer Mx Z 500. Mx Z 500 Sb (black).
7
404161884
Aiguille 6dey10*needle 6dey10 Mx Z 500. Mx Z 500 Sb (black).
8
404161700
Gicleur Aiguil.*jet Needle Mx Z 500. Mx Z 500 Sb (black).
9
404161823
Levier Flotteur*lever-float Mx Z 500. Mx Z 500 Sb (black).
10
404147400
Pointeau Vs 1.5*valve Needle Mx Z 500. Mx Z 500 Sb (black).
11
404101600
Rondelle Siege *washer-seat Mx Z 500. Mx Z 500 Sb (black).
13
404103300
Goupille Levier*pin-lever Mx Z 500. Mx Z 500 Sb (black).
14
404161100
Guide *guide Holder Mx Z 500. Mx Z 500 Sb (black).
15
404161844
Ressort *spring Mx Z 500. Mx Z 500 Sb (black).
16
404161845
Plongeur Ass. *plunger-assy Mx Z 500. Mx Z 500 Sb (black).
17
404154800
Ressort *spring Mx Z 500. Mx Z 500 Sb (black).
18
404122100
Couvercle *cover Mx Z 500. Mx Z 500 Sb (black).
19
404160800
Connecteur *connector Mx Z 500. Mx Z 500 Sb (black).
20
404131300
Tiroir Acc.2.5 *piston-val.2.5 Mx Z 500. Mx Z 500 Sb (black).
21
404102800
Vis Ajustement*screw-idle Speed Mx Z 500. Mx Z 500 Sb (black).
22
404101700
Ressort *spring Mx Z 500. Mx Z 500 Sb (black).
23
270500018
Rondelle *washer Mx Z 500. Mx Z 500 Sb (black).
24
404104700
Joint *gasket Mx Z 500. Mx Z 500 Sb (black).
25
404105500
Vis Guide *screw-guide Mx Z 500. Mx Z 500 Sb (black).
26
404100500
Gicleur Mj 280 *jet-main 280 Mx Z 500. Mx Z 500 Sb (black).
27
404112900
Vis Bouchon *screw-drain Plug Mx Z 500. Mx Z 500 Sb (black).
28
404112800
Rondelle *washer Mx Z 500. Mx Z 500 Sb (black).
29
404105800
Capuchon *cap Mx Z 500. Mx Z 500 Sb (black).
30
404105400
Flotte *float Mx Z 500. Mx Z 500 Sb (black).
31
404105100
Couvercle Carb.*top-mix.chamb. Mx Z 500. Mx Z 500 Sb (black).
32
404153400
Raccord *nipple Mx Z 500. Mx Z 500 Sb (black).
33
404154900
Bouchon *cap Mx Z 500. Mx Z 500 Sb (black).
34
404161880
Boyau *hose Mx Z 500. Mx Z 500 Sb (black).
35
404102000
Screw-w/lock *screw-w/lockwasher Mx Z 500. Mx Z 500 Sb (black).
36
404103000
Plaque *plate Mx Z 500. Mx Z 500 Sb (black).
37
404112000
Trousse Outils *tool Kit Mx Z 500. Mx Z 500 Sb (black).
