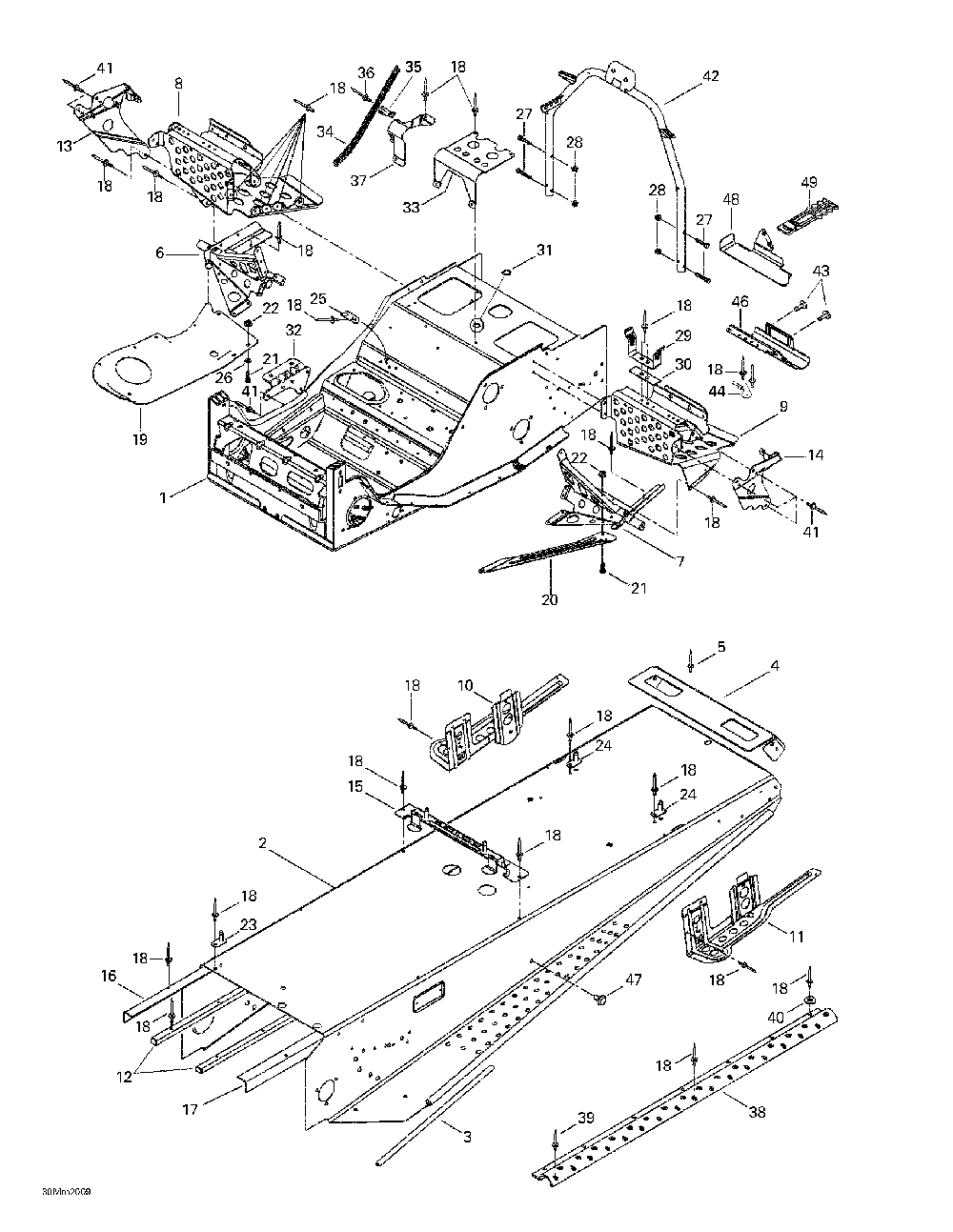

Рама

Ski-Doo (Bombardier) MX Z 600
Ski-Doo (Bombardier)
#oem кодцена
1
518322091
Chassis *frame
2
518322534
Tunnel Forme *frame-forming
3
518304746
Renf.marche-pie*reinf.-foot.
4
518321303
Capuchon Arr. *cap-rear
5
390909200
Заклепка
6
518320506
Support Droit *rh.support
7
518320507
Support Gauche *lh.support
8
518319722
Repose-pied Dr.*footrest-rh
9
518319723
Repose-pied Ga.*footrest-lh
10
518319742
Attache Susp.dr*brkt-slide Rh
11
518319743
Attache Susp.ga*bracket-slide Lh
12
518321543
Protect. Tunnel*protect.-frame
13
518321305
Renf.rep.-pi.dr*reinf.-footrest Rh
14
518321307
Renf.rep.-pi.ga*reinf.-footrest Lh
15
518321510
Att.reserv.p. *brkt-tank Paint
16
518321561
Renf.tunnel Dr.*reinf-frame Rh
17
518321562
Renf.tunnel Ga.*reinf-frame Lh
18
390402200
Заклепка 3/16
19
518319760
Plaque Coque Dr*plate-pan Bott.rh
20
518321959
Plaque Renf.ga.*plate-reinf.lh
21
207152044
Винт
22
233251414
Гайка
23
518321604
Guide Soude *guide-weld.
24
518323321
Attache Siege S*seat Bracke Weld
25
518319728
Attache Doub.so*bracket Double Weld
26
391301700
Шайба
27
207663544
Винт
28
233261414
Гайка
29
518202100
Attache Gard.co*brkt-guard Belt
30
518207500
Renfort *reinforcement
31
414859400
Крышка
32
518322635
Support Silenc.*support-muffler
33
518310400
Supp.silenc.adm*supp-air Intake
34
518321569
Направляющая троса
35
518321570
Хомут открывающийся
37
518322699
Support Boyaux *support-hose
38
518321714
Bande Antideap.*strip Mx-z 600 Sb. Mx-z 600 Sb Black.
39
390402300
Rivet-pop 3/16 *rivet-pop 3/16 Mx-z 600 Sb. Mx-z 600 Sb Black.
40
517225900
Washer - Flat Mx-z 600 Sb. Mx-z 600 Sb Black.
42
518322755
Supp.guidon Sou*supp-handle Weld.
43
207661644
Screw-hex.flange Din.6921 Mx-z 600 Sb. Mx-z 600 Sb Black.
44
518322031
Attache Trousse*bracket-tool Kit
45
415107300
Ajout *insert Mx-z 600 Sb. Mx-z 600 Sb Black.
47
518321954
Attache Panneau*panel-fastener Mx-z 600 Sb. Mx-z 600 Sb Black.
48
518321999
Support Trousse*support-tool Kit
49
570069700
Loquet *latch
37
518319762
Support Boyaux *support-hose
2
518322115
Tunnel Forme *frame-forming
41
390402200
Заклепка 3/16
42
518321957
Supp.guidon Sou*supp-handle Weld.
