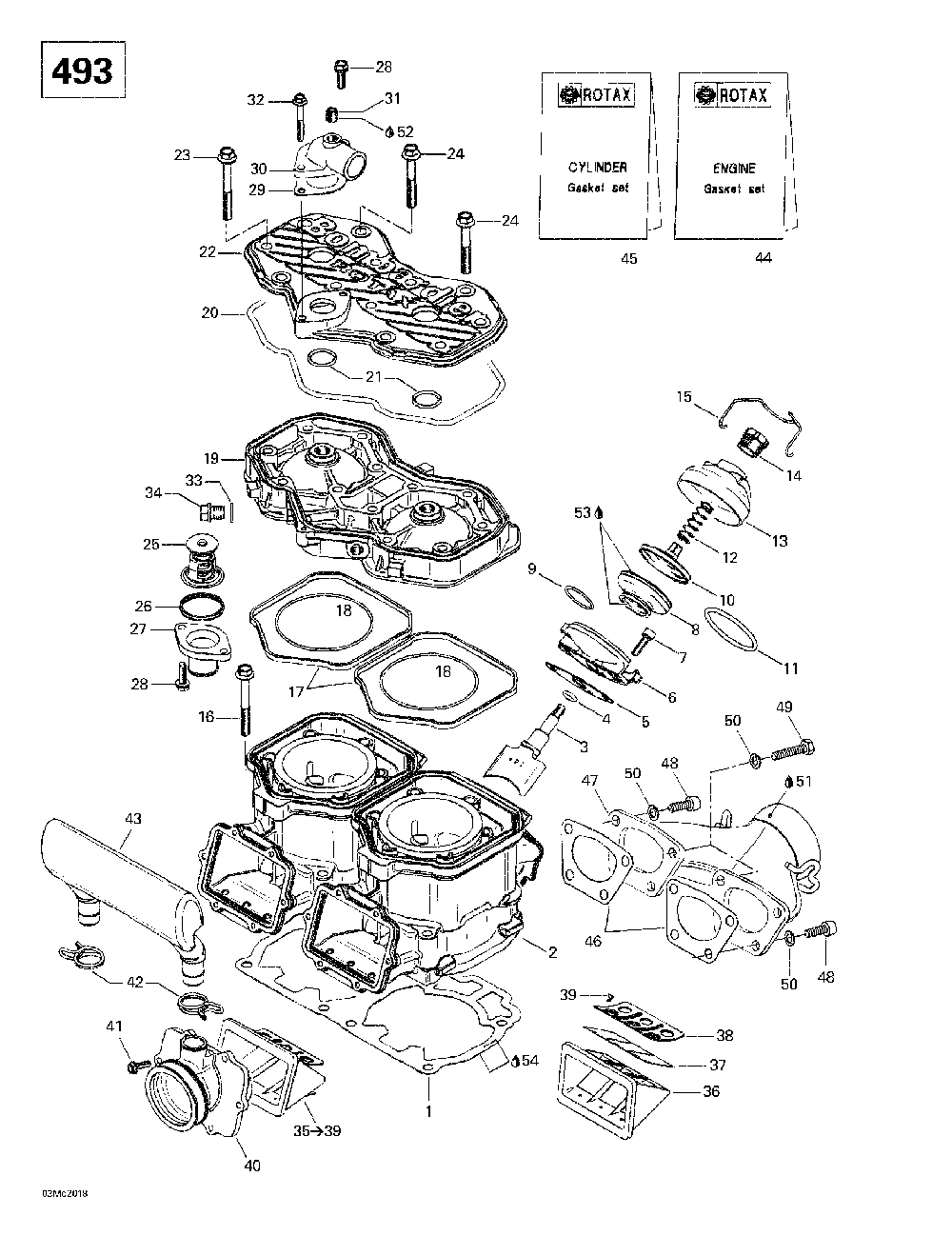

Цилиндр,впускной коллектор и мощност. клапан

Ski-Doo (Bombardier) MX Z 700 SB
Ski-Doo (Bombardier)
#oem кодцена
1
420931589
Joint 0, 8 *gasket 0, 8 Mx Z 500. Mx Z 500 Sb (black).
420931960
Joint 0.7 *gasket 0.7 Mx Z 500. Mx Z 500 Sb (black).
420931587
Joint 0, 6 *gasket 0, 6 Mx Z 500. Mx Z 500 Sb (black).
420931588
Joint 0, 5 *gasket 0, 5 Mx Z 500. Mx Z 500 Sb (black).
420931586
Joint 0, 4 *gasket 0, 4 Mx Z 500. Mx Z 500 Sb (black).
2
420613605
Cylindre + Chem*cylinder-w.sle Mx Z 500. Mx Z 500 Sb (black).
3
420854490
Soupape Echap. *valve-exhaust Mx Z 500. Mx Z 500 Sb (black).
4
420430110
Joint Torique *o Ring Mx Z 500. Mx Z 500 Sb (black).
5
420250239
Joint *gasket Mx Z 500. Mx Z 500 Sb (black).
6
420854267
Boitier *housing-valve Mx Z 500. Mx Z 500 Sb (black).
7
205062044
Screw-socket Hd.din.912 Mx Z 500. Mx Z 500 Sb (black).
8
420260723
Manchon *bellows Mx Z 500. Mx Z 500 Sb (black).
9
420838253
Bride Ressort *clamp-spring Mx Z 500. Mx Z 500 Sb (black).
10
420854449
Soupape Echapp.*valve-exhaust Mx Z 500. Mx Z 500 Sb (black).
11
420239048
Ressort Manchon*spring-hose Mx Z 500. Mx Z 500 Sb (black).
12
420239948
Ressort *spring Mx Z 500. Mx Z 500 Sb (black).
13
420911552
Couvercle Soup.*cover-valve Mx Z 500. Mx Z 500 Sb (black).
15
420838083
Pince A Ressort*clip-spring Mx Z 500. Mx Z 500 Sb (black).
16
420841999
Screw-hex. M8 X 68.5 Mx Z 500. Mx Z 500 Sb (black).
17
420931590
Bague Caout. *ring-rubber Mx Z 500. Mx Z 500 Sb (black).
18
420831792
Joint Torique *o Ring Mx Z 500. Mx Z 500 Sb (black).
19
420923880
Tete-cylindre *head-cylinder Mx Z 500. Mx Z 500 Sb (black).
20
420950320
Joint Torique *o Ring Mx Z 500. Mx Z 500 Sb (black).
21
420430782
Joint Torique *o Ring Mx Z 500. Mx Z 500 Sb (black).
22
420923465
Couvercle Cyl. *cover-cyl.head Mx Z 500. Mx Z 500 Sb (black).
23
420841306
Screw-hex Collar M8x65 Sw 11 Mx Z 500. Mx Z 500 Sb (black).
24
420941627
Collar-hex. Screw M8x56, 5 Mx Z 500. Mx Z 500 Sb (black).
25
420922519
Thermostat *thermostat Mx Z 500. Mx Z 500 Sb (black).
26
420931270
Bague Etanche *ring-sealing Mx Z 500. Mx Z 500 Sb (black).
27
420922025
Raccord Sortie *bent Outlet Socket Mx Z 500. Mx Z 500 Sb (black).
28
420941250
Screw-tapping Mx Z 500. Mx Z 500 Sb (black).
29
420850338
Joint *gasket Mx Z 500. Mx Z 500 Sb (black).
30
420922062
Raccord Sortie *bent Outlet Socket Mx Z 500. Mx Z 500 Sb (black).
31
420240480
Screw-plug 1/8-27 Npt Mx Z 500. Mx Z 500 Sb (black).
32
420941451
Screw-hex Collar M6 X 40 Mx Z 500. Mx Z 500 Sb (black).
35
420924519
Soupape Clapets*valve-reed Ass Includes 35 - 39. Mx Z 500. Mx Z 500 Sb (black).
37
420924532
Lame Pedale *reed-pedal Mx Z 500. Mx Z 500 Sb (black).
38
420924539
Arret Lame Ped.*stop-reed Ped. Mx Z 500. Mx Z 500 Sb (black).
39
420941215
Screw-oval Head M3x5 Mx Z 500. Mx Z 500 Sb (black).
40
420867862
Tubulure Carb. *socket Carburetor Mx Z 500. Mx Z 500 Sb (black).
41
420941925
Screw-tapping M5 X 16 Mx Z 500. Mx Z 500 Sb (black).
42
420851440
Bride *clamp Mx Z 500. Mx Z 500 Sb (black).
43
420867815
Resonate.d Adm.*resona.intake Mx Z 500. Mx Z 500 Sb (black).
44
420888722
Engine Gasket Set Mx Z 500. Mx Z 500 Sb (black).
45
420888726
Ens.joint Etanc*set-gasket Cylinder Mx Z 500. Mx Z 500 Sb (black).
46
420931615
Joint *gasket Mx Z 500. Mx Z 500 Sb (black).
47
420973650
Collect.echapp.*manifold-exh. Mx Z 500. Mx Z 500 Sb (black).
48
205082544
Screw-socket Hd.din.912 Mx Z 500. Mx Z 500 Sb (black).
49
207182044
Screw-hex.cap Din.933 Mx Z 500. Mx Z 500 Sb (black).
50
234181401
Washer-lock Din.127b Mx Z 500. Mx Z 500 Sb (black).
51
293800090
Enduit Etanche *sealant Mx Z 500. Mx Z 500 Sb (black).
52
293800060
Loctite 243 *loctite-243 Mx Z 500. Mx Z 500 Sb (black).
53
413707000
Dow Corning 111*dow Corning 111 Mx Z 500. Mx Z 500 Sb (black).
54
293800038
Loctite 518 *loctite-518 Mx Z 500. Mx Z 500 Sb (black).
14
420241221
Vis Ajustement *screw-adjuster Mx Z 500. Mx Z 500 Sb (black).
