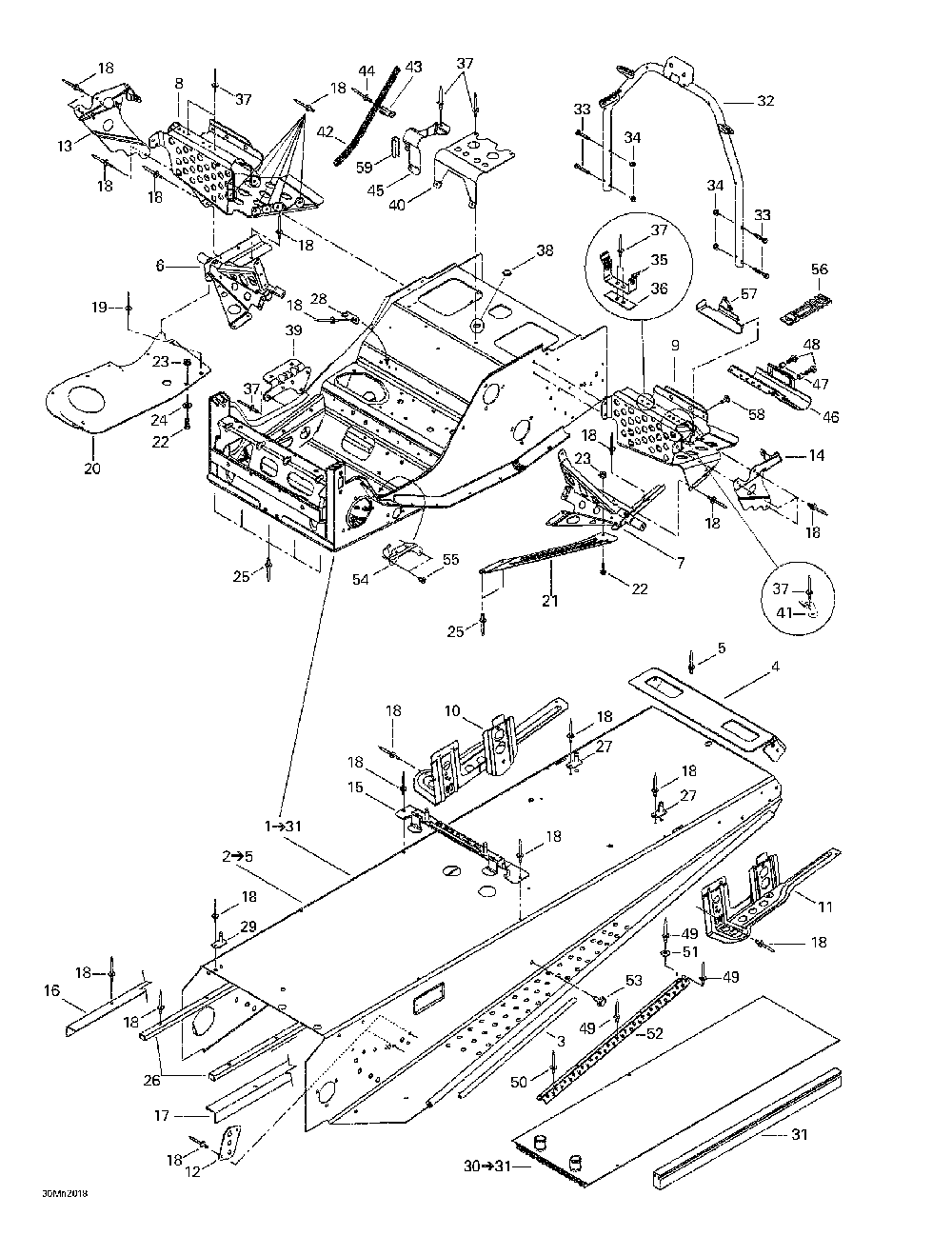

Рама

Ski-Doo (Bombardier) MX Z 700 SB
Ski-Doo (Bombardier)
#oem кодцена
1
518322091
Chassis *frame Includes 1 - 31.
2
518322534
Tunnel Forme *frame-forming Includes 2 - 5.
3
518304746
Renf.marche-pie*reinf.-foot.
4
518321303
Capuchon Arr. *cap-rear
5
390402200
Заклепка 3/16
6
518320506
Support Droit *rh.support
7
518320507
Support Gauche *lh.support
8
518319722
Repose-pied Dr.*footrest-rh
9
518319723
Repose-pied Ga.*footrest-lh
10
518319742
Attache Susp.dr*brkt-slide Rh
11
518319743
Attache Susp.ga*bracket-slide Lh
12
518201321
Plaque Renfort *plate-reinf.
13
518321305
Renf.rep.-pi.dr*reinf.-footrest Rh
14
518321307
Renf.rep.-pi.ga*reinf.-footrest Lh
15
518321510
Att.reserv.p. *brkt-tank Paint
16
518321561
Renf.tunnel Dr.*reinf-frame Rh
17
518321562
Renf.tunnel Ga.*reinf-frame Lh
19
390402300
Заклепка 3/16
20
518319760
Plaque Coque Dr*plate-pan Bott.rh
21
518322119
Plaque Renf.ga.*plate-reinf.lh
22
207152044
Винт
23
233251414
Гайка
24
391301700
Шайба
25
390910300
Rivet Henrob *rivet-henrob
26
518321543
Protect. Tunnel*protect.-frame
27
518323321
Attache Siege S*seat Bracke Weld
28
518319728
Attache Doub.so*bracket Double Weld
29
518321604
Guide Soude *guide-weld.
30
517296300
Radiateur Arr.s*rad.-rear Weld. Includes 30 - 31.
31
415012300
Защита
32
518322755
Supp.guidon Sou*supp-handle Weld.
33
207663544
Винт
34
233261414
Гайка
35
518202100
Attache Gard.co*brkt-guard Belt
36
518207500
Renfort *reinforcement
38
414859400
Крышка
39
518322635
Support Silenc.*support-muffler
40
518310400
Supp.silenc.adm*supp-air Intake
41
518322031
Attache Trousse*bracket-tool Kit
42
518321569
Направляющая троса
43
518321570
Хомут открывающийся
44
390406500
Заклепка 3/16
45
518322699
Support Boyaux *support-hose
46
518323504
Accroche-pied *toe-hold Mx Z 500 Sb (black). Mx Z 700 Sb. Mx Z 700 Sb (black). Mx Z 700 Sb Millennium Edition.
47
415107300
Ajout *insert Mx Z 500 Sb (black). Mx Z 700 Sb. Mx Z 700 Sb (black). Mx Z 700 Sb Millennium Edition.
48
207661644
Screw-hex.flange Din.6921 Mx Z 500 Sb (black). Mx Z 700 Sb. Mx Z 700 Sb (black). Mx Z 700 Sb Millennium Edition.
51
517225900
Washer - Flat Mx Z 500 Sb (black). Mx Z 700 Sb. Mx Z 700 Sb (black). Mx Z 700 Sb Millennium Edition.
52
518321714
Bande Antideap.*strip Mx Z 500 Sb (black). Mx Z 700 Sb. Mx Z 700 Sb (black).
518321980
Bande Antiderap*strip-chrome Mx Z 700 Sb Millennium Edition.
53
518321954
Attache Panneau*panel-fastener
54
515175254
Support Cablage*support-cable
56
570069700
Loquet *latch
57
518321999
Support Trousse*support-tool Kit
59
271000110
Moul.protect. *trim-protect.
45
518319762
Support Boyaux *support-hose
2
518322115
Tunnel Forme *frame-forming Includes 2 - 5.
18
390402200
Заклепка 3/16
32
518321957
Supp.guidon Sou*supp-handle Weld.
37
390402200
Заклепка 3/16
49
390402200
Rivet-pop 3/16 *rivet-pop 3/16 Mx Z 500 Sb (black). Mx Z 700 Sb. Mx Z 700 Sb (black). Mx Z 700 Sb Millennium Edition.
50
390402300
Rivet-pop 3/16 *rivet-pop 3/16 Mx Z 500 Sb (black). Mx Z 700 Sb. Mx Z 700 Sb (black). Mx Z 700 Sb Millennium Edition.
55
390402300
Заклепка 3/16
58
390406500
Заклепка 3/16
