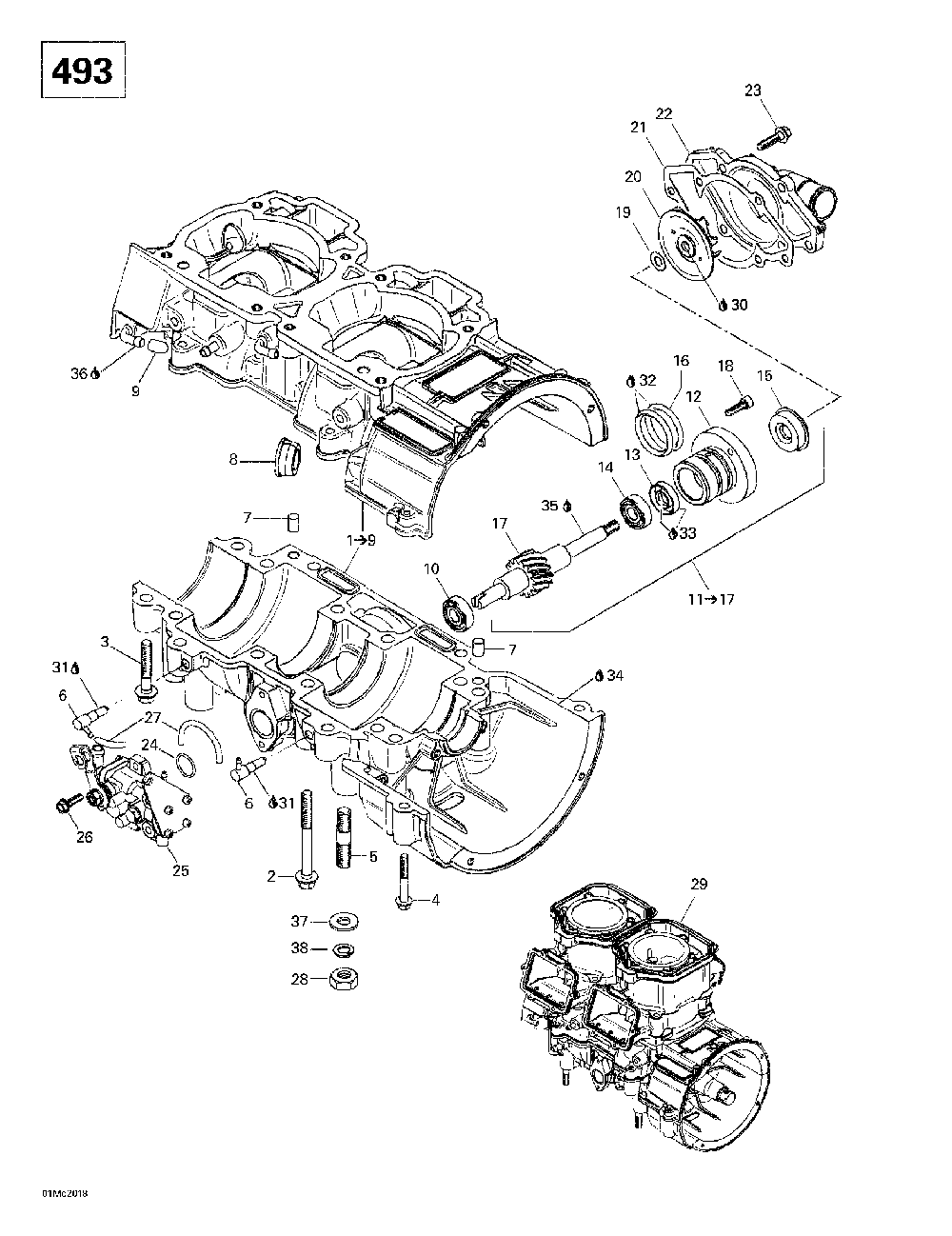

Картер , водяной и масляный насос

Ski-Doo (Bombardier) MX Z 700 SB (Black)
Ski-Doo (Bombardier)
#oem кодцена
1
420888208
Carter Moteur *crankcase-assy Includes 1 - 9. Mx Z 500. Mx Z 500 Sb (black).
2
420640831
Screw-hex Collar M8x75 Sw 11 Mx Z 500. Mx Z 500 Sb (black).
3
420640436
Screw-hex Collar M8x45 Sw 11 Mx Z 500. Mx Z 500 Sb (black).
4
420640311
Screw-hex Collar M6x45 Mx Z 500. Mx Z 500 Sb (black).
5
420941644
Stud-m10 X 23/17 Mx Z 500. Mx Z 500 Sb (black).
6
420956510
Soupape Retenue*valve-check Mx Z 500. Mx Z 500 Sb (black).
7
420632010
Goupille *pin-center Mx Z 500. Mx Z 500 Sb (black).
8
420860965
Passe-cable *grommet-cable Mx Z 500. Mx Z 500 Sb (black).
9
420960770
Bouchon *cap Mx Z 500. Mx Z 500 Sb (black).
10
420232100
Roulement Bille*ball Bearing Mx Z 500. Mx Z 500 Sb (black).
11
420837421
Arbre Pompe *oil/water Pump Shaft Includes 11 - 17. Mx Z 500. Mx Z 500 Sb (black).
13
420230195
Anneau Etanche *seal-oil Mx Z 500. Mx Z 500 Sb (black).
15
420650370
Joint Tournant *rotary Seal Mx Z 500. Mx Z 500 Sb (black).
16
420950890
Joint Torique *o Ring Mx Z 500. Mx Z 500 Sb (black).
18
420840511
Screw-allen M5 X 16 Mx Z 500. Mx Z 500 Sb (black).
19
420227945
Rondelle *washer Mx Z 500. Mx Z 500 Sb (black).
20
420222505
Turbine A Eau *impeller-water Mx Z 500. Mx Z 500 Sb (black).
21
420931810
Joint *gasket Mx Z 500. Mx Z 500 Sb (black).
22
420922630
Log.pompe Eau *hous-waterpump Mx Z 500. Mx Z 500 Sb (black).
23
420240031
Screw-hex.m6 X 25 Mx Z 500. Mx Z 500 Sb (black).
24
293300041
Joint Torique *o-ring Mx Z 500. Mx Z 500 Sb (black).
25
420888260
Pompe A Huile *pump-oil Assy. Mx Z 500. Mx Z 500 Sb (black).
26
420941925
Screw-tapping M5 X 16 Mx Z 500. Mx Z 500 Sb (black).
27
414413800
Boyau D Huile *hose-oil Mx Z 500. Mx Z 500 Sb (black).
28
232006414
Nut-hexagonal Din.934 Mx Z 500. Mx Z 500 Sb (black).
29
421000617
Ens.carter-cyl.*short Block Rebuilt 493 Mx Z 500. Mx Z 500 Sb (black).
30
293800060
Loctite 243 *loctite-243 Mx Z 500. Mx Z 500 Sb (black).
31
413711400
Loctite 648 *loctite-648 Mx Z 500. Mx Z 500 Sb (black).
32
413707000
Dow Corning 111*dow Corning 111 Mx Z 500. Mx Z 500 Sb (black).
33
420899271
Graisse *grease Mx Z 500. Mx Z 500 Sb (black).
34
420297906
Compose Etanche*compound Sealing Mx Z 500. Mx Z 500 Sb (black).
35
413802900
Huile 2t 12x1 Minr* Oil 2t 12x1 Mineral Mx Z 500. Mx Z 500 Sb (black).
36
293550021
Graisse Isoflex*grease-isoflex Mx Z 500. Mx Z 500 Sb (black).
37
234001410
0asher-flat Din.125a Mx Z 500. Mx Z 500 Sb (black).
38
234100602
Washer-lock Spring Din.128a-a2 Mx Z 500. Mx Z 500 Sb (black).
14
420232100
Roulement Bille*ball Bearing Mx Z 500. Mx Z 500 Sb (black).
