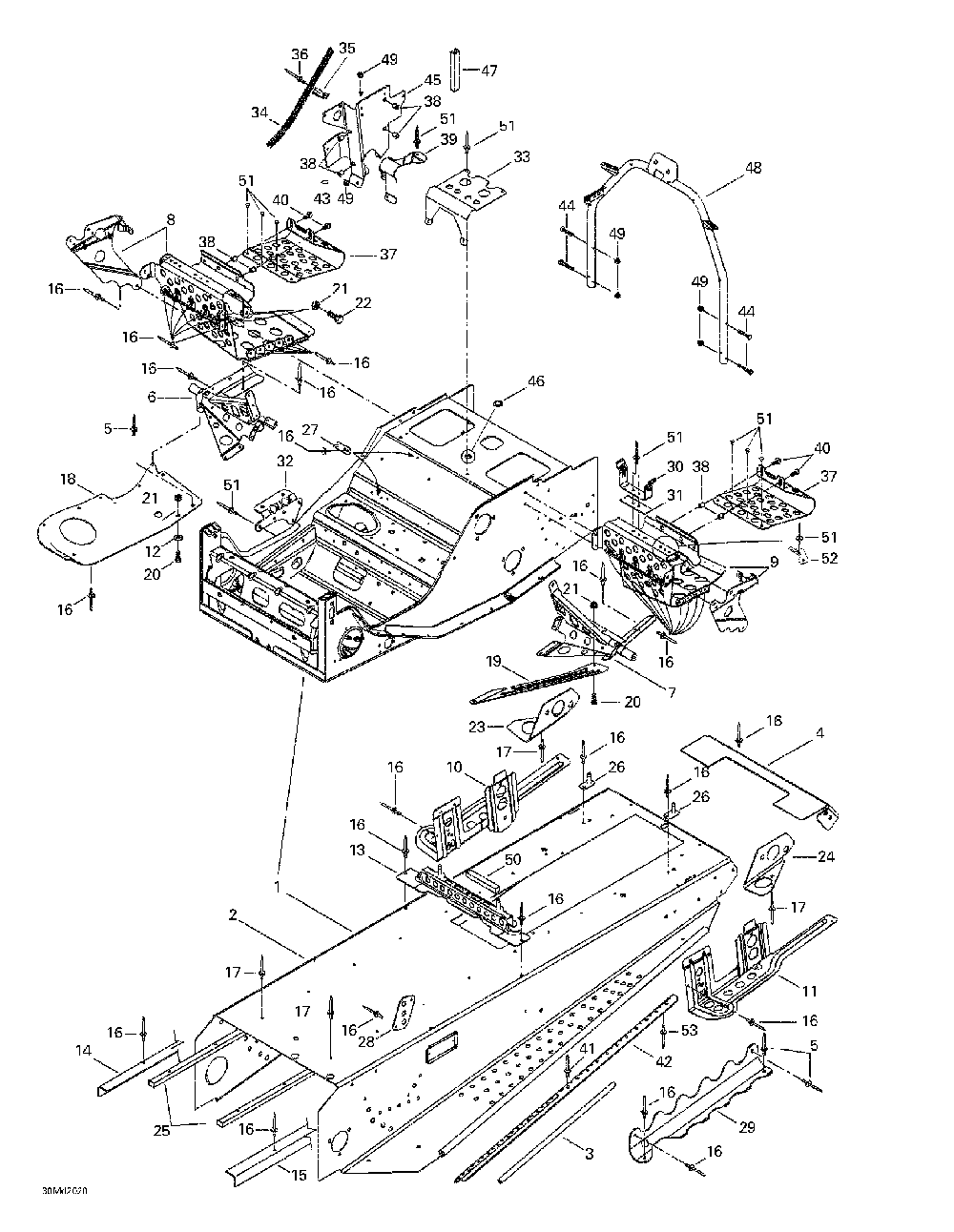

Рама

Ski-Doo (Bombardier) MX Z X 440 LC

Рама

#

oem код

название

цена

1

Chassis *frame Includes 1 - 29. (radiator And Radiator Protector Included)

Chassis *frame Includes 1 - 29. (radiator And Radiator Protector Included)

3

Renf.marche-pie*reinf.-foot.

Renf.marche-pie*reinf.-foot.

4

Capuchon Arr.re*cap-rear Rew.

Capuchon Arr.re*cap-rear Rew.

5

Заклепка 3/16

Заклепка 3/16

6

Support Droit *rh.support

Support Droit *rh.support

7

Sup.rep.pi.ga. *sup.-foot.lh

Sup.rep.pi.ga. *sup.-foot.lh

8

Rep.pied Dr.ass*footrest-rh Assy

Rep.pied Dr.ass*footrest-rh Assy

9

Rep.pied Ga.ass*footrest-lh Assy

Rep.pied Ga.ass*footrest-lh Assy

10

Attache Susp.dr*brkt-slide Rh

Attache Susp.dr*brkt-slide Rh

11

Attache Susp.ga*bracket-slide Lh

Attache Susp.ga*bracket-slide Lh

12

Шайба

Шайба

13

Att.reserv.p. *brkt-tank Paint

Att.reserv.p. *brkt-tank Paint

14

Renf.tunnel Dr.*reinf-frame Rh

Renf.tunnel Dr.*reinf-frame Rh

15

Renf.tunnel Ga.*reinf-frame Lh

Renf.tunnel Ga.*reinf-frame Lh

16

Заклепка 3/16

Заклепка 3/16

17

Заклепка 3/16

Заклепка 3/16

18

Plaque Coque Dr*plate-pan Bott.rh

Plaque Coque Dr*plate-pan Bott.rh

19

Plaque Renf.ga.*plate-reinf.lh

Plaque Renf.ga.*plate-reinf.lh

20

Винт

Винт

21

Гайка

Гайка

22

Screw-forming

Screw-forming

23

Renfort Arr.dr.*reinf-rear Rh

Renfort Arr.dr.*reinf-rear Rh

24

Renfort Arr.ga.*reinf-rear Lh

Renfort Arr.ga.*reinf-rear Lh

25

Prot. Tunnel So*protect.-frame Weld

Prot. Tunnel So*protect.-frame Weld

26

Attache Siege S*seat Bracke Weld

Attache Siege S*seat Bracke Weld

27

Attache Doub.so*bracket Double Weld

Attache Doub.so*bracket Double Weld

28

Plaque Renfort *plate-reinf.

Plaque Renfort *plate-reinf.

29

Doublure Tun.dr*liner-tunnel Rh

Doublure Tun.dr*liner-tunnel Rh

Doublure Tun.ga*liner-tunnel Lh

Doublure Tun.ga*liner-tunnel Lh

30

Attache Gard.co*brkt-guard Belt

Attache Gard.co*brkt-guard Belt

31

Renfort *reinforcement

Renfort *reinforcement

32

Support Silenc.*support-muffler

Support Silenc.*support-muffler

33

Supp.silenc.adm*supp-air Intake

Supp.silenc.adm*supp-air Intake

34

Направляющая троса

Направляющая троса

35

Хомут открывающийся

Хомут открывающийся

36

Заклепка 3/16

Заклепка 3/16

37

Accroche-pied *toe-hold

Accroche-pied *toe-hold

38

Вставка

Вставка

39

Support Boyaux *support-hose

Support Boyaux *support-hose

40

Винт

Винт

42

Bande *strip

Bande *strip

43

Capuchon Court *cap-short

Capuchon Court *cap-short

44

Винт

Винт

45

Sup.module Elec*supp-module Elect.

Sup.module Elec*supp-module Elect.

46

Крышка

Крышка

47

Moul.protect. *trim-protect.

Moul.protect. *trim-protect.

48

Supp.guidon Sou*supp-handle Weld.

Supp.guidon Sou*supp-handle Weld.

49

Гайка

Гайка

50

Joint Etanche *seal-tray

Joint Etanche *seal-tray

52

Attache Trousse*bracket-tool Kit

Attache Trousse*bracket-tool Kit

39

Support Boyaux *support-hose

Support Boyaux *support-hose

41

Заклепка 3/16

Заклепка 3/16

48

Supp.guidon Sou*supp-handle Weld.

Supp.guidon Sou*supp-handle Weld.

51

Заклепка 3/16

Заклепка 3/16

53

Заклепка 3/16

Заклепка 3/16
