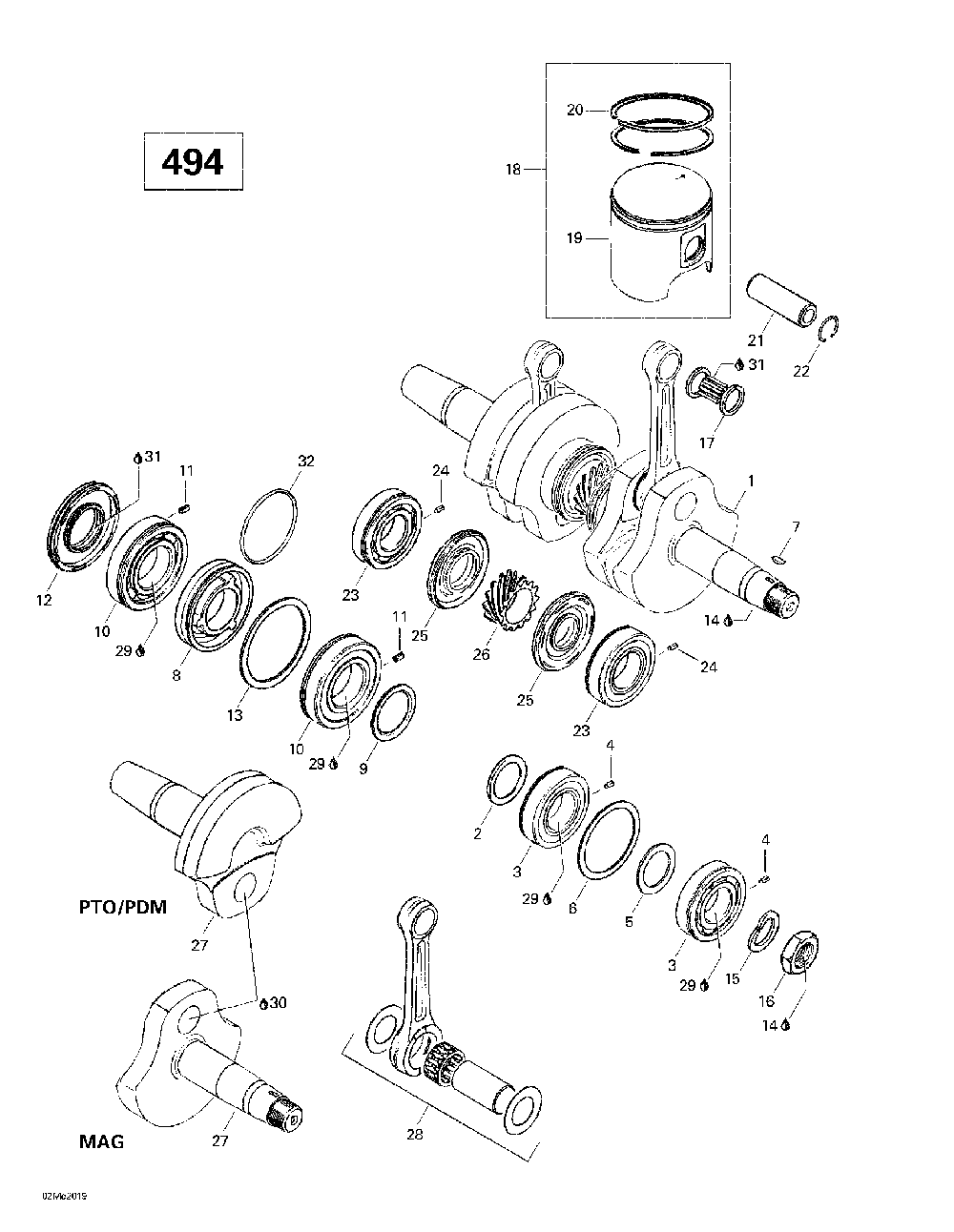

Коленчатый вал и поршень (494)

Ski-Doo (Bombardier) Skandic Super Wide Track
Ski-Doo (Bombardier)
#oem кодцена
1
421000151
Vilebreq.refait*crank-rebuild 494 96 Includes 1 - 13. Skandic Wt Lc.
2
420827445
Bague Ecart. *ring-distance Skandic Wt Lc.
3
420832538
Roulement Bille*ball Bearing Includes 3 - 4. Skandic Wt Lc.
4
420929972
Goupille Ressor*pin-roll Skandic Wt Lc.
5
420427684
Rondelle Ajus *washer-adj. Skandic Wt Lc.
6
420827050
Disque Retenue *disk-retaining Skandic Wt Lc.
7
420246015
Clavette *key-woodruff Skandic Wt Lc.
8
420830294
Douille Labyrin*bushing-labyr. Skandic Wt Lc.
9
420827760
Bague Ecart. *ring-distance Skandic Wt Lc.
10
420832574
Roulement Bille*ball Bearing Includes 10 - 11. Skandic Wt Lc.
12
420831952
Anneau Etanche *seal-oil Skandic Wt Lc.
13
420927710
Disque Retenue *disk-retaining Skandic Wt Lc.
14
293800060
Loctite 243 *loctite-243 Skandic Wt Lc.
15
420945759
Rondelle-frein *washer-lock 22 Skandic Wt Lc.
16
420842234
Nut-hex.m22 X 1, 5 Skandic Wt Lc.
17
420832438
Roul.aiguille *needle Bearing Skandic Wt Lc.
18
420887555
Поршень (вкл.18-20)
420887556
Поршень
19
420915985
Кольца поршнев 69.5
420915986
Кольца поршнев.69.75
20
420815043
Segment Semi-tr*ring-semi Trap Skandic Wt Lc.
420815044
Segment Semi-tr*ring-semi Trap Skandic Wt Lc.
21
420916186
Axe De Piston *pin-gudgeon Skandic Wt Lc.
22
420945735
Circlip Piston *circlip-piston Skandic Wt Lc.
25
420831990
Anneau Etanche *seal-oil Skandic Wt Lc.
26
420935748
Engrenage Cent.*gear-central Skandic Wt Lc.
27
420818660
Vilebrequin Pto*crankshaft-pto Skandic Wt Lc.
420818690
Vilebrequin Mag*crankshaft-mag Skandic Wt Lc.
28
420886955
Ens.tige Rep. *kit-rod Repair Pto Skandic Wt Lc.
420886956
Ens.tige Rep. *kit-rod Repair Mag Skandic Wt Lc.
30
413711400
Loctite 648 *loctite-648 Skandic Wt Lc.
31
413802900
Huile 2t 12x1 Minr* Oil 2t 12x1 Mineral Skandic Wt Lc.
32
420830370
Joint Torique *o Ring Skandic Wt Lc.
11
420929972
Goupille Ressor*pin-roll Skandic Wt Lc.
16
420842239
Ecrou*hex Nut M22x1, 5 Skandic Wt Lc.
23
420832538
Roulement Bille*ball Bearing Includes 23 - 24. Skandic Wt Lc.
24
420929972
Goupille Ressor*pin-roll Skandic Wt Lc.
