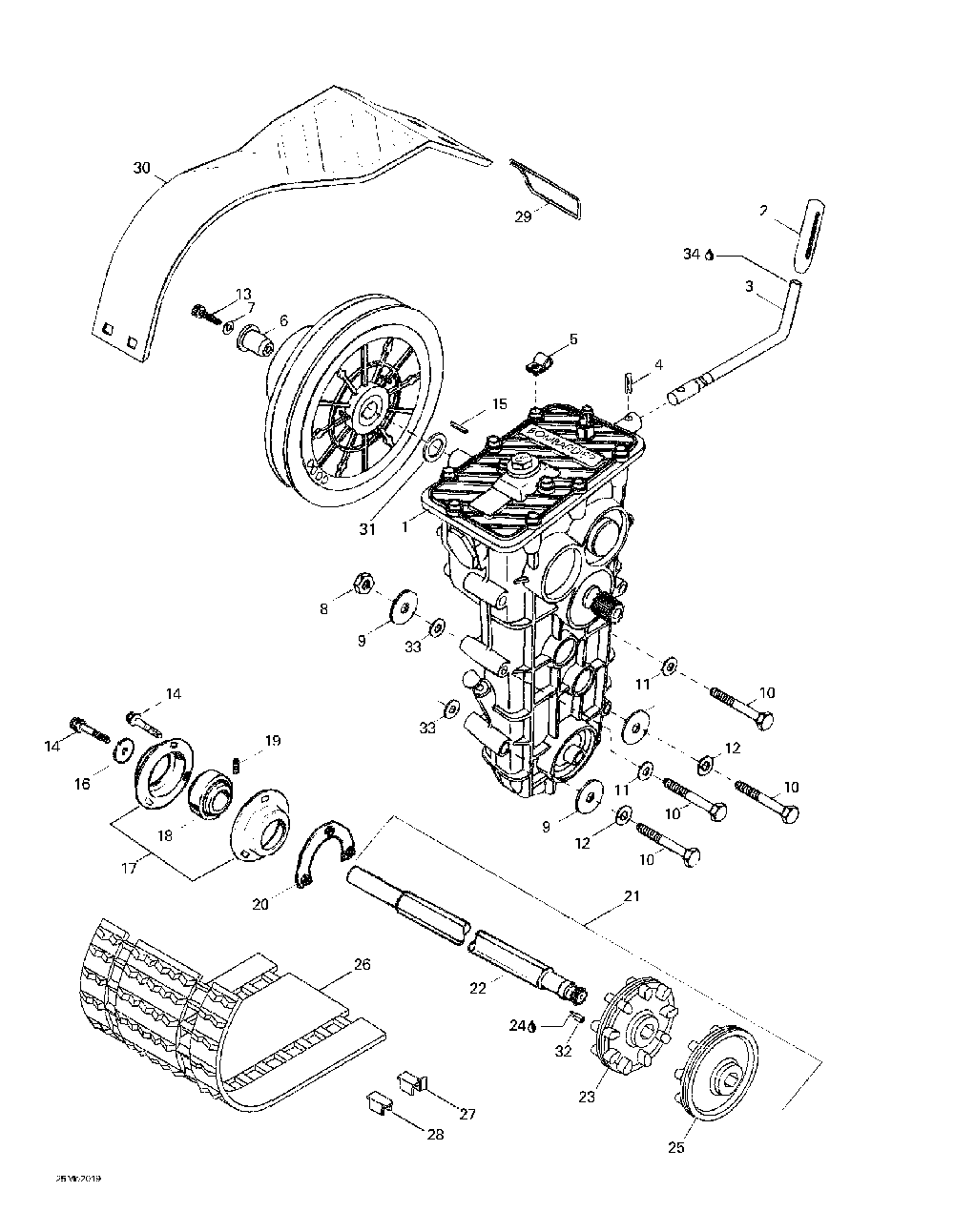

05- drive axle, track and belt guard

Ski-Doo (Bombardier) Skandic Wide Track
Ski-Doo (Bombardier)
#oem кодцена
1
M870156074
Transmission *transmission Skandic Wt.
M2652101
Anneau Etanche *seal-oil Skandic Swt.
M870156245
Transmission *transmission Skandic Swt.
M870156272
Transmission *transmission Skandic Wt Lc.
2
M28247
Шар
3
M5340902
Bras Vitesse *arm-shifter
4
M41007
Палец пружины
5
M5443134
Porte Fil *wire-holder
6
M5443201
Rallonge Arbre *ext-countersha Skandic Wt. Skandic Wt Lc.
M5443765
Rallonge Arbre *ext-countersha Skandic Swt.
7
234181401
Шайба
8
232581414
Гайка с тефлоном
9
M20010
Шайба
10
M40012
Винт M8x80
13
M40286
Screw Allen M8 X 45 Skandic Wt. Skandic Wt Lc.
M40290
Screw Allen M8 X 55 Skandic Swt.
14
M40336
Винт
15
M418763
Шпонка
16
M546336
Шайба
17
M534430
Logement Roul. *housing-bea.we
18
M31UC205
Подшипник
19
M10531
Винт
20
M546421
Demi Anneau *ring-thust
22
M5341662
Arbre Entrain. *axle-drive Skandic Wt. Skandic Wt Lc.
M539815
Arbre Entrain. *axle-drive Skandic Swt.
23
M539750
Ведущее колесо
24
293800005
Смазка Loctite 271
25
M5342920
Barbotin *sprocket Skandic Wt. Skandic Wt Lc.
M539749
Barbotin *sprocket Skandic Swt.
26
M13055
Chenille *track-assy 20"x156"x1" Includes 26 - 28. Skandic Wt. Skandic Wt Lc.
M13056
Chenille *track-assy 24x156x0.9 Skandic Swt.
27
M5318323
Башмак-направляющий
28
M5318322
Башмак гусеницы
29
M5442726
Палец
30
M5142660
Защита ремня
31
M3125351
Cale *shim Skandic Swt.
32
M542013
Raccord *nipple
33
M20077
Washer Skandic Wt. Skandic Wt Lc.
34
293800060
Фиксатор резьбы loctite-243
12
234181401
Шайба
19
M31UC205
Подшипник
26
M13070
Chenille *track-assy 20x156x1.25 Includes 26 - 28. Skandic Wt. Skandic Wt Lc.
