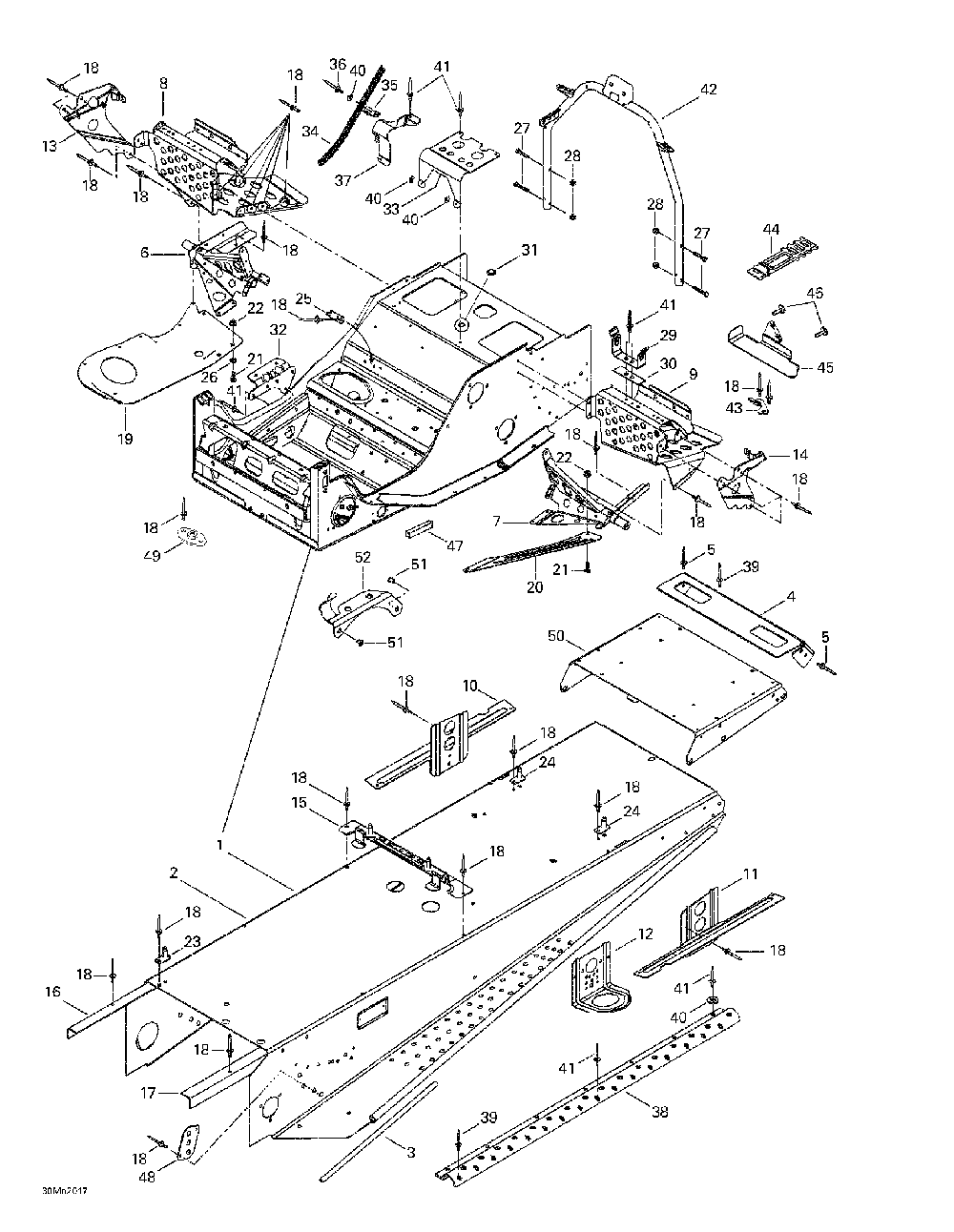

Рама

Ski-Doo (Bombardier) Summit 700
Ski-Doo (Bombardier)
#oem кодцена
518322100
Chassis *frame Summit 700 Hm.
2
518322117
Tunnel *frame-forming Includes 2 - 5. Summit 700 (cdn). Summit 700 (us). Summit 700 Sb.
518322118
Tunnel *frame-forming Summit 700 Hm.
3
518304746
Renf.marche-pie*reinf.-foot.
4
518321304
Capuchon Arr. *cap-rear Summit 700 (cdn). Summit 700 (us). Summit 700 Sb.
518321964
Capuchon Arr. *cap-rear Rew. Summit 700 Hm.
5
390402200
Заклепка 3/16
6
518320506
Support Droit *rh.support
7
518320507
Support Gauche *lh.support
8
518319722
Repose-pied Dr.*footrest-rh
9
518319723
Repose-pied Ga.*footrest-lh
10
518321502
Attache Susp.dr*brkt-slide Rh Summit 700 (cdn). Summit 700 (us). Summit 700 Sb.
518321965
Attache Susp.dr*brkt-slide Rh Summit 700 Hm.
11
518321506
Attache Susp.ga*bracket-slide Lh Summit 700 (cdn). Summit 700 (us). Summit 700 Sb.
518321966
Attache Susp.ga*bracket-slide Lh Summit 700 Hm.
12
518321495
Attache Avant *bracket-front
13
518321305
Renf.rep.-pi.dr*reinf.-footrest Rh
14
518321307
Renf.rep.-pi.ga*reinf.-footrest Lh
15
518321510
Att.reserv.p. *brkt-tank Paint Summit 700 (cdn). Summit 700 (us). Summit 700 Sb.
518322022
Att.reserv.p. *brkt-tank Paint Summit 700 Hm.
16
518321919
Renf.tunnel Dr.*reinf-frame Rh
17
518321920
Renf.tunnel Ga.*reinf-frame Lh
19
518319760
Plaque Coque Dr*plate-pan Bott.rh
20
518322119
Plaque Renf.ga.*plate-reinf.lh
21
207152044
Винт
22
233251414
Гайка
23
518321604
Guide Soude *guide-weld.
24
518323321
Attache Siege S*seat Bracke Weld
25
518319728
Attache Doub.so*bracket Double Weld
26
391301700
Шайба
27
207663544
Винт
28
233261414
Гайка
29
518202100
Attache Gard.co*brkt-guard Belt
30
518207500
Renfort *reinforcement
31
414859400
Крышка
32
518322635
Support Silenc.*support-muffler
33
518310400
Supp.silenc.adm*supp-air Intake
34
518321569
Направляющая троса
35
518321570
Хомут открывающийся
36
390406500
Заклепка 3/16
37
518322699
Support Boyaux *support-hose
38
518319405
Bande *strip Summit 700 (cdn). Summit 700 (us). Summit 700 Sb.
39
390402300
Заклепка 3/16
40
517225900
Шайба
42
518322755
Supp.guidon Sou*supp-handle Weld.
43
518322031
Attache Trousse*bracket-tool Kit
44
570069700
Loquet *latch
45
518321999
Support Trousse*support-tool Kit
47
271000110
Moul.protect. *trim-protect.
48
518201321
Plaque Renfort *plate-reinf.
49
518201307
Plaque Att.soud*plate-brkt Weld
50
518321858
Rallonge Tunnel*extention Fra. Summit 700 Hm.
52
515175254
Support Cablage*support-cable
37
518319762
Support Boyaux *support-hose
518319405
Bande *strip Summit 700 Hm.
18
390402200
Заклепка 3/16
41
390402200
Заклепка 3/16
42
518321957
Supp.guidon Sou*supp-handle Weld.
46
390406500
Заклепка 3/16
51
390402300
Заклепка 3/16
