Рама Запчасти для снегоходов Ski-Doo (Bombardier) Summit 800 H.M. (2000)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

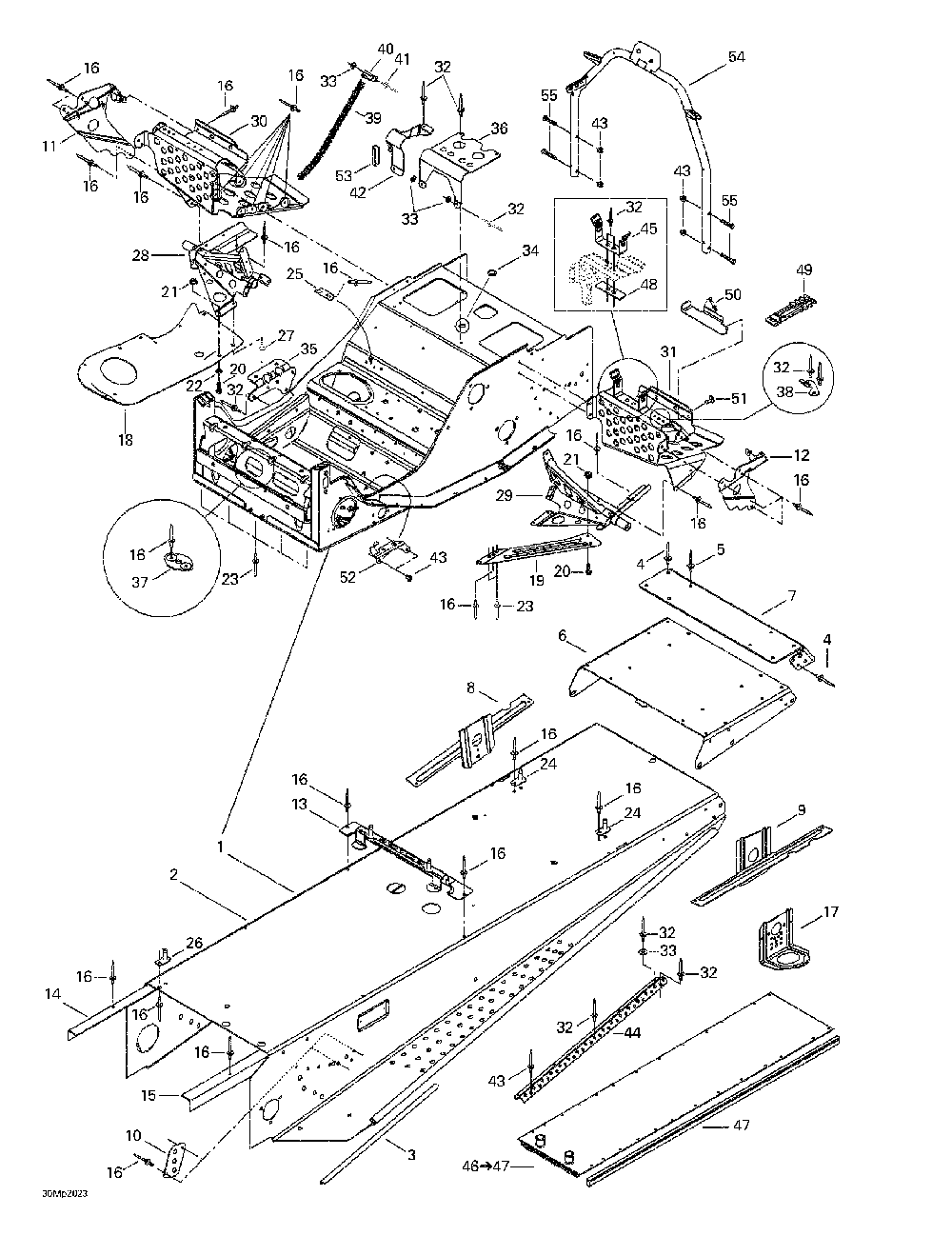

Рама

Ski-Doo (Bombardier) Summit 800 H.M.

Рама

#

oem код

название

цена

1

Chassis *frame Includes 1 - 7.

Chassis *frame Includes 1 - 7.

2

Tunnel *frame-forming

Tunnel *frame-forming

3

Renf.marche-pie*reinf.-foot.

Renf.marche-pie*reinf.-foot.

4

Заклепка 3/16

Заклепка 3/16

5

Заклепка 3/16

Заклепка 3/16

6

Rallonge Tunnel*extention Fra.

Rallonge Tunnel*extention Fra.

7

Capuchon Arr. *cap-rear Rew.

Capuchon Arr. *cap-rear Rew.

8

Attache Susp.dr*brkt-slide Rh

Attache Susp.dr*brkt-slide Rh

9

Attache Susp.ga*bracket-slide Lh

Attache Susp.ga*bracket-slide Lh

10

Plaque Renfort *plate-reinf.

Plaque Renfort *plate-reinf.

11

Renf.rep.-pi.dr*reinf.-footrest Rh

Renf.rep.-pi.dr*reinf.-footrest Rh

12

Renf.rep.-pi.ga*reinf.-footrest Lh

Renf.rep.-pi.ga*reinf.-footrest Lh

13

Att.reserv.p. *brkt-tank Paint

Att.reserv.p. *brkt-tank Paint

14

Renf.tunnel Dr.*reinf-frame Rh

Renf.tunnel Dr.*reinf-frame Rh

15

Renf.tunnel Ga.*reinf-frame Lh

Renf.tunnel Ga.*reinf-frame Lh

17

Attache Avant *bracket-front

Attache Avant *bracket-front

18

Plaque Coque Dr*plate-pan Bott.rh

Plaque Coque Dr*plate-pan Bott.rh

19

Plaque Renf.ga.*plate-reinf.lh

Plaque Renf.ga.*plate-reinf.lh

20

Винт

Винт

21

Гайка

Гайка

22

Шайба

Шайба

23

Rivet Henrob *rivet-henrob

Rivet Henrob *rivet-henrob

24

Attache Siege S*seat Bracke Weld

Attache Siege S*seat Bracke Weld

25

Attache Doub.so*bracket Double Weld

Attache Doub.so*bracket Double Weld

26

Guide Soude *guide-weld.

Guide Soude *guide-weld.

28

Support Droit *rh.support

Support Droit *rh.support

29

Support Gauche *lh.support

Support Gauche *lh.support

30

Repose-pied Dr.*footrest-rh

Repose-pied Dr.*footrest-rh

31

Repose-pied Ga.*footrest-lh

Repose-pied Ga.*footrest-lh

33

Шайба

Шайба

34

Крышка

Крышка

35

Support Silenc.*support-muffler

Support Silenc.*support-muffler

36

Supp.silenc.adm*supp-air Intake

Supp.silenc.adm*supp-air Intake

37

Plaque Att.soud*plate-brkt Weld

Plaque Att.soud*plate-brkt Weld

38

Attache Trousse*bracket-tool Kit

Attache Trousse*bracket-tool Kit

39

Направляющая троса

Направляющая троса

40

Хомут открывающийся

Хомут открывающийся

41

Заклепка 3/16

Заклепка 3/16

42

Support Boyaux *support-hose

Support Boyaux *support-hose

43

Гайка

Гайка

44

Bande *strip

Bande *strip

45

Attache Gard.co*brkt-guard Belt

Attache Gard.co*brkt-guard Belt

46

Radiateur Arr.s*rad.-front Weld. Includes 46 - 47.

Radiateur Arr.s*rad.-front Weld. Includes 46 - 47.

48

Renfort *reinforcement

Renfort *reinforcement

49

Loquet *latch

Loquet *latch

50

Support Trousse*support-tool Kit

Support Trousse*support-tool Kit

52

Support Cablage*support-cable

Support Cablage*support-cable

53

Moul.protect. *trim-protect.

Moul.protect. *trim-protect.

54

Supp.guidon Sou*supp-handle Weld.

Supp.guidon Sou*supp-handle Weld.

55

Винт

Винт

42

Support Boyaux *support-hose

Support Boyaux *support-hose

16

Заклепка 3/16

Заклепка 3/16

27

Заклепка 3/16

Заклепка 3/16

32

Заклепка 3/16

Заклепка 3/16

51

Заклепка 3/16

Заклепка 3/16

54

Supp.guidon Sou*supp-handle Weld.

Supp.guidon Sou*supp-handle Weld.
