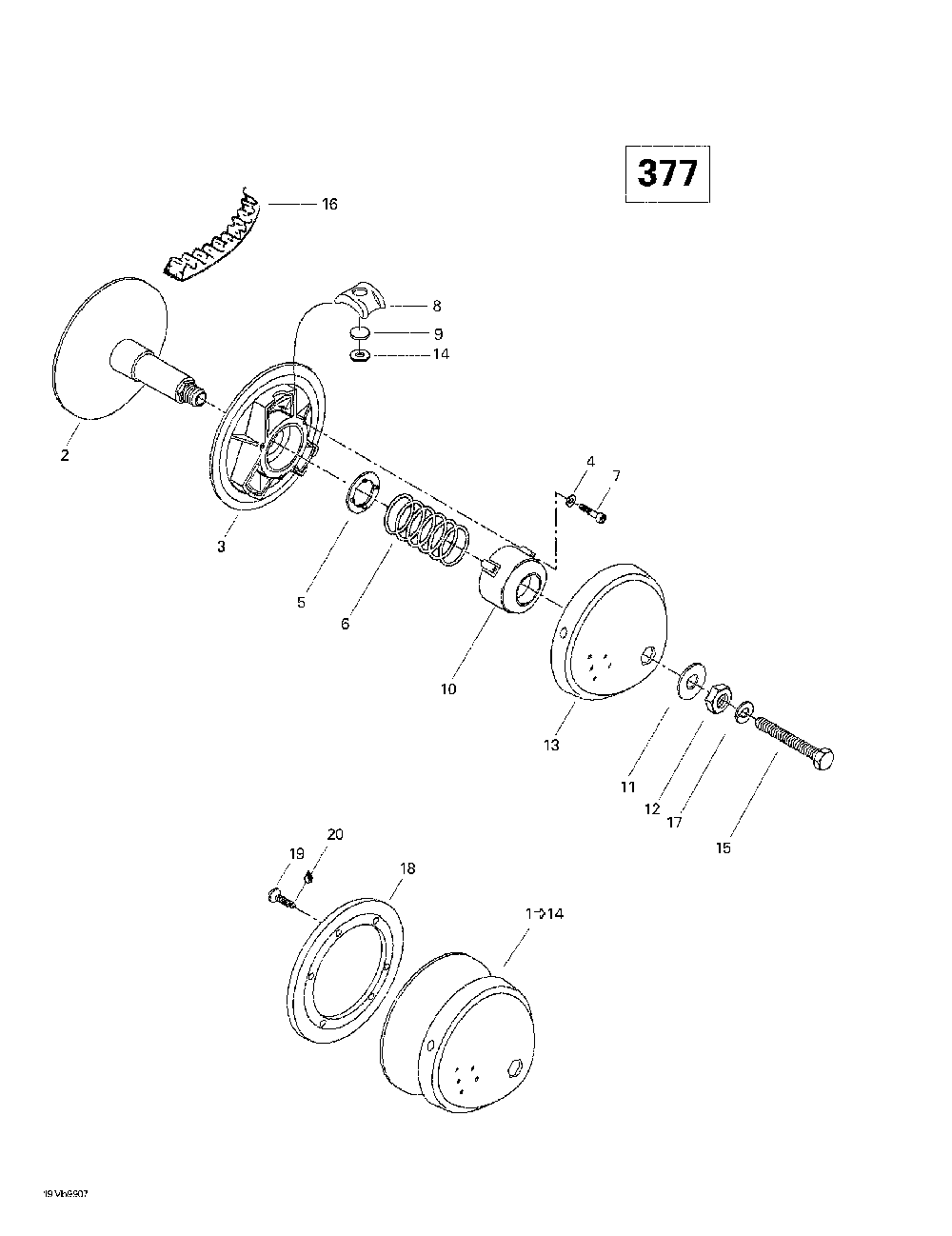

05- drive pulley (377)

Ski-Doo (Bombardier) Formula Deluxe 380/500
Ski-Doo (Bombardier)
#oem кодцена
2
417121200
Flasque Int. *flange-inner Formula Deluxe 380.
3
417121300
Flasque Ext.mob*flange-outer Formula Deluxe 380.
4
420245370
Rondelle *washer Formula Deluxe 380.
5
417116200
Rondelle Guide *washer-guide Formula Deluxe 380.
6
417118400
Ressort Rou.ble*spring Red/ble Formula Deluxe 380.
7
205064086
Screw-socket Hd.din.912 Gm6174m Formula Deluxe 380.
8
417118100
Bloc Centrifuge*block-centrifu Formula Deluxe 380.
9
417120400
Pesee Calibrat.*weigh-adjust. Formula Deluxe 380.
10
417121400
Couv.ressort *cover-spring Formula Deluxe 380.
11
417122400
Rondelle *washer Formula Deluxe 380.
12
417118300
Ecrou *nut Formula Deluxe 380.
13
417125100
Capuchon *cap Formula Deluxe 380.
14
417114500
Capsule *capsule Formula Deluxe 380.
15
417113800
Boulon *bolt-pulley Drive Formula Deluxe 380.
16
415060600
Courroie *belt-drive Formula Deluxe 380.
17
392002800
Washer-lock Helical Spring Formula Deluxe 380.
18
417222859
Cour.lancement *gear-ring Formula Deluxe 380.
19
210361686
Screw-forming Hex.hd.gm6174m Formula Deluxe 380.
20
293800005
Loctite 271 *loctite-271 Formula Deluxe 380.
