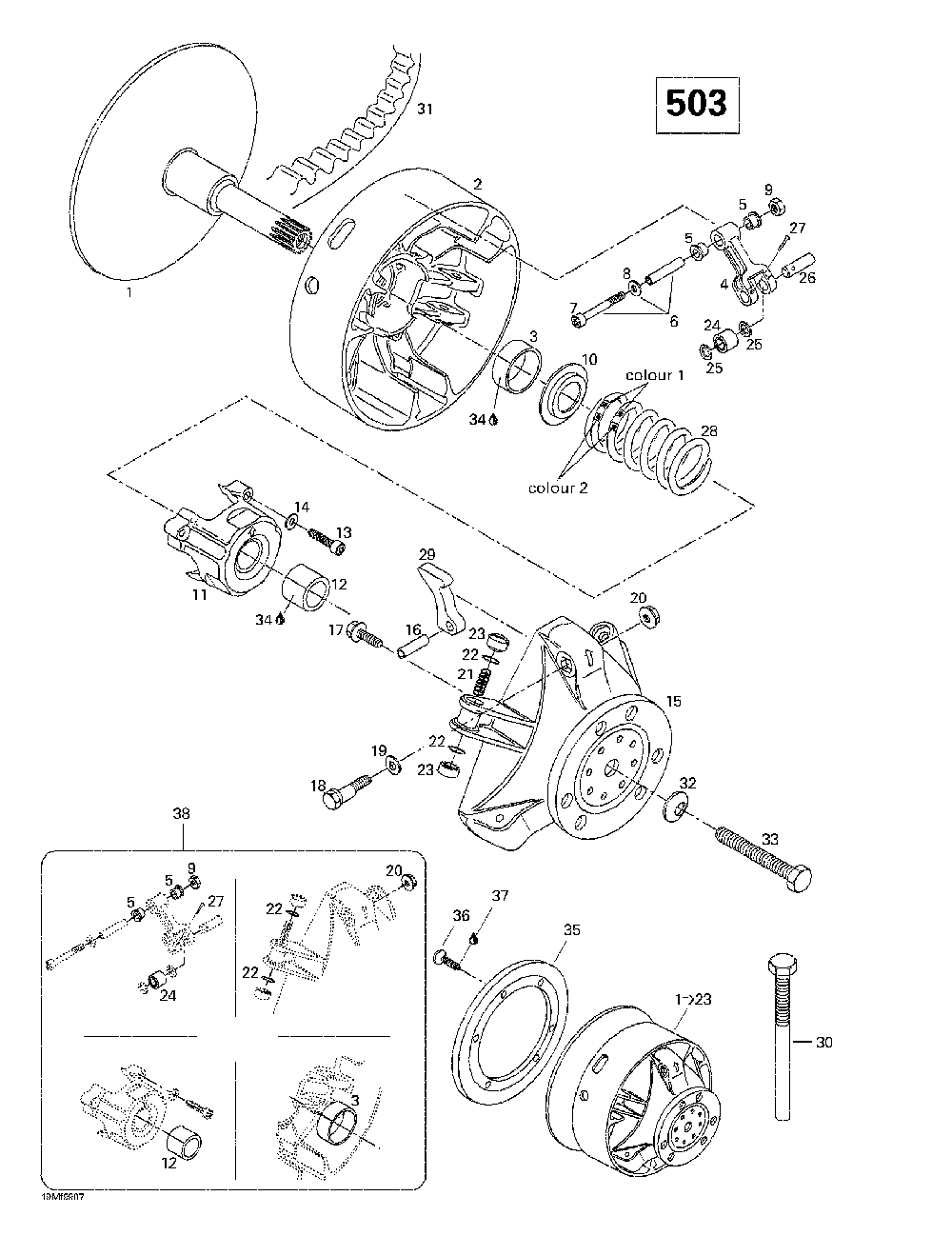

05- drive pulley (503)

Ski-Doo (Bombardier) Formula Deluxe 380/500
Ski-Doo (Bombardier)
#oem кодцена
1
417222412
Flasque Fixe Us*flange-fix.mac Formula Deluxe 500.
2
417222241
Flasque Coul.as*flange-slid.as Includes 2 - 3. Formula Deluxe 500.
3
417004201
Douille *bushing Formula Deluxe 500.
4
417222383
Levier Ass. *lever-assy Includes 4 - 5. Formula Deluxe 500.
5
417004305
Douille *bushing Formula Deluxe 500.
6
417004800
Vis Assemble *screw-ass Y Includes 6 - 8. Formula Deluxe 500.
7
205065044
Screw-socket Hd.din.912 Formula Deluxe 500.
8
234061410
Washer-flat M6 Din.125a Formula Deluxe 500.
9
232561414
Nut-stop Elastic Din.985 Formula Deluxe 500.
10
417222044
Siege Ressort *seat-spring Formula Deluxe 500.
11
417222157
Couv.ressort As*cover-spring Assy. Includes 11 - 12. Formula Deluxe 500.
12
417004501
Douille *bushing Formula Deluxe 500.
13
205064086
Screw-socket Hd.din.912 Gm6174m Formula Deluxe 500.
14
420245370
Rondelle *washer Formula Deluxe 500.
15
417222081
Cuvette Regul.a*govern.cup Assy. Formula Deluxe 500.
16
732804009
Pin-rolled Din.1481 M8 X 24 Formula Deluxe 500.
17
210361890
Screw-forming Hex.hd.black Oxide Formula Deluxe 500.
18
417005500
Vis Calibration*screw-calib. Formula Deluxe 500.
19
417005600
Rondelle *washer Formula Deluxe 500.
20
233061414
Nut-flange Hexagonal Din.6927 Formula Deluxe 500.
21
417005700
Ressort *spring Formula Deluxe 500.
22
732401030
Joint Torique *o-ring Formula Deluxe 500.
23
417223021
Glissiere *shoe-slider Formula Deluxe 500.
25
417004302
Rondelle Butee *washer-stopper Formula Deluxe 500.
26
417004309
Goupille *pin Formula Deluxe 500.
27
732958001
Goupille Fendue*pin-cotter Formula Deluxe 500.
28
414993000
Ressort Tra *spring-tra Formula Deluxe 500.
30
529007900
Extrac.poulie *puller-drive Formula Deluxe 500.
31
415060600
Courroie *belt-drive Formula Deluxe 500.
32
250200005
Washer-spring Conical Formula Deluxe 500.
33
417113800
Boulon *bolt-pulley Drive Formula Deluxe 500.
34
413703100
Loctite 609 *loctite-609 Formula Deluxe 500.
35
417222858
Cour.lancement *gear-ring Formula Deluxe 500.
36
236281684
Screw-forming Bn.hd.torx Formula Deluxe 500.
37
293800005
Loctite 271 *loctite-271 Formula Deluxe 500.
38
417006100
Ens.rep.emb. *kit-clutch Rep Formula Deluxe 500.
11
417222304
Couvercle *spring Cover Includes 11 - 12. Formula Deluxe 500.
35
415043100
Cour.lancement *gear-ring 86th Formula Deluxe 500.
