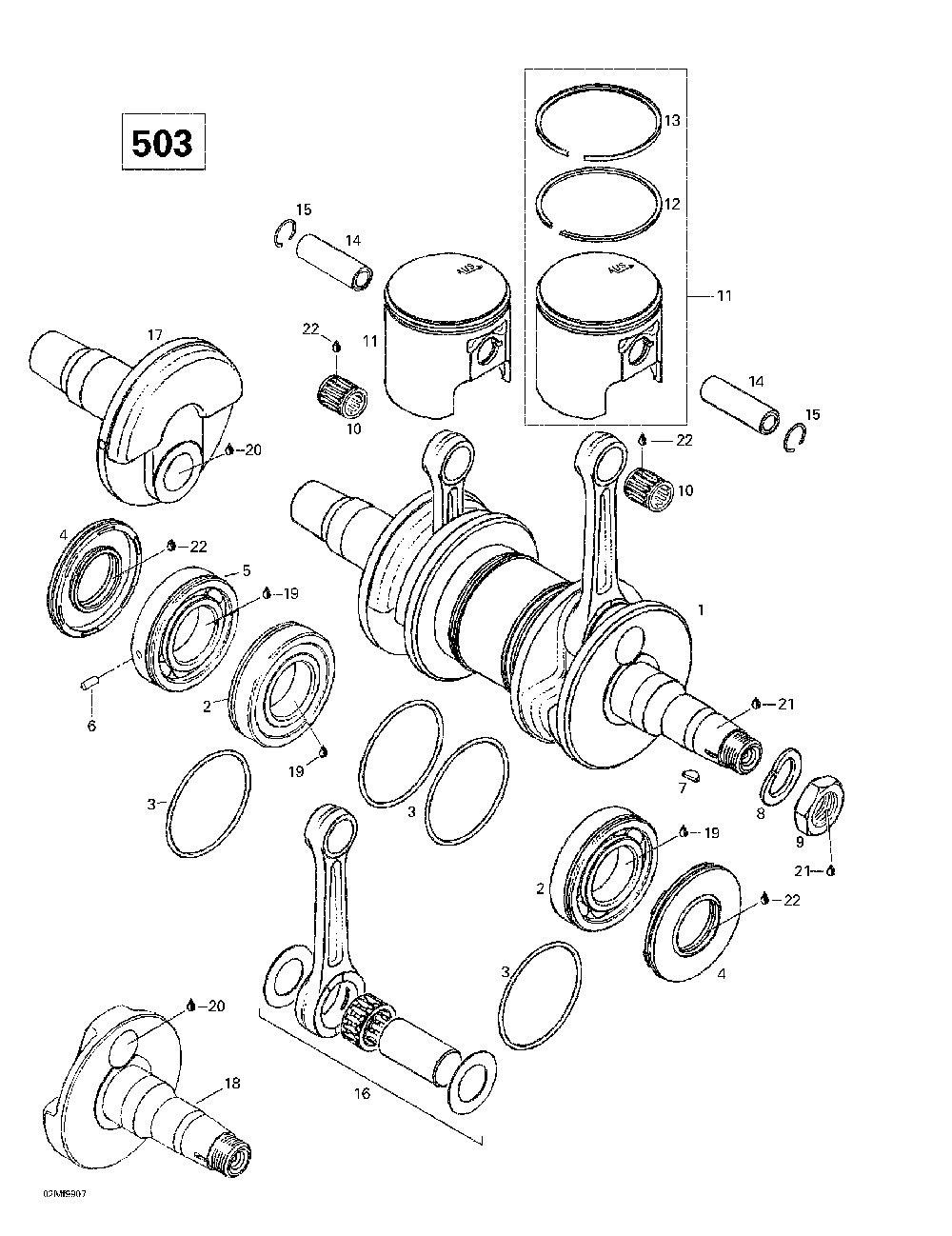

Коленчатый вал и поршни (503)

Ski-Doo (Bombardier) Formula Deluxe 380/500
Ski-Doo (Bombardier)
#oem кодцена
1
421000155
Vilebreq.refait*crank-rebuild 503 97 Includes 1 - 6. Formula Deluxe 500.
2
420832570
Roulement Bille*ball Bearing Formula Deluxe 500.
3
293300022
Joint Torique *o-ring Formula Deluxe 500.
4
420831952
Anneau Etanche *seal-oil Formula Deluxe 500.
5
420832573
Roulement Bille*ball Bearing Includes 5 - 6. Formula Deluxe 500.
6
420929972
Goupille Ressor*pin-roll Formula Deluxe 500.
7
420246055
Clavette *key-woodruff Formula Deluxe 500.
8
420945759
Rondelle-frein *washer-lock 22 Formula Deluxe 500.
9
420842234
Nut-hex.m22 X 1, 5 Formula Deluxe 500.
10
420832320
Roul.aiguille *needle Bearing Formula Deluxe 500.
11
420890070
Piston 71.91 *piston 71.91 Includes 11 - 13. Formula Deluxe 500.
420890071
Piston 72.16 *piston 72.16 Formula Deluxe 500.
420890072
Piston 72.41 *piston 72.41 Formula Deluxe 500.
12
420915850
Segment R 72.0 *ring-r 72.0 Formula Deluxe 500.
420915851
Segment R 72.25*ring-r 72.25 Formula Deluxe 500.
420915852
Segment R 72.5 *ring-r 72.5 Formula Deluxe 500.
420815201
Segment L 72.25*ring-l 72.25 Formula Deluxe 500.
420815202
Segment L 72.50*ring-l 72.50 Formula Deluxe 500.
14
420916186
Axe De Piston *pin-gudgeon Formula Deluxe 500.
15
420945735
Circlip Piston *circlip-piston Formula Deluxe 500.
16
420888394
Ens.tige Rep. *kit-rod Repair Formula Deluxe 500.
17
420818244
Demi-vileb.pto *half-crank Pto Formula Deluxe 500.
18
420819020
Demi-vileb.mag.*half-crank Mag Formula Deluxe 500.
20
413711400
Loctite 648 *loctite-648 Formula Deluxe 500.
21
293800060
Loctite 243 *loctite-243 Formula Deluxe 500.
22
413707000
Dow Corning 111*dow Corning 111 Formula Deluxe 500.
13
420815200
Segment L 72.0 *ring-l 72.0 Formula Deluxe 500.
9
420842239
Ecrou*hex Nut M22x1, 5 Formula Deluxe 500.
