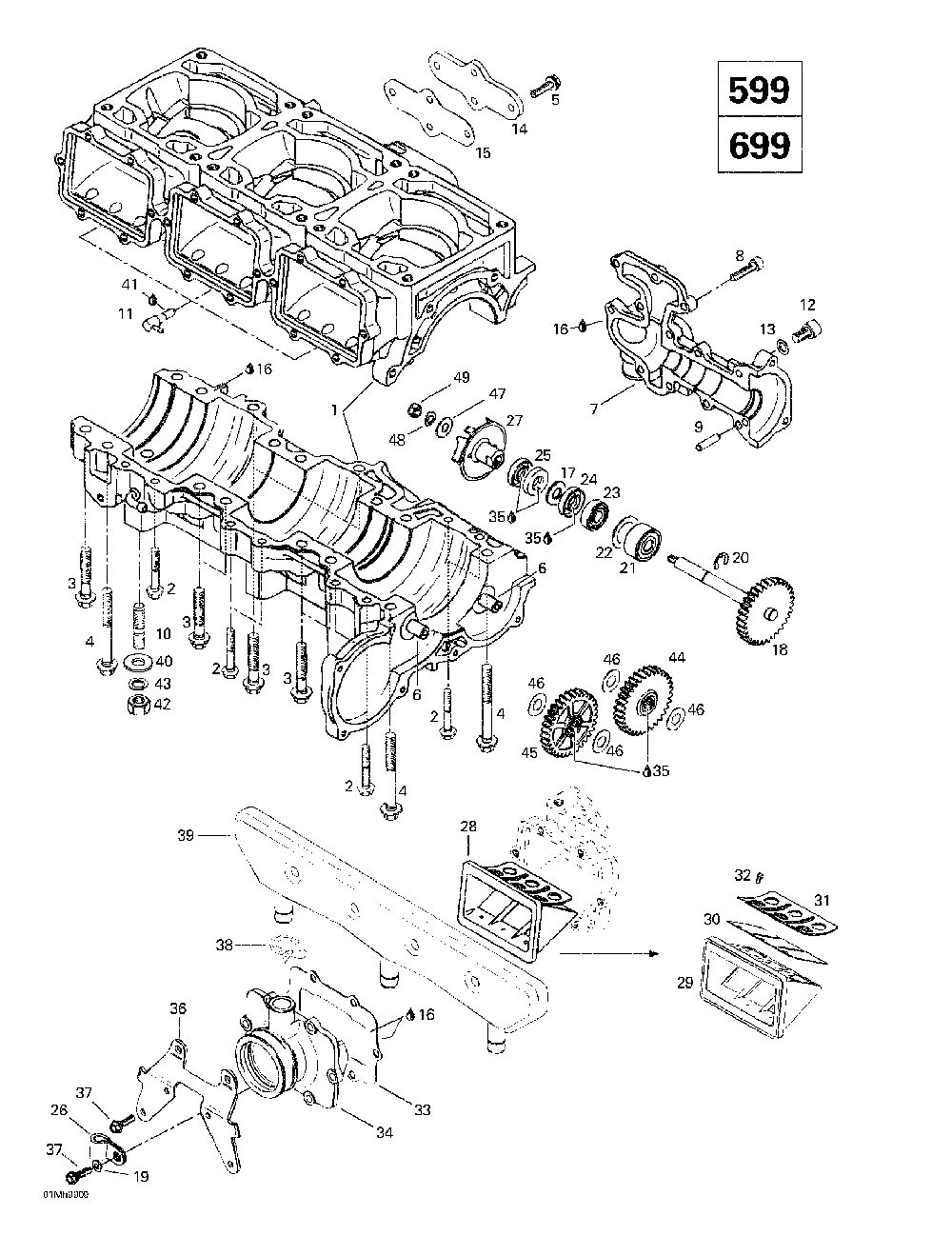

01- crankcase, reed valve, water pump (599, 699)

Ski-Doo (Bombardier) Formula III 600/700/800
Ski-Doo (Bombardier)
#oem кодцена
1
420888511
Carter Mo.po.co*crank.cover Pu Includes 1 - 15. Formula Iii 600.
420888515
Carter Mo.po.co*crank.cover Pu Formula Iii 700.
2
420941451
Screw-hex Collar M6 X 40 Formula Iii 600. Formula Iii 700.
3
420640431
Screw-hex Collar M8x45 Sw 11 Formula Iii 600. Formula Iii 700.
4
420841306
Screw-hex Collar M8x65 Sw 11 Formula Iii 600. Formula Iii 700.
5
420941250
Screw-tapping Formula Iii 600. Formula Iii 700.
6
420929935
Axe Pignon *shaft-gear Int Formula Iii 600. Formula Iii 700.
8
205062544
Screw-socket Hd.din.912 Formula Iii 600. Formula Iii 700.
9
420429230
Aiguille *dowel-pin Formula Iii 600. Formula Iii 700.
10
420940400
Stud-m10 Formula Iii 600. Formula Iii 700.
11
420956510
Soupape Retenue*valve-check Formula Iii 600. Formula Iii 700.
12
205081644
Screw-socket Hd.din.912 Formula Iii 600. Formula Iii 700.
13
420950141
Bague Etanche *ring-sealing Formula Iii 600. Formula Iii 700.
14
420810470
Couvercle Cond.*cover-duct Wat Formula Iii 600. Formula Iii 700.
15
420931300
Joint Conduit *gasket-duct Wa Formula Iii 600. Formula Iii 700.
16
413702700
Loctite 515 *loctite-515 Formula Iii 600. Formula Iii 700.
17
420927410
Rondelle 10, 3 *washer 10, 3 Formula Iii 600. Formula Iii 700. .
18
420837438
Axe+engre.pompe*shaft-gear Wa.
420837437
Axe+engre.pompe*shaft-gear Wa. Formula Iii 700.
19
420827800
Rondelle *washer Formula Iii 600. Formula Iii 700.
20
420845390
Joint Retenue *ring-retaining Formula Iii 600. Formula Iii 700.
21
420832490
Roulement Bille*ball Bearing Formula Iii 600. Formula Iii 700.
22
420944466
Cale Epaisseur *shim Formula Iii 600. Formula Iii 700.
23
420232100
Roulement Bille*ball Bearing Formula Iii 600. Formula Iii 700.
24
420230195
Anneau Etanche *seal-oil Formula Iii 600. Formula Iii 700.
25
420950400
Anneau Etanche *seal-oil Formula Iii 600. Formula Iii 700.
26
414176000
Attache Collier*open Clamp Formula Iii 600. Formula Iii 700.
27
420922440
Turbine A Eau *impeller-water Formula Iii 600.
420922445
Turbine A Eau *impeller-water Formula Iii 700.
28
420924519
Soupape Clapets*valve-reed Ass Includes 28 - 32. Formula Iii 600.
30
420924532
Lame Pedale *reed-pedal Formula Iii 600. Formula Iii 700.
31
420924635
Arret Lame Ped.*stop-reed Ped. Formula Iii 600.
420924539
Arret Lame Ped.*stop-reed Ped. Formula Iii 700.
32
420941215
Screw-oval Head M3x5 Formula Iii 600. Formula Iii 700.
33
420950292
Joint 1.00mm *gasket 1.00mm Formula Iii 600. Formula Iii 700.
34
420867841
Tubulure D Adm.*socket-intake Formula Iii 600. Formula Iii 700.
35
413707000
Dow Corning 111*dow Corning 111 Formula Iii 600. Formula Iii 700.
36
420851351
Porteur Ada.car*carrier-car.so Formula Iii 600. Formula Iii 700.
37
420841555
Screw-tapping M5 X 20 Formula Iii 600. Formula Iii 700.
38
420851360
Bride *clamp Formula Iii 600. Formula Iii 700.
39
420867792
Resonate.d Adm.*resona.intake Formula Iii 600. Formula Iii 700.
40
234001410
0asher-flat Din.125a Formula Iii 600. Formula Iii 700.
41
413711400
Loctite 648 *loctite-648 Formula Iii 600. Formula Iii 700.
42
232006414
Nut-hexagonal Din.934 Formula Iii 600. Formula Iii 700.
43
234100602
Washer-lock Spring Din.128a-a2 Formula Iii 600. Formula Iii 700.
44
420834266
Roue Dentee 32d*sprocket 32th Formula Iii 600. Formula Iii 700.
45
420834267
Roue Dentee 32d*sprocket 32th Formula Iii 600. Formula Iii 700.
46
420927952
Rondelle *washer-thrust Formula Iii 600. Formula Iii 700.
47
420227155
Rondelle *washer Formula Iii 700.
48
420845020
Rondelle Ressor*washer-spring Formula Iii 700.
49
420842042
Ecrou M6 *nut-locking M6 Formula Iii 700.
420924519
Soupape Clapets*valve-reed Ass Formula Iii 700.
28
420924514
Soupape Clapets*valve-reed Ass Includes 28 - 32. Formula Iii 600.
