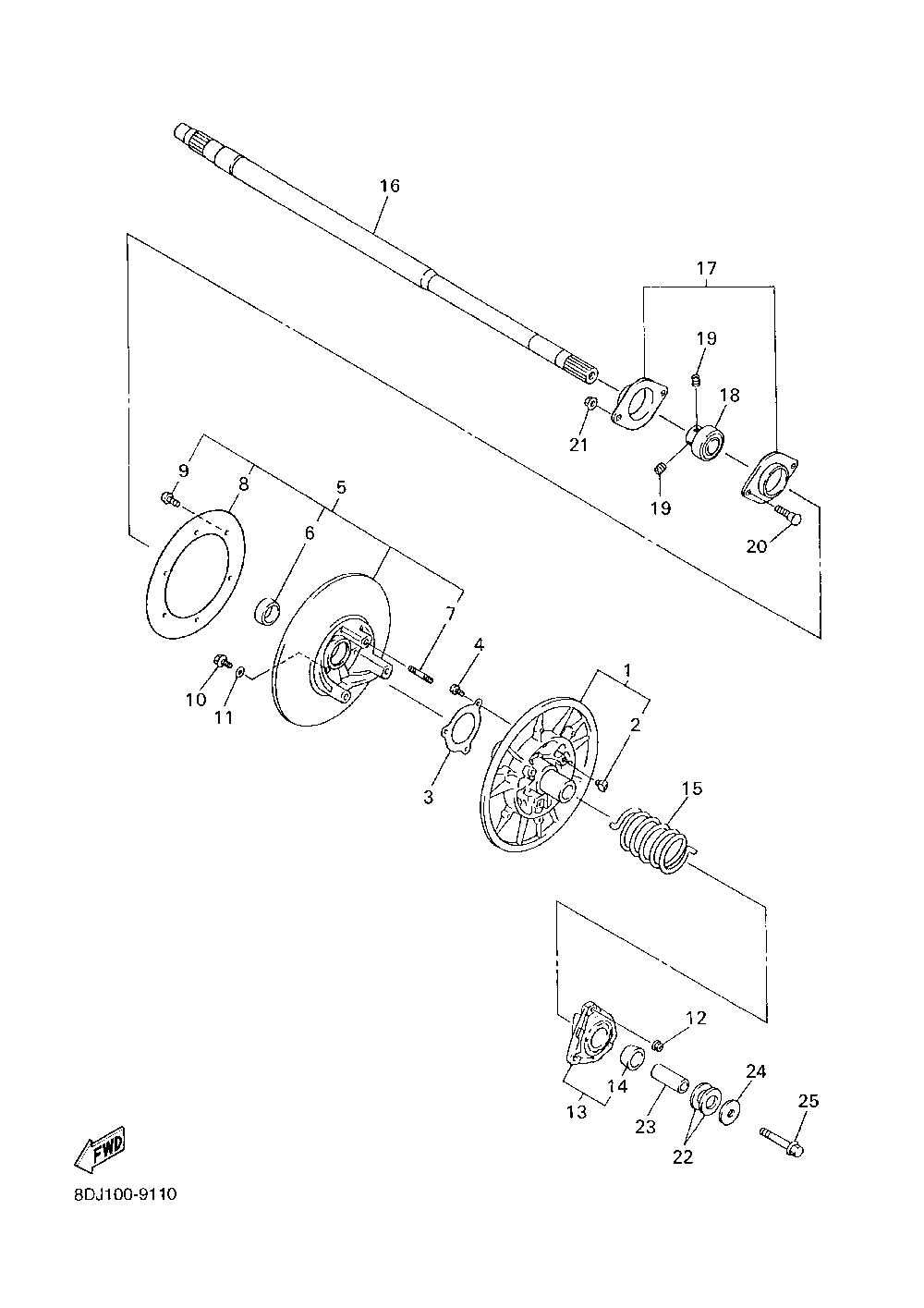

Вторичный вал

Yamaha Phazer Mountain Lite
Yamaha
#oem кодцена
1
8CR-17660-20-00
Sec Fxd Shv (usa)
2
8AV-17688-10-00
Shoe, Ramp (usa)
3
8BV-17656-00-00
Stopper, Holder (usa)
4
98907-06016-00
Bolt, Socket (usa)
5
8BU-17670-10-00
Secondary Slid. Shea (usa)
6
90384-38243-00
Bush, Bimetal Form (usa)
7
95617-08630-00
Bolt, Stud 3 (usa)
8
8CM-17675-00-00
Plate 2 (usa)
9
98507-05008-00
Screw, Panhead(jn2 (usa)
10
90105-06734-00
Bolt, Washer Based (usa)
11
90201-06431-00
Washer, Plate Ur Un (usa)
11
90201-061H1-00
Washer, Plate Ur Un (usa)
12
90179-08655-00
Nut, Spec'l Shape (usa)
13
8BV-17604-31-00
Seat Spring Set (usa)
15
90508-536A9-00
Spring, Torsion (usa)
16
8CR-17681-10-00
Shaft, Secondary (usa)
17
8CR-47631-01-00
Housing, Bearing (usa)
18
93399-99943-00
Bearing (8cj) (usa)
19
90113-06006-00
Bolt, Set (usa)
20
90109-083G2-00
Bolt (usa)
21
95707-08500-00
Nut, Flange (jn5) (usa)
22
90201-222F0-00
Washer, Plate Ur Un (usa)
22
90201-225A4-00
Washer, Plate Ur Un (usa)
23
90387-1407L-00
Collar (usa)
24
90201-14022-00
Washer, Plate (usa)
25
90105-14766-00
Bolt, Washer Based (usa)
14
90384-38243-00
Bush, Bimetal Form (usa)
