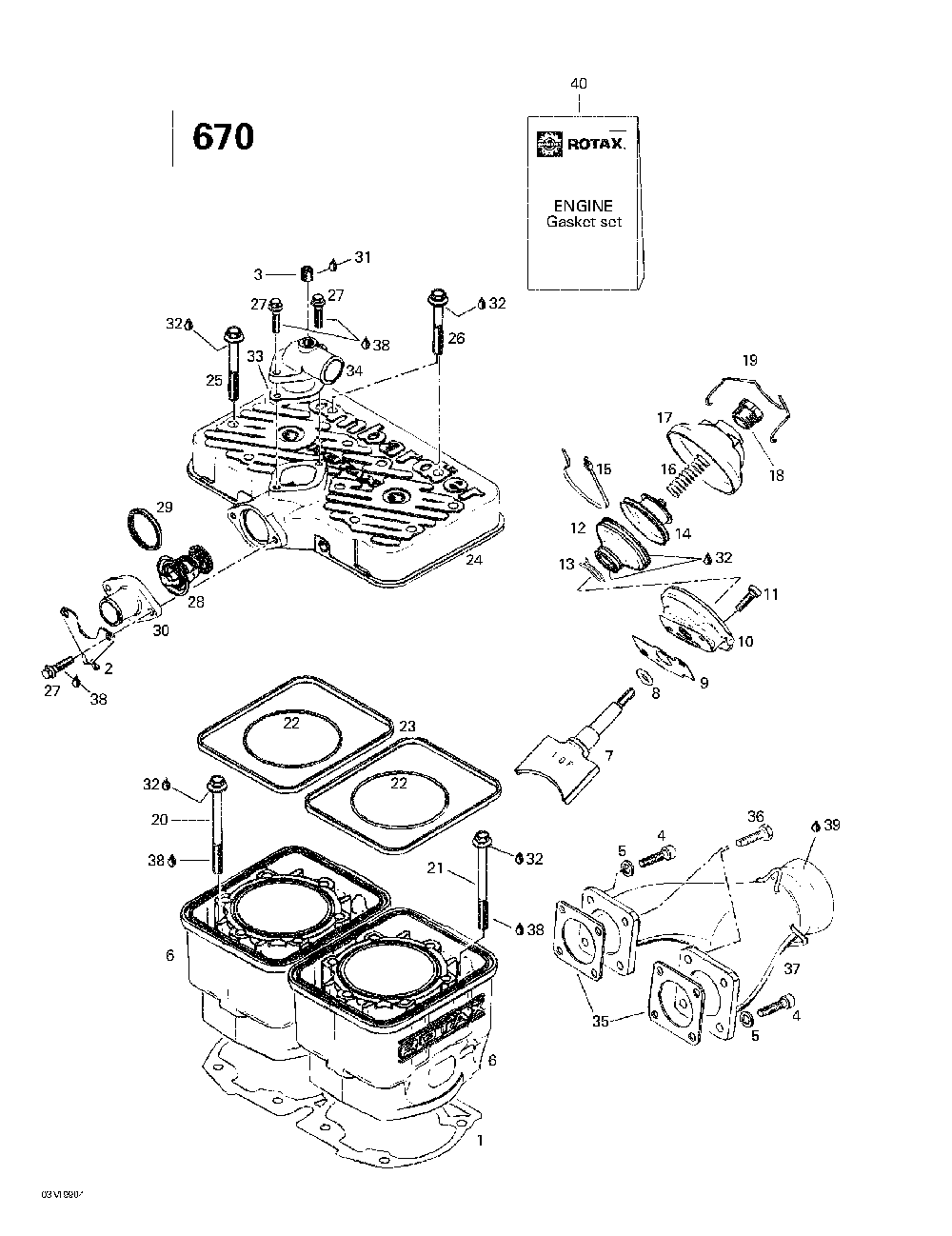

01- cylinder, exhaust manifold (670)

Ski-Doo (Bombardier) MX Z 500/670 HO

01- cylinder, exhaust manifold (670)

#

oem код

название

цена

1

Joint Double *gasket-double Mx Z 670 Ho.

Joint Double *gasket-double Mx Z 670 Ho.

Joint Double *gasket-double Mx Z 670 Ho.

Joint Double *gasket-double Mx Z 670 Ho.

Joint Double *gasket-double Mx Z 670 Ho.

Joint Double *gasket-double Mx Z 670 Ho.

Joint Double *gasket-double Mx Z 670 Ho.

Joint Double *gasket-double Mx Z 670 Ho.

Joint Double *gasket-double Mx Z 670 Ho.

Joint Double *gasket-double Mx Z 670 Ho.

Joint Double *gasket-double Mx Z 670 Ho.

Joint Double *gasket-double Mx Z 670 Ho.

2

Plaque *plate-int.sil. Mx Z 670 Ho.

Plaque *plate-int.sil. Mx Z 670 Ho.

3

Screw-plug 1/8-27 Npt Mx Z 670 Ho.

Screw-plug 1/8-27 Npt Mx Z 670 Ho.

4

Screw-socket Hd.din.912 Mx Z 670 Ho.

Screw-socket Hd.din.912 Mx Z 670 Ho.

5

Washer-lock Black Din.127b Mx Z 670 Ho.

Washer-lock Black Din.127b Mx Z 670 Ho.

6

Cylindre Refait*cyl.-resleeving 670 Mx Z 670 Ho.

Cylindre Refait*cyl.-resleeving 670 Mx Z 670 Ho.

7

Soupape Echap. *valve-exhaust Mx Z 670 Ho.

Soupape Echap. *valve-exhaust Mx Z 670 Ho.

8

Joint Torique *o Ring Mx Z 670 Ho.

Joint Torique *o Ring Mx Z 670 Ho.

9

Joint *gasket Mx Z 670 Ho.

Joint *gasket Mx Z 670 Ho.

10

Boitier *housing-valve Mx Z 670 Ho.

Boitier *housing-valve Mx Z 670 Ho.

11

Screw-socket M6 X 16 Mx Z 670 Ho.

Screw-socket M6 X 16 Mx Z 670 Ho.

12

Manchon *bellows Mx Z 670 Ho.

Manchon *bellows Mx Z 670 Ho.

13

Bride *clamp Mx Z 670 Ho.

Bride *clamp Mx Z 670 Ho.

14

Soupape Echapp.*valve-exhaust Mx Z 670 Ho.

Soupape Echapp.*valve-exhaust Mx Z 670 Ho.

15

Tie Rap *tie-rap 279x3, 6mm Mx Z 670 Ho.

Tie Rap *tie-rap 279x3, 6mm Mx Z 670 Ho.

16

Ressort *spring Mx Z 670 Ho.

Ressort *spring Mx Z 670 Ho.

17

Couvercle Soup.*cover-valve Mx Z 670 Ho.

Couvercle Soup.*cover-valve Mx Z 670 Ho.

19

Pince A Ressort*clip-spring Mx Z 670 Ho.

Pince A Ressort*clip-spring Mx Z 670 Ho.

20

Screw-hex. M8 X 100 Mx Z 670 Ho.

Screw-hex. M8 X 100 Mx Z 670 Ho.

21

Screw-hex Collar M8 X 105 Mx Z 670 Ho.

Screw-hex Collar M8 X 105 Mx Z 670 Ho.

22

Joint Torique *o Ring Mx Z 670 Ho.

Joint Torique *o Ring Mx Z 670 Ho.

23

Bague Etanche *rubber Ring Mx Z 670 Ho.

Bague Etanche *rubber Ring Mx Z 670 Ho.

24

Culasse Violet *head-cyl.vio. Mx Z 670 Ho.

Culasse Violet *head-cyl.vio. Mx Z 670 Ho.

25

Screw-hex Collar M8x65 Sw 11 Mx Z 670 Ho.

Screw-hex Collar M8x65 Sw 11 Mx Z 670 Ho.

26

Collar-hex. Screw M8x56, 5 Mx Z 670 Ho.

Collar-hex. Screw M8x56, 5 Mx Z 670 Ho.

27

Screw-hex.m6 X 20 Mx Z 670 Ho.

Screw-hex.m6 X 20 Mx Z 670 Ho.

28

Thermostat *thermostat Mx Z 670 Ho.

Thermostat *thermostat Mx Z 670 Ho.

29

Bague Etanche *ring-sealing Mx Z 670 Ho.

Bague Etanche *ring-sealing Mx Z 670 Ho.

30

Raccord Sortie *bent Outlet Socket Mx Z 670 Ho.

Raccord Sortie *bent Outlet Socket Mx Z 670 Ho.

31

Loctite 518 *loctite-518 Mx Z 670 Ho.

Loctite 518 *loctite-518 Mx Z 670 Ho.

32

Dow Corning 111*dow Corning 111 Mx Z 670 Ho.

Dow Corning 111*dow Corning 111 Mx Z 670 Ho.

33

Joint *gasket Mx Z 670 Ho.

Joint *gasket Mx Z 670 Ho.

34

Raccord Sortie *bent Outlet Socket Mx Z 670 Ho.

Raccord Sortie *bent Outlet Socket Mx Z 670 Ho.

35

Joint *gasket Mx Z 670 Ho.

Joint *gasket Mx Z 670 Ho.

36

Screw-hexagonal M6 Mx Z 670 Ho.

Screw-hexagonal M6 Mx Z 670 Ho.

37

Collet Echapp. *manifold-exh. Mx Z 670 Ho.

Collet Echapp. *manifold-exh. Mx Z 670 Ho.

38

Loctite 243 *loctite-243 Mx Z 670 Ho.

Loctite 243 *loctite-243 Mx Z 670 Ho.

39

Enduit Etanche *sealant Mx Z 670 Ho.

Enduit Etanche *sealant Mx Z 670 Ho.

40

Ens.joint Etanc*set-gasket Mx Z 670 Ho.

Ens.joint Etanc*set-gasket Mx Z 670 Ho.

6

Cylindre + Chem*cylinder-w.sle Mx Z 670 Ho.

Cylindre + Chem*cylinder-w.sle Mx Z 670 Ho.

18

Vis Ajustement *screw-adjuster Mx Z 670 Ho.

Vis Ajustement *screw-adjuster Mx Z 670 Ho.

21

Collar Hex. Screw M8*105 Sw11 Mx Z 670 Ho.

Collar Hex. Screw M8*105 Sw11 Mx Z 670 Ho.
