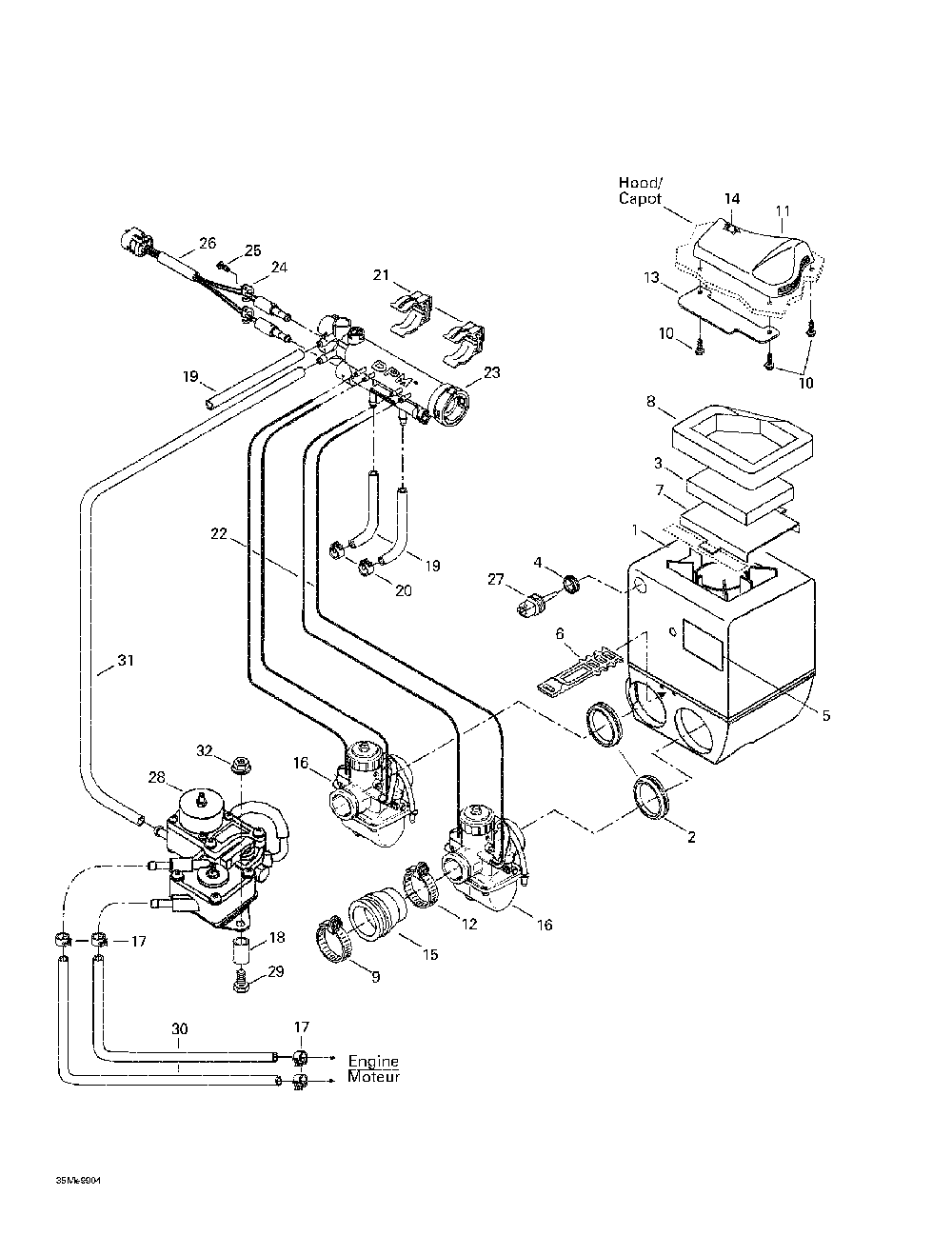

Система забора воздуха

Ski-Doo (Bombardier) MX Z 500/670 HO
Ski-Doo (Bombardier)
#oem кодцена
1
508000026
Silenc.adm.ass.*intake-air Ass Includes 1 - 8. Mx Z 500.
508000022
Silenc.adm.ass.*intake-air Ass Mx Z 670 Ho.
2
570048900
Adap.admis.vm38*adap-air Vm-38 Mx Z 500.
570049000
Adap.admis.vm40*adap-air Vm-40 Mx Z 670 Ho.
3
415014800
Фильтр воздушный
4
570065500
Anneau *grommet Mx Z 670 Ho.
5
516000130
Etiquette Att. *caution-label
6
570069700
Loquet *latch
7
517283900
Решетка впуска
8
415105900
Mousse Ext. *foam-lower
9
414532800
Хомут
10
243141640
Винт
11
572077900
Couvercle Adm. *cover-intake
12
293650156
Bride Serrage *clamp-gemi Mx Z 500.
13
517298800
Deflecteur *deflector Mx Z 500.
517292800
Deflecteur *deflector Mx Z 670 Ho.
14
414972600
Фильтр воздушный
15
570067900
Adap.carb.vm-38*adap-carb.vm38 Mx Z 500.
512059047
Adapteur Carb. *adaptor-carb. Mx Z 670 Ho.
16
403138521
Carb.vm-38 *carb-vm-38 Mx Z 500.
403138522
Carb.vm-38 *carb-vm-38 Mx Z 500.
17
414415200
Bride A Ressort*clamp-spring Mx Z 670 Ho.
18
512058934
Entretoise *spacer Mx Z 670 Ho.
19
415080200
Boyau Polyure *polyurethane Hose Mx Z 670 Ho.
20
414554800
Bride A Ressort*clamp-spring Mx Z 670 Ho.
21
512058919
Support *support Mx Z 670 Ho.
22
404161880
Boyau *hose Mx Z 670 Ho.
23
512059571
Collecteur Pres*manifold-press Includes 23 - 26. Mx Z 670 Ho.
24
415061600
Barrure Electr.*lock-solenoid Mx Z 670 Ho.
25
241140060
Screw-pt.hex.flange K40 X 10 Mx Z 670 Ho.
26
515175219
Cablage Collect*harness-collector Mx Z 670 Ho.
27
270600000
Capteur Temp. *sensor-air Mx Z 670 Ho.
28
415109000
Pompe A Air *pump-air Mx Z 670 Ho.
29
207053044
Screw-hex.cap Din.931 Mx Z 670 Ho.
30
415079800
Boyau 1/4 I.d. *hose-1/4 I.d. Mx Z 670 Ho.
31
270000306
Boyau 4.5 Mm *hose-4.5 Mm Mx Z 670 Ho.
32
233251414
Nut-flange Elastic Din.6926 Mx Z 670 Ho.
5
516001191
Etiquette Inst.*inst-label
414532800
Collet *collar Mx Z 670 Ho.
