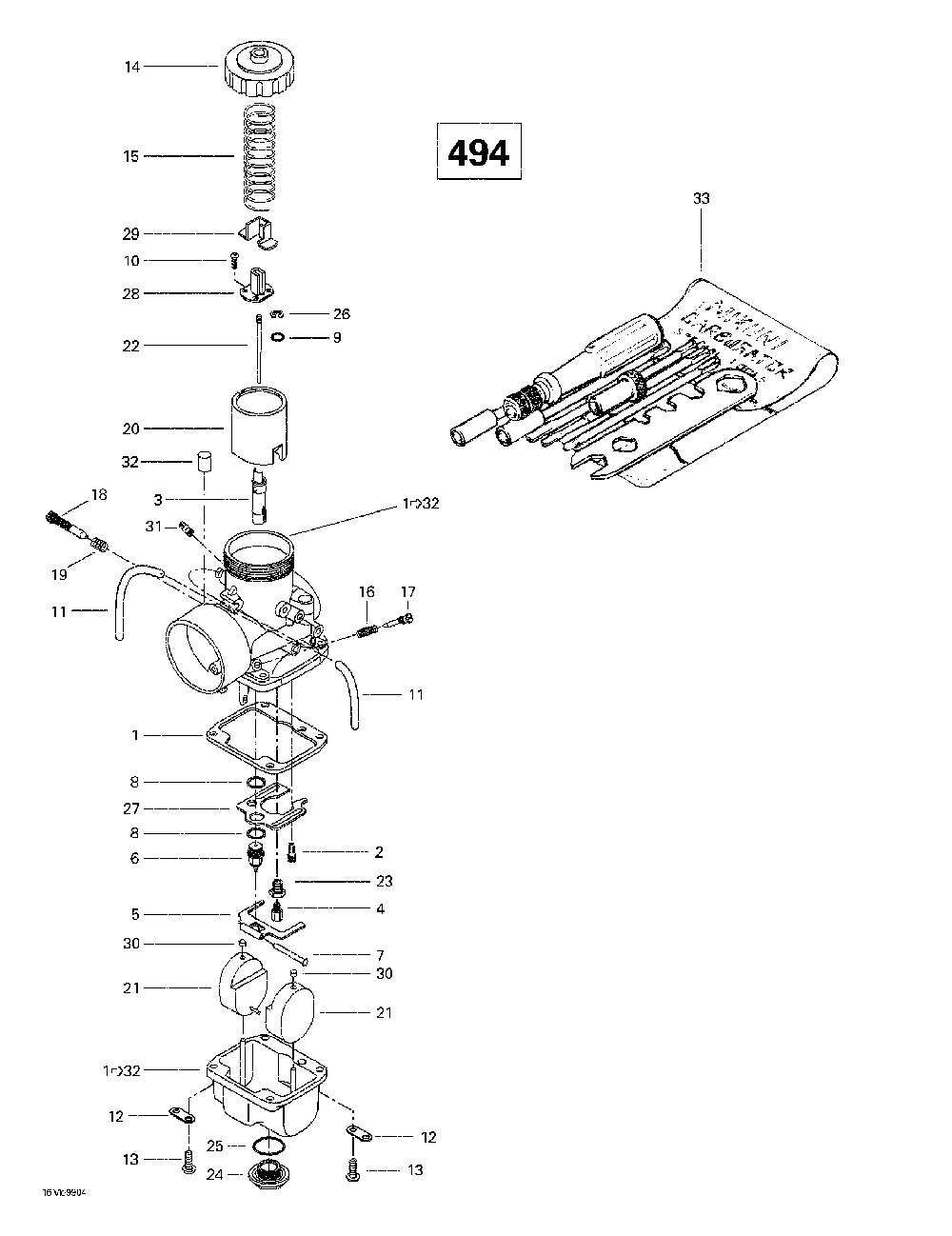

02- carburetors (494)

Ski-Doo (Bombardier) MX Z 500/670 HO

02- carburetors (494)

#

oem код

название

цена

1

Carb.vm-38 *carb-vm-38 Includes 1 - 32. Mx Z 500.

Carb.vm-38 *carb-vm-38 Includes 1 - 32. Mx Z 500.

Carb.vm-38 *carb-vm-38 Mx Z 500.

Carb.vm-38 *carb-vm-38 Mx Z 500.

1

Joint *gasket Mx Z 500.

Joint *gasket Mx Z 500.

2

Gicleur Ralenti*jet-pilot 50 Mx Z 500.

Gicleur Ralenti*jet-pilot 50 Mx Z 500.

3

Gicleur Aiguil.*jet Needle Mx Z 500.

Gicleur Aiguil.*jet Needle Mx Z 500.

4

Gicleur Mj 300 *jet-main 300 Mx Z 500.

Gicleur Mj 300 *jet-main 300 Mx Z 500.

Gicleur Mj 280 *jet-main 280 Mx Z 500.

Gicleur Mj 280 *jet-main 280 Mx Z 500.

5

Levier Flotteur*lever-float Mx Z 500.

Levier Flotteur*lever-float Mx Z 500.

6

Pointeau Vs 1.5*valve Needle Mx Z 500.

Pointeau Vs 1.5*valve Needle Mx Z 500.

7

Goupille Levier*pin-lever Mx Z 500.

Goupille Levier*pin-lever Mx Z 500.

8

Rondelle Siege *washer-seat Mx Z 500.

Rondelle Siege *washer-seat Mx Z 500.

9

Joint Tampon *packing Mx Z 500.

Joint Tampon *packing Mx Z 500.

10

Vis W.rondelle*screw-with Washer Mx Z 500.

Vis W.rondelle*screw-with Washer Mx Z 500.

11

Boyau *hose Mx Z 500.

Boyau *hose Mx Z 500.

12

Plaque *plate Mx Z 500.

Plaque *plate Mx Z 500.

13

Screw-w/lock *screw-w/lockwasher Mx Z 500.

Screw-w/lock *screw-w/lockwasher Mx Z 500.

14

Couvercle Carb.*top-mix.chamb. Mx Z 500.

Couvercle Carb.*top-mix.chamb. Mx Z 500.

15

Ressort *spring Mx Z 500.

Ressort *spring Mx Z 500.

16

Ressort *spring Mx Z 500.

Ressort *spring Mx Z 500.

17

Vis Air *screw-air Mx Z 500.

Vis Air *screw-air Mx Z 500.

18

Vis Ajustement*screw-idle Speed Mx Z 500.

Vis Ajustement*screw-idle Speed Mx Z 500.

19

Ressort *spring Mx Z 500.

Ressort *spring Mx Z 500.

20

Tiroir Acc.3.0 *piston-val.3.0 Mx Z 500.

Tiroir Acc.3.0 *piston-val.3.0 Mx Z 500.

21

Flotte *float Mx Z 500.

Flotte *float Mx Z 500.

22

Aiguille *needle Mx Z 500.

Aiguille *needle Mx Z 500.

23

Vis Guide *screw-guide Mx Z 500.

Vis Guide *screw-guide Mx Z 500.

24

Vis Bouchon *screw-drain Plug Mx Z 500.

Vis Bouchon *screw-drain Plug Mx Z 500.

25

Rondelle *washer Mx Z 500.

Rondelle *washer Mx Z 500.

26

Rondelle E *ring-e Mx Z 500.

Rondelle E *ring-e Mx Z 500.

28

Connecteur *connector Mx Z 500.

Connecteur *connector Mx Z 500.

29

Couvercle *cover Mx Z 500.

Couvercle *cover Mx Z 500.

30

Capuchon *cap Mx Z 500.

Capuchon *cap Mx Z 500.

31

Raccord *nipple Mx Z 500.

Raccord *nipple Mx Z 500.

32

Filtre *filter Mx Z 500.

Filtre *filter Mx Z 500.

33

Trousse Outils *tool Kit Mx Z 500.

Trousse Outils *tool Kit Mx Z 500.
